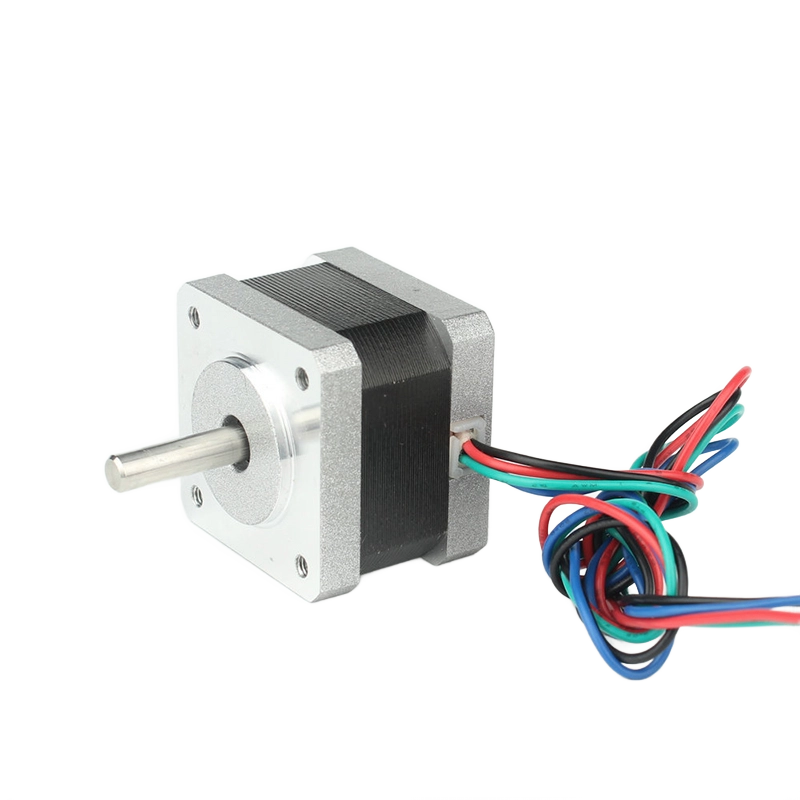

Balancing torque, speed, and precision in motion control systems remains a persistent engineering challenge. Specifying the wrong motor architecture often leads to inflated bill of materials costs or system underperformance. Engineers frequently default to standard 2-phase motors based purely on static holding torque specifications. In practice, this default choice routinely results in mid-band resonance issues, missed steps during acceleration, or unacceptable torque drop-off at higher RPMs. This guide provides a technical evaluation framework to compare the mechanical differences, performance trade-offs, and implementation realities between 2-phase and 3-phase stepper architectures. By understanding the internal geometry and electrical dynamics of each system, engineers can specify components that precisely match their application's load inertia and motion profiles.
Architectural Difference: 2-phase motors utilize two coils (typically yielding a 1.8° step angle), while a 3 phase stepper motor utilizes three coils (typically yielding a 1.2° step angle), fundamentally altering the magnetic flux and step resolution.
Performance Trade-off: 2-phase motors deliver excellent low-speed torque and cost-efficiency, whereas 3-phase motors maintain higher torque at elevated speeds and significantly reduce vibration.
The 0.9° Alternative: High-resolution 2-phase motors (0.9° step angle) offer an alternative for precision but lack the resonance-damping and high-speed torque advantages of a true 3-phase system.
Implementation Cost: Upgrading to 3-phase requires specialized, often more expensive drives and complex wiring (Star vs. Delta configurations), impacting the overall system budget.
Form Factor Parity: Standardized sizes, such as the 57mm frame (NEMA 23), allow for mechanical drop-in replacements, though electrical architectures must be entirely overhauled.

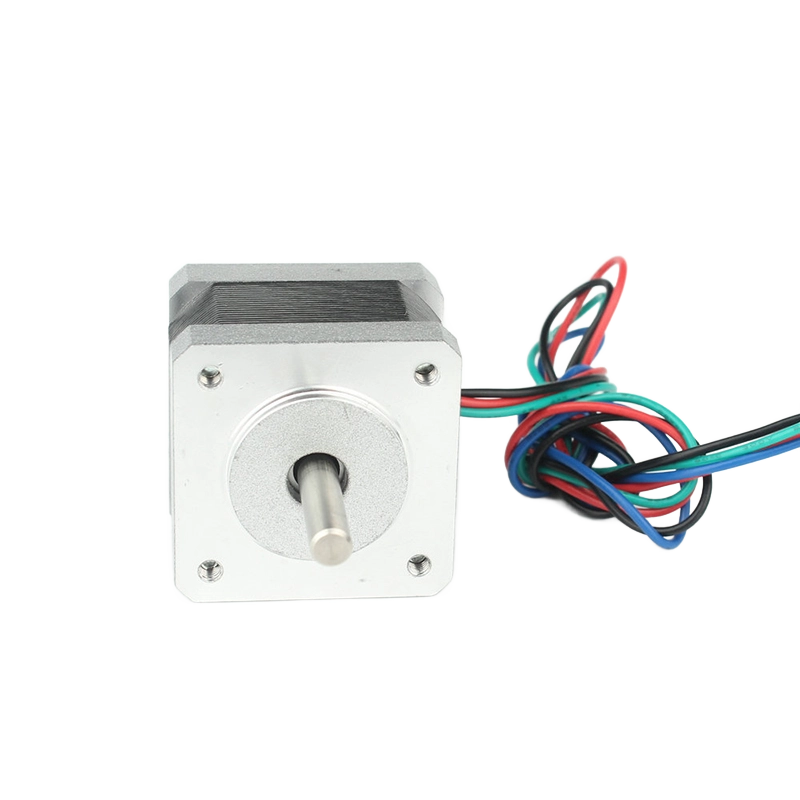

Establishing baseline success criteria for motor selection requires understanding how internal geometry dictates external performance. The physical arrangement of stator teeth and rotor magnets directly controls step resolution, torque ripple, and high-speed capability. When you tear down these motors on the bench, the differences in winding configuration become immediately apparent and explain the distinct performance envelopes.
A standard 2-phase hybrid stepper motor typically utilizes an 8-pole stator construction. The two phases alternate magnetic polarity across these poles, pulling the rotor's permanent magnet teeth into alignment. The physical offset between the stator teeth and the rotor teeth creates the discrete stepping action. This alternating two-phase current generates a specific magnetic flux pattern that inherently produces a noticeable torque ripple as the rotor jumps from one magnetic detent to the next. You can feel this cogging effect simply by turning the unpowered shaft by hand.
In contrast, a 3 Phase Stepper Motor utilizes a stator with 6 poles or multiples of 3. This alters the stator tooth alignment relative to the rotor. The addition of the third phase distributes the magnetic flux across more overlapping stator poles simultaneously. By overlapping the magnetic fields of three distinct phases, the motor smooths out the transition between steps. This distributed flux drastically reduces the torque ripple effect during rotation, resulting in a much smoother mechanical output shaft motion that translates directly to better surface finishes in machining applications.
The standard step angle for most industrial 2-phase motors is 1.8 degrees, equating to 200 full steps per revolution. The 3-phase architecture naturally yields a 1.2-degree step angle, translating to 300 full steps per revolution. This 50% increase in native mechanical resolution provides immediate improvements in positioning capability without relying on electronic interpolation. When driving a lead screw, that extra mechanical resolution means tighter tolerances before you even touch the driver dip switches.
Some engineers opt for a 0.9-degree step angle (400 steps/rev) 2-phase alternative to achieve higher resolution. While this doubles the mechanical resolution compared to a standard 1.8-degree motor, it introduces significant electrical trade-offs. The 0.9-degree motors require tighter internal tolerances and typically exhibit higher winding inductance. This higher inductance severely limits the rate at which current can enter the coils, causing a much faster torque drop-off as motor speed increases. You might gain static precision, but you lose dynamic punch.
Native mechanical resolution dictates the baseline capability of any high precision micro stepper motor before electronic microstepping is applied. A motor with a smaller native step angle inherently possesses a stiffer holding position and lower step-to-step error. Relying entirely on microstepping to achieve precision on a 1.8-degree motor often results in empty resolution, where the motor receives step pulses but fails to overcome static friction to physically move the load.
Mapping specific technical features to operational outcomes allows for accurate component specification. Evaluating torque curves, resonance profiles, and positional accuracy reveals distinct operational envelopes for each motor type. We need to look past the headline holding torque numbers and examine how these motors behave under actual dynamic loads.
At zero or very low RPMs, 2-phase motors often maintain a marginal advantage in absolute full-step holding torque. Their internal geometry allows for maximum magnetic saturation at a standstill, making them highly effective for applications requiring strong holding force without continuous movement. If you are building a clamping mechanism or a slow-moving indexer, that low-end grunt is exactly what you need.
However, high-speed performance heavily favors the 3-phase architecture. Stepper motors lose torque as speed increases due to back electromotive force (EMF) and coil inductance limiting current rise times. 3-phase motors experience significantly less inductance-induced torque degradation at higher speeds. The overlapping phase currents allow the magnetic field to rotate more smoothly and efficiently, making them suitable for faster traverse rates and higher RPM continuous operation. When you need to rapid-traverse a gantry across a wide work area, the 3-phase motor won't stall out halfway across.
Torque stability under microstepping also differs greatly. When a 2-phase motor is heavily microstepped, it can experience significant incremental torque loss—sometimes up to 30-40% of its rated holding torque per microstep. A 3-phase motor exhibits a much flatter torque curve when microstepped. The three-phase current vectors combine to create a more uniform rotating magnetic field, preserving a higher percentage of usable torque across all microstep positions.
Mid-band resonance is a common mechanical frequency failure point in 2-phase systems. This phenomenon occurs when the step pulse frequency matches the natural resonant frequency of the motor and load combination. It causes severe vibration, stalling, or missed steps, typically manifesting at medium speeds. Engineers often have to program complex acceleration ramps or add mechanical dampers to bypass these resonant zones, complicating the control software.
The 3-phase architecture inherently dampens resonance. Because the torque ripple is lower and the step angle is smaller, the energy injected into the system at each step is reduced and distributed more evenly. This provides smoother continuous motion, which is critical for optical inspection equipment, medical fluid pumps, or high-surface-finish CNC applications where vibration directly degrades output quality. You can literally hear the difference; a 3-phase motor runs with a smooth hum rather than the aggressive growl typical of 2-phase units.
Applying extreme microstepping (e.g., 256 microsteps per full step) on 2-phase motors yields diminishing returns. Due to unavoidable manufacturing imperfections in the stator windings and magnetic materials, the actual physical position of the rotor rarely matches the theoretical microstep position perfectly. This results in a loss of incremental torque and positional accuracy, rendering extreme microstepping useful primarily for noise reduction rather than true positioning precision.
A 3-phase motor handles microstepping more efficiently. Its smaller native step angle requires less electronic interpolation to reach a target resolution. Furthermore, the three-phase driver generates smoother sine wave current tracking, allowing the rotor to follow the magnetic flux vectors with greater fidelity and lower cyclical error. This means when you command a specific microstep position, the rotor actually goes there and holds it rigidly.
Standard industrial footprints simplify mechanical design, but electrical architectures dictate the required control hardware. The 57mm frame size is a standard benchmark for evaluating upgrade paths. Knowing that you can swap motors without redesigning your entire machine chassis saves countless hours of engineering time.
The 57mm two-phase stepper motor is ubiquitous across 3D printing, basic automation cells, and desktop CNC machinery. Its widespread adoption is driven by a vast ecosystem of readily available replacement parts, inexpensive drivers, and well-documented open-source configurations. For applications where moderate speed and acceptable vibration levels meet project requirements, this motor provides unmatched component availability and ease of replacement. You can source these motors and compatible drives from dozens of suppliers globally.
When an application demands higher speed or lower vibration, upgrading to a 57mm three-phase stepper motor offers distinct mechanical advantages. It features the exact same mounting flange, bolt hole pattern, and shaft diameter as its 2-phase counterpart. This allows for a direct mechanical drop-in upgrade without redesigning brackets or couplings. You unbolt the old motor, bolt on the new one, and the mechanical assembly is done.
However, mechanical parity does not equal electrical compatibility. The electrical integration requires a complete swap of the driver hardware. A 3-phase motor demands a dedicated 3-phase drive capable of generating the correct 120-degree phase-separated currents. The wiring harness must also be updated to accommodate the different lead configurations. You cannot simply splice the new motor into the old wiring loom.
Upgrading motor architectures introduces specific integration challenges that engineers must mitigate during the design phase. Drive compatibility, wiring topologies, and thermal management require careful consideration. Failing to account for these electrical differences will result in blown drives or motors that refuse to spin.
A 3-phase stepper motor cannot be driven by a standard 2-phase driver. Attempting to do so will result in failure to rotate and potential hardware damage. 3-phase motors utilize different internal winding connections, typically configured in either Star (Wye) or Delta arrangements. Star configurations generally provide better high-speed torque characteristics due to lower phase inductance, while Delta configurations can draw higher currents for increased low-speed torque. You must verify which internal configuration your specific motor uses before wiring it to the drive.
Cabling complexity increases slightly with 3-phase systems. While a standard 2-phase bipolar motor uses a simple 4-lead configuration, 3-phase motors typically utilize 3-lead or 6-lead configurations depending on whether the Star/Delta connection is made internally or externally. Selecting the appropriate drive requires matching the motor's specific phase current and inductance ratings to the drive's output capabilities. Always use shielded twisted pair cables for the motor leads to prevent EMI from interfering with nearby logic circuits.
Heat generation differs between the two architectures under continuous duty cycles. 2-phase motors often run hotter at high speeds due to higher iron losses and less efficient current utilization within the larger step angles. The constant switching of high currents across highly inductive coils generates significant thermal energy. If you are running a 2-phase motor near its maximum RPM continuously, you will likely need forced air cooling or large heatsinks.
3-phase motors generally run cooler at high speeds. The distributed magnetic flux and smoother current waveforms result in lower iron losses and more efficient electromechanical energy conversion. This cooler operation extends component lifespan, particularly the internal bearings, and is highly beneficial when motors are mounted in enclosed environments with limited airflow. A cooler motor also means less thermal expansion in the mechanical drive train, preserving positional accuracy over long operating shifts.
Selecting the correct motor requires aligning mechanical capabilities with application demands. Use the following criteria to determine the appropriate architecture. Do not over-specify if a simpler solution works, but do not under-specify and compromise machine performance.
Specify 2-phase motors for applications characterized by strict budget limitations and low-speed, high-holding-torque requirements. They excel in simple point-to-point positioning tasks where acoustic noise, mid-band resonance, and high-speed torque drop-off are not critical factors. Standard conveyor indexing, basic material handling, and low-speed actuators are ideal use cases. If the machine moves slowly and lives in a noisy factory environment, the 2-phase motor is the logical choice.
Specify 3-phase motors for applications requiring high-speed continuous motion and strict low-vibration performance. They are the correct choice for camera sliders, semiconductor manufacturing equipment, and optical inspection stages. When an application demands better performance than a 2-phase stepper but the budget does not permit a full closed-loop servo system, the 3-phase stepper provides the necessary bridge in performance. If surface finish or optical clarity is on the line, make the upgrade.
Feature | 2-Phase Stepper Motor | 3-Phase Stepper Motor |
|---|---|---|
Standard Step Angle | 1.8° (200 steps/rev) | 1.2° (300 steps/rev) |
High-Speed Torque | Rapid drop-off | Maintains higher torque |
Vibration & Resonance | Prone to mid-band resonance | Inherently smooth, low resonance |
Drive Complexity | Standard, widely available | Requires dedicated 3-phase drive |
Best Application Fit | Low-speed, high holding torque | High-speed, low vibration, precision |
While 2-phase motors remain the undisputed standard for general-purpose motion control, the 3-phase stepper motor acts as a critical bridge between standard steppers and high-end servo systems. Engineers must base their final decision on specific torque-speed curve requirements and vibration tolerances rather than static holding torque alone.
Calculate your exact load inertia to determine the required dynamic torque for your specific motion profile.
Review and compare the torque-to-speed pull-out curves of both motor types at your target operating RPM.
Evaluate your system's sensitivity to vibration and mid-band resonance to see if mechanical damping is sufficient or if a motor upgrade is required.
Consult with a motion control specialist to ensure proper drive matching and power supply sizing for your selected motor architecture.
A: No. A 3-phase motor requires a dedicated 3-phase drive. The drive must generate correct three-phase alternating current waveforms with 120-degree phase separation, which a standard 2-phase bipolar driver cannot produce.
A: Yes, natively. The 1.2° step angle provides 300 steps per revolution compared to the 1.8° (200 steps) of a 2-phase motor. This translates to better baseline mechanical resolution and lower step-to-step error before microstepping is applied.
A: Generally, no. Standard frame sizes like NEMA 23 (57mm) share the exact same mounting flange, bolt pattern, and shaft diameter across both 2-phase and 3-phase designs, allowing for easy mechanical replacement.
A: 2-phase motors have a larger step angle and higher torque ripple as the rotor moves between magnetic detents. This injects more energy into the system at specific frequencies, easily triggering mid-band resonance and mechanical vibration.
A: The 3-phase stepper motor is superior for high-speed applications. Its lower phase inductance and smoother magnetic flux rotation allow it to maintain significantly more usable torque at higher RPMs compared to a 2-phase motor.
