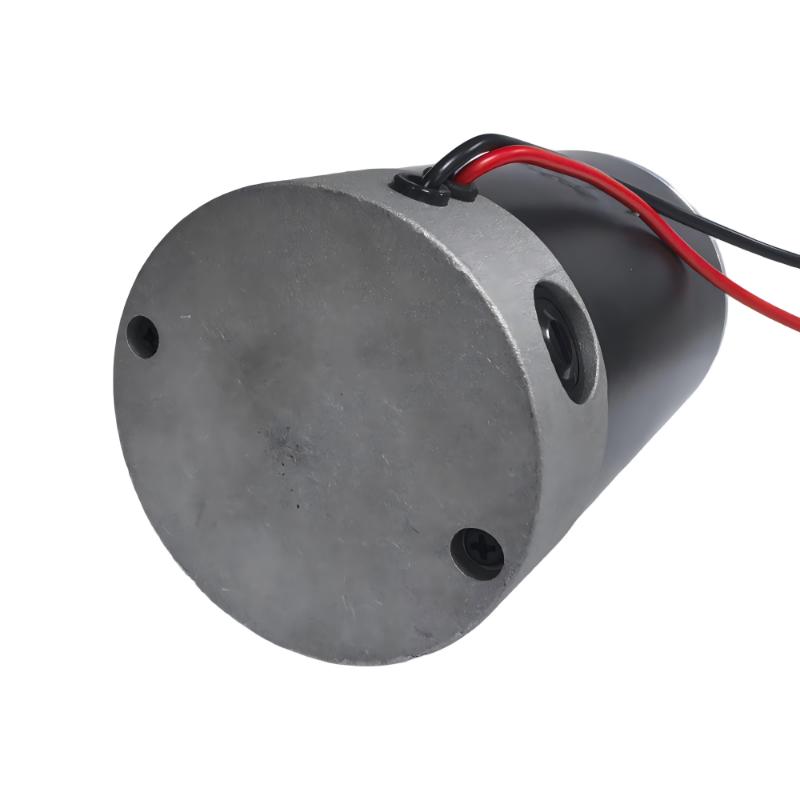

Engineering and procurement teams constantly face the friction of balancing initial component costs against mechanical wear and control architecture simplicity. Despite the rapid adoption of brushless technology, traditional brushed designs remain foundational in modern engineering. They dominate specific sectors due to unmatched simplicity and cost-effectiveness. This guide provides a rigorous technical evaluation of these motors. We detail their inherent mechanical advantages, operational limitations, and specific application criteria. You will learn exactly how to justify their specification in new product designs without relying on complex external drive circuitry. We strip away the marketing noise to focus on raw mechanical performance, thermal dynamics, and integration requirements for real-world applications.
Control Simplicity: Brushed motors require no external drive circuitry for basic operation; they can be wired directly to a DC power source, drastically reducing system complexity.
Cost Efficiency: The absence of complex electronic speed controllers (ESCs) and simpler manufacturing processes result in significantly lower upfront capital expenditures.
Performance Profile: They deliver exceptional low-speed torque and immediate responsiveness, outperforming many sensorless brushless alternatives in low-RPM scenarios.
Maintenance & Environmental Limitations: Physical friction dictates a finite lifespan, and open commutator designs are susceptible to environmental contamination, restricting their optimal use to intermittent-duty or highly protected environments.
The physical relationship between the stationary stator and the rotating armature defines motor operation. The stator houses permanent magnets or field windings to create a stationary magnetic field. The rotor, or armature, contains copper windings that carry electrical current. Copper commutator segments sit on the rotor shaft. Carbon or precious metal brushes press against these segments. These brushes facilitate the physical transfer of electrical current from a stationary power source to the moving rotor windings. When you tear down a standard unit, you immediately notice the heavy reliance on physical contact points. The armature must be precisely balanced to prevent excessive vibration against the stator housing. The brush assembly requires specific spring tension to maintain contact without causing excessive drag. We often see premature failure when this spring tension is incorrectly calibrated at the factory.
To understand the material science behind these components, consider the following brush compositions commonly used in industrial applications:
Brush Material | Conductivity | Friction Coefficient | Ideal Application |
|---|---|---|---|
Carbon Graphite | Moderate | Low | Standard industrial motors, power tools |
Electrographite | High | Medium | High-voltage, heavy-duty traction motors |
Copper Graphite | Very High | High | Low-voltage, high-current automotive starters |
Silver Graphite | Maximum | Low | Precision instrumentation, signal transmission |
Mechanical switching of current direction drives continuous rotation. As the rotor turns, brushes slide across different commutator segments. This physical brush-to-commutator contact reverses the current flow in the armature windings. The reversal creates continuous magnetic repulsion and attraction against the stator. This physical commutation is the root cause of the motor's greatest advantages. It enables direct-to-DC operation and extreme simplicity. However, it also creates primary disadvantages like friction, mechanical wear, and electrical noise. The timing of this commutation is fixed by the physical placement of the brushes relative to the magnetic field. Advanced designs sometimes allow for slight brush timing adjustments to optimize performance in a single rotational direction, but most standard units use neutral timing for equal bidirectional performance.
Direct-to-DC power capability simplifies system architecture. You can run a Brushed Motor using a simple on/off switch, a relay, or a basic variable voltage source. This eliminates the need for complex, microprocessor-based external drive circuitry. You avoid integrating electronic speed controllers or variable frequency drives. This reduction in components yields significant space and weight savings. It also reduces potential points of failure within the control system. When designing a backup pump system, for example, you want the fewest possible components between the battery and the pump. A direct-wired relay provides a level of fail-safe reliability that complex silicon-based controllers simply cannot match in harsh environments.
Consider the standard wiring sequence for a basic bidirectional control circuit:
Route the primary DC power supply through a high-amp fuse block.
Connect the positive and negative leads to a Double-Pole Double-Throw (DPDT) relay or switch.
Wire the output terminals of the DPDT switch directly to the motor's positive and negative terminals.
Actuate the switch to reverse polarity and change the direction of rotation instantly.
Manufacturing economics favor brushed designs. Mature manufacturing lines produce these motors efficiently. They utilize simpler winding processes and standard raw materials. This drives down initial capital expenditure for component sourcing. High-volume consumer electronics rely heavily on these unit economics. Commercial goods and automotive sub-systems benefit from the reduced upfront investment. Lower component costs directly improve product margins. When you are specifying components for a production run of 100,000 units, saving five dollars per motor by eliminating the need for an external controller translates to massive capital savings. The tooling and assembly processes for these units have been optimized over decades, resulting in highly predictable yield rates and minimal manufacturing defects.
The torque delivery curve of a brushed design is highly advantageous. It provides maximum torque at stall conditions. Responsiveness at low RPMs is exceptional and immediate. Brushless alternatives often suffer from a low-speed "cogging" effect. Sensorless brushless motors may experience startup delays while determining rotor position. Brushed designs bypass these issues entirely, offering smooth and powerful low-speed performance. This characteristic is absolutely critical in applications like winches, hoists, and heavy-duty traction drives where the load must be moved from a dead stop with maximum force. The linear relationship between current and torque makes these units incredibly easy to model and predict during the mechanical engineering phase.
Raw mechanical components offer distinct environmental resilience. Delicate silicon-based electronic controllers often fail in harsh conditions. High radiation or electromagnetically noisy environments destroy complex microprocessors. A basic brushed setup lacks these sensitive external controllers. This allows the core mechanical motor to operate reliably where advanced electronics would immediately fail. We have seen these units deployed in high-radiation environments near nuclear reactors where standard solid-state drives degrade within days. The purely mechanical nature of the commutation means that as long as the physical integrity of the brushes and commutator is maintained, the unit will continue to spin regardless of external electromagnetic pulses or severe temperature fluctuations.
Friction-induced degradation is unavoidable. Carbon brushes and the copper commutator wear down over prolonged operation. Carbon dust accumulates within the motor housing as brushes degrade. This conductive dust can cause micro-shorts and degrade overall performance. Engineers must calculate expected operating hours against application duty cycles. This determines if the inherent wear rates remain acceptable for the product's intended lifespan. You cannot specify this technology for a 24/7 continuous operation conveyor belt and expect it to survive. The maintenance schedule must account for periodic brush inspection and replacement. If the housing design prevents easy access to the brush assembly, the entire unit becomes a disposable wear item.
Maximum speed ceilings are lower compared to brushless counterparts. High RPMs induce a phenomenon known as "brush bounce." Mechanical vibration causes the brushes to momentarily lose physical contact with the commutator. This separation leads to severe electrical arcing. Power loss occurs, and wear accelerates dramatically. High-speed applications generally require alternative motor technologies. When a rotor exceeds 10,000 RPM, the centrifugal forces and slight imbalances amplify the bounce effect. The arcing not only destroys the copper segments but also generates massive amounts of heat that can melt the brush shunts and destroy the spring tensioners.
External contaminants severely impact open-frame designs. Dust, mud, water, and oil can enter the housing. Debris on the commutator disrupts critical electrical contact. This contamination causes destructive arcing and erratic operation. In severe cases, abrasive particles physically destroy the brush assembly. Proper shielding is mandatory in dirty environments. If you deploy an unsealed unit in an agricultural setting, chaff and dirt will quickly pack into the housing, binding the rotor and causing a catastrophic thermal event. Sealing the unit is possible, but it directly impacts the next major limitation: thermal management.
Heat generation occurs internally at the rotor. The moving armature generates thermal energy during operation. This internal heat generation makes dissipation difficult. The outer casing does not directly absorb the primary heat load. Continuous high-load duty cycles often require forced-air cooling. Without adequate cooling, internal temperatures will degrade winding insulation. The heat must transfer from the rotor, across the air gap, to the stator, and finally to the outer casing. This thermal path is highly inefficient. If you seal the housing to prevent dust ingress, you trap this heat inside, drastically reducing the continuous power rating of the unit.
Electrical arcing occurs naturally at the brush-commutator interface. This arcing generates radio frequency interference and EMI. Mechanical friction noise also occurs as brushes slide across commutator bar gaps. Sensitive environments demand strict noise control. Specifying a low noise brushed DC motor is critical for medical equipment, lab analyzers, and luxury automotive cabin actuators. The EMI generated can easily disrupt nearby analog sensors or unshielded communication buses like CAN or RS485. You must implement aggressive filtering at the motor terminals to prevent this noise from propagating back through the power supply lines.
Standardized frame sizes offer significant engineering advantages. They simplify mounting configurations in legacy system upgrades. A Series 50 brushed DC motor serves medium-duty, cost-optimized commercial applications. It fits perfectly into office automation equipment, vending machines, and small power tools. Conversely, an 80mm brushed DC motor handles heavy-duty requirements. It provides high torque for space-constrained industrial actuators, agricultural machinery, and robotics. Sticking to standard NEMA or metric frame sizes ensures that you can source replacement units from multiple vendors, protecting your supply chain from single-source vulnerabilities.
Engineers must analyze trade-offs between customization and standard availability. Ordering custom windings or specific shaft lengths optimizes performance. Unique brush compositions, like carbon silver or copper graphite, alter lifespan and conductivity. However, utilizing widely available standard footprints accelerates time-to-market. Off-the-shelf viability reduces lead times and simplifies supply chain logistics. If your application requires a specific torque curve, a custom winding might be necessary. But you must weigh the performance gain against the increased minimum order quantities and extended lead times associated with custom manufacturing runs.
Selecting the right motor requires evaluating duty cycles, upfront costs, and environmental risks. Use the following criteria to guide your specification process.
Application Requirement | Brushed Motor Suitability | Alternative Recommendation |
|---|---|---|
Continuous 24/7 Operation | Poor (High brush wear) | Brushless (BLDC) |
Intermittent Duty Cycle | Excellent (Cost-effective) | N/A |
Strict Upfront Cost Limits | Excellent (Low component cost) | N/A |
Explosive/Hazardous Environment | Unsafe (Commutator arcing) | Brushless (BLDC) or Pneumatic |
Maximum Low-Speed Torque | Excellent (High stall torque) | Sensored BLDC |
High-Vibration Environment | Moderate (Brush bounce risk) | Stepper or BLDC |
Specify these motors for applications running in short, infrequent bursts. Brush wear remains negligible over the product's lifespan in intermittent duty scenarios. Automotive power seats, windshield wipers, and valve actuators are perfect examples. Cost-bound disposable products also benefit greatly. Single-use medical devices and low-cost consumer toys align motor life with target product lifespan. Simple direct-drive systems, like emergency backup pumps wired to batteries, avoid control complexity entirely. In these scenarios, the mechanical limitations are never reached before the product itself is retired or replaced.
Continuous, 24/7 industrial operations require brushless technology. Hazardous or explosive atmospheres present a high risk of ignition from commutator arcing. Class I, Division 1 environments strictly prohibit open arcing components. Applications demanding zero maintenance or zero particulate emissions disqualify brushed designs. Cleanrooms and fully submerged housings necessitate fully sealed brushless alternatives. If your specification sheet mandates a 50,000-hour maintenance-free lifespan, you must immediately pivot away from physical commutation and accept the higher cost of solid-state control.
Mechanical design must account for eventual maintenance. Accessible motor housings enable quick inspection. Engineers should design access ports for brush replacement. This prevents full system disassembly when brushes wear down. Replaceable brush cartridges extend the usable life of the host machine significantly. When designing the mounting bracket, ensure that the rear of the motor remains unobstructed. Field technicians will need clearance to remove the end cap, unhook the tension springs, and slide the new carbon blocks into the guides.
Hardware-level mitigation techniques suppress electromagnetic noise. Install bypass capacitors across motor terminals. Connect capacitors from the terminals to the motor case. Utilize ferrite beads and chokes on power leads. Physical shielding isolates electromagnetic noise from nearby microcontrollers. Keep sensor wires and communication buses physically separated from motor power lines. A standard mitigation circuit involves soldering a 0.1uF ceramic capacitor directly across the positive and negative terminals, with two additional 0.01uF capacitors bridging each terminal to the metal chassis to shunt high-frequency noise to ground.
Protecting the commutator from moisture and dust ingress is vital. IP-rated housings prevent solid and liquid contamination. Rubber boots shield exposed shaft exits. However, sealing solutions trap internal heat. Engineers must balance the need for environmental protection with adequate thermal dissipation requirements. If you must seal the unit to IP67 standards, you must derate the continuous power output by at least thirty percent to prevent the internal windings from exceeding their thermal class ratings.
Weigh your duty cycle requirements against your budget constraints before finalizing your motor selection.
Calculate your exact startup torque requirements to ensure the motor can move the load from a dead stop.
Map out the expected operating hours per day to determine if brush wear will exceed the product's intended lifespan.
Design your control circuit using simple relays or switches to maximize the cost-saving benefits of direct-to-DC operation.
Implement hardware-level EMI filtering at the motor terminals if your system includes sensitive microcontrollers or analog sensors.
A: Brush lifespan varies heavily based on load, speed, and duty cycle. In intermittent applications, they can last the lifetime of the product. Under continuous moderate load, brushes typically require replacement between 2,000 and 5,000 operating hours.
A: Yes. One of the primary advantages of this technology is direct-to-DC operation. You only need a basic mechanical switch or relay to connect the motor terminals directly to a battery.
A: Carbon dust accumulation, worn brushes, and a pitted commutator cause power loss. This degradation increases electrical resistance at the contact point, which generates excess heat and reduces overall motor efficiency.
A: Generally, no. Continuous operation accelerates physical brush wear and generates sustained internal heat. For 24/7 industrial applications, brushless motors are highly recommended due to their lack of friction-wearing components.
A: Request precision-balanced rotors and high-quality bearings to reduce mechanical vibration. Specify precious metal brushes instead of carbon for lower friction. Ensure the manufacturer optimizes the commutator slot design to minimize brush bounce.
A: Carbon graphite brushes handle high currents and offer long life but generate more acoustic noise and dust. Precious metal brushes produce very little noise and electrical interference, making them ideal for low-current, sensitive applications.
A: Brushed motors provide maximum torque at stall and smooth rotation at very low speeds without complex electronics. Sensorless brushless motors often experience cogging or stuttering at low RPMs until they detect rotor position.
