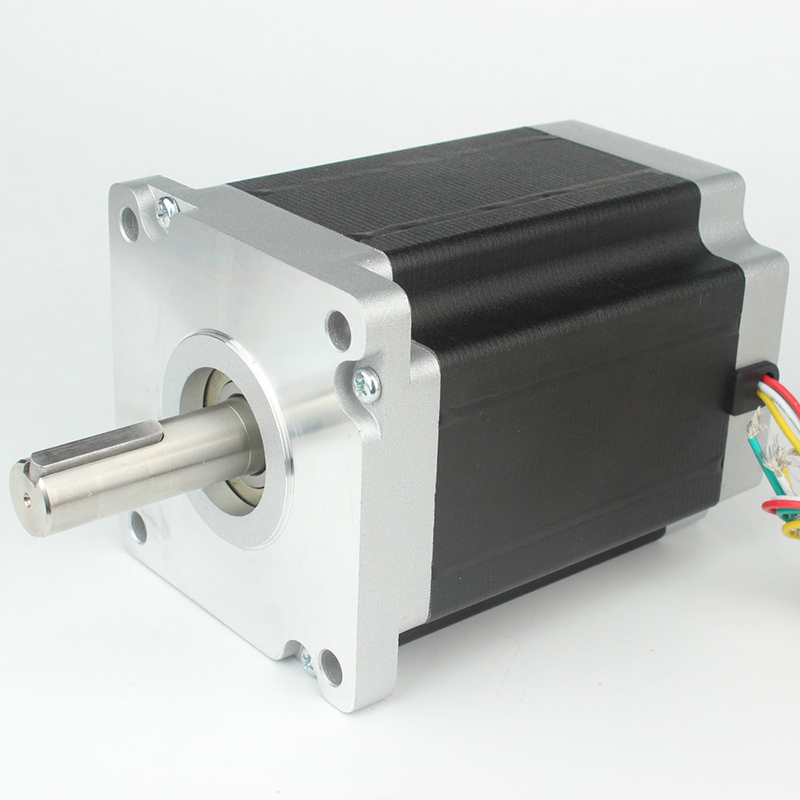

Modern engineering teams face a strict balancing act. You must achieve precise motion control without over-engineering the system. Many designers default to complex servo architectures. However, this choice often inflates project budgets unnecessarily. You need a reliable, cost-effective alternative. We can view the DC stepper motor as a foundational digital motion system. It transforms digital electrical pulses directly into exact mechanical movements. You do not need to install complicated feedback loops or external sensors.
This article provides a transparent, engineering-focused evaluation of stepper motors. We cut through standard marketing claims. You will learn exactly where these motors excel and where they fail. We also show how you can justify their selection within your specific motion control architecture.
Precision Without Feedback: DC stepper motors offer 3-5% non-cumulative step error using cost-effective open-loop control.
Zero-Speed Dominance: They provide maximum holding torque when stationary, functioning as an electronic brake.
Application Sweet Spot: Ideal for high-torque, low-speed applications (typically under 2000 RPM) where position repeatability is critical.
Longevity: Brushless by design, their operational lifecycle is typically limited only by bearing wear (often exceeding 10,000 hours).
Trade-offs: They draw continuous current regardless of load, leading to lower energy efficiency and higher thermal output compared to BLDC servos.
Stepper motors operate purely on physical electromagnetics. A standard motion control design features 200 discrete steps per revolution. This internal hardware geometry creates exactly 1.8 degrees of movement per pulse. Industry standards rate this step accuracy between 3% and 5%.
Crucially, this inherent error does not accumulate over multiple rotations. If the rotor slightly misses perfect alignment on step one, the magnetic field corrects it on step two. You achieve consistent precision over millions of cycles. The hardware physically prevents compounding positional drift.
Engineers define holding torque as a motor's ability to lock a mechanical load in place. The motor achieves this while remaining completely stationary. Unlike traditional designs, steppers provide their absolute maximum torque at zero RPM.
This characteristic acts as a highly reliable electronic brake. Integrating a high torque DC stepper motor eliminates the need for physical friction-based braking mechanisms. You save space, reduce mechanical wear, and gain an immediate safety asset. Gravity or external forces cannot easily back-drive the shaft.
Brushed motors rely on physical carbon brushes and commutators to function. These components constantly rub together. They eventually degrade, spark, and fail. Stepper motors completely eliminate these wear items through a brushless design.
Maintenance requirements drop to virtually zero. The operational lifecycle depends almost entirely on the physical ball bearings supporting the rotor shaft. Most industrial-grade units easily exceed 10,000 hours of continuous operation. They provide predictable, long-term durability in harsh environments.
Servo systems demand closed-loop control architectures. They require costly external encoders to read position data continuously. Engineers must also spend hours tuning complex PID control loops to prevent motion instability.
Steppers act as their own position sensors. You send 200 pulses, and the shaft turns exactly one revolution. This open-loop simplicity drastically reduces the overall Bill of Materials (BOM) cost. It also slashes programming time. You eliminate the need for expensive feedback sensors and advanced microcontrollers.
Many novice designers attempt to pair a cheap brushed motor with a reduction gearbox. They hope to achieve slow, precise movements on a tight budget. Mechanical reality quickly destroys this plan.
Geared motors inherently introduce physical backlash. Backlash refers to the microscopic play between intersecting gear teeth. When you reverse direction, this mechanical slop ruins low-speed positioning accuracy. Stepper motors avoid backlash entirely. Their step increments are electromagnetically fixed directly to the rotor.
When you compare a DC Stepper Motor against advanced BLDC servos, speed and torque curves reveal distinct application zones. Steppers absolutely dominate torque output at low speeds. However, they experience rapid torque drop-off once they exceed 2,000 RPM.
BLDC servos maintain consistent, flat torque curves up to 10,000 RPM. They also win the resolution battle. Advanced servos utilize high-resolution optical encoders reading thousands of points per revolution. Standard steppers cap natively at 200 physical steps.
Here is a concise performance summary chart:
Performance Metric | Stepper Motor | BLDC Servo Motor |
|---|---|---|
Optimal Speed Range | 0 - 2,000 RPM | Up to 10,000+ RPM |
Zero-Speed Torque | Maximum (Locks load) | Minimal (Requires feedback) |
Control Architecture | Open-loop (Simple) | Closed-loop (Complex PID) |
Cost-to-Precision | Excellent for static positioning | Excellent for dynamic performance |
Servos ultimately win on high-speed dynamic performance. Steppers decisively win on predictable, budget-friendly static positioning.
Modern industrial applications almost exclusively use hybrid stepper designs. These architectures combine Permanent Magnet (PM) and Variable Reluctance (VR) technologies. The rotor contains a powerful permanent magnet. The stator uses electromagnet windings to pull the rotor teeth into alignment.
This combination yields significantly higher efficiency and much finer step angles. You gain incredible torque density. The only trade-off involves a slightly larger physical volume compared to older, purely variable reluctance models.
Physical space constraints often dictate engineering choices. Many industries require extreme miniaturization. Medical fluid pumps, optical security cameras, and 3D printer extruders all demand precise motion in tight spaces.
Engineers frequently specify a miniature precision stepper motor for these exact scenarios. Manufacturers carefully balance limited physical real estate against necessary holding torque. A well-designed compact DC stepper motor utilizes standardized NEMA sizing, such as NEMA 8 or NEMA 11. This standardization allows for seamless drop-in integration across different hardware platforms.
We must address the primary flaw of stepper technology. These motors pull maximum electrical current even at a complete standstill. They need this constant power to maintain their signature holding torque.
Because they draw maximum current constantly, they generate significant heat. Electrical energy converts directly into thermal output. You must account for this heat in your thermal dissipation budget. Contrast this behavior against BLDC motors. A BLDC motor only draws current proportional to the active mechanical load.
Discrete stepping creates a mechanical "cogging" effect. The rotor aggressively snaps from one magnetic pole to the next. This snapping action leads to audible clicks. At specific operating frequencies, these vibrations can induce severe system resonance.
Engineers often use microstepping to mitigate this issue. Microstepping divides each full step into smaller electrical increments. This smooths out low-frequency vibration significantly. However, microstepping can inadvertently introduce new high-frequency whining noises into the system.
Open-loop control acts as a double-edged sword. It reduces cost, but it eliminates operational feedback. The controller assumes the motor reaches its target position every time it sends a pulse.
If physical resistance suddenly exceeds the motor's available torque, the motor will stall. It will drop steps. Because no encoder tracks the shaft position, the controller remains completely unaware of the error. The entire coordinate system becomes permanently misaligned until you manually re-home the machine.
Undersizing a stepper motor guarantees project failure. System designers must carefully calculate exact acceleration rates and peak loads. You cannot simply select a motor based on steady-state running torque.
We recommend a standard engineering derating strategy. Select a motor capable of delivering 30% to 50% more torque than your absolute maximum calculated load. This safety margin absorbs unexpected mechanical binding and prevents disastrous missed steps.
You cannot connect a stepper directly to a raw DC power supply. The electromagnetic coils require precisely timed, alternating current pulses. The system strictly requires a dedicated driver Integrated Circuit (IC).
Always recommend drivers featuring built-in safety mechanisms. Look for active overcurrent protection and automatic thermal shutdown features. These protections prevent catastrophic hardware failure during unexpected electrical shorts or mechanical jams.
Amateur programmers often command the motor to jump instantly from zero to maximum speed. This instant start requires infinite acceleration torque. The motor will stall and emit a high-pitched squeal.
Engineers must program gradual acceleration and deceleration curves. We call these ramp profiles. A proper trapezoidal or S-curve motion profile builds speed steadily. This prevents stalling, eliminates jerky movements, and drastically reduces the risk of missed steps.
DC stepper motors remain unmatched for specific engineering applications. They excel when you prioritize predictable, repeatable low-speed positioning on a strict budget. Their ability to deliver maximum holding torque at zero RPM eliminates the need for mechanical brakes. They provide a robust, long-lasting digital motion solution.
Use clear shortlisting logic for your next project. If your system requires speeds exceeding 2,000 RPM, extreme energy efficiency, or dynamic load adaptation, pivot immediately to a BLDC servo. If you require precise, lock-in-place movement without exorbitant encoder costs, confidently specify a stepper.
Your next steps involve auditing your required torque-speed curves. Evaluate your available thermal dissipation budgets closely. Finally, consult specific NEMA datasheets to match physical form factors to your hardware constraints.
A: Stepper motors require a continuous current draw to maintain their holding torque. Even when completely stationary, they pull maximum electrical power to lock the rotor in place. This unused electrical energy immediately converts into heat.
A: No. Steppers face a practical physical limit around 2,000 RPM. High coil inductance prevents the magnetic windings from charging and discharging fast enough at high speeds. This causes a severe, rapid loss of usable torque as RPM increases.
A: Accuracy defines hitting the exact programmed coordinate flawlessly. Repeatability describes the motor's ability to return to the exact same physical spot consistently, even if slightly off the true coordinate. Steppers excel exceptionally at repeatability due to their non-accumulating hardware step errors.
