Modern motion control relies heavily on electronic commutation. Engineers specify synchronous electric motors to eliminate mechanical wear components like carbon brushes and commutators. This shift delivers higher efficiency, better reliability, and superior torque density across varying load conditions. However, improper motor specification introduces severe system risks. Selecting the wrong motor type, frame size, or magnet construction leads to thermal failure on the factory floor. It causes inadequate torque at operating speeds, unexpected controller incompatibility, and massive project delays. This guide provides a technical evaluation framework for specifying the right components. We explore construction methods, sizing considerations, and integration realities. You will learn how to specify the correct Brushless DC Motor for industrial and commercial applications, ensuring your motion systems run efficiently under continuous duty cycles.
Commutation Paradigm: Brushless DC (BLDC) motors replace physical brushes and commutators with electronic controllers, eliminating mechanical friction and sparking while increasing operational lifespan.
The System Requirement: A brushless DC motor is not a standalone component; it is a complete motion control system requiring the integration of permanent magnets, stator windings, magnetic pole sensors, and a drive circuit.
Material Impact on Performance: Magnet manufacturing processes dictate performance ceilings; a sintering brushless dc motor offers superior magnetic strength and thermal stability, whereas bonded magnets provide cost-effective precision.
Form Factor Dictates Application: Frame size directly correlates to continuous torque and thermal dissipation capabilities, with specific footprints like the 110mm brushless dc motor serving heavy industrial automation, and the 57mm footprint serving compact, precise instrumentation.
Engineers must understand internal electromagnetic mechanics to match a motor to a specific drive architecture. Without this knowledge, system integration often fails under load. You cannot simply apply a voltage and expect rotation; you must sequence the power precisely.
Continuous rotation relies on the core principle of magnetic attraction and repulsion. Stator coils generate an electromagnetic field when energized. This field interacts with the permanent magnets mounted on the rotor. We define this setup as a synchronous electric motor. The rotor and the rotating magnetic field of the stator operate at the exact same frequency. There is no slip under normal operating conditions. The magnetic flux paths must remain optimized to generate maximum torque. Engineers achieve this by minimizing the air gap between the stator teeth and the rotor magnets. A tighter air gap increases the magnetic flux density, directly translating to higher torque output per amp of current.

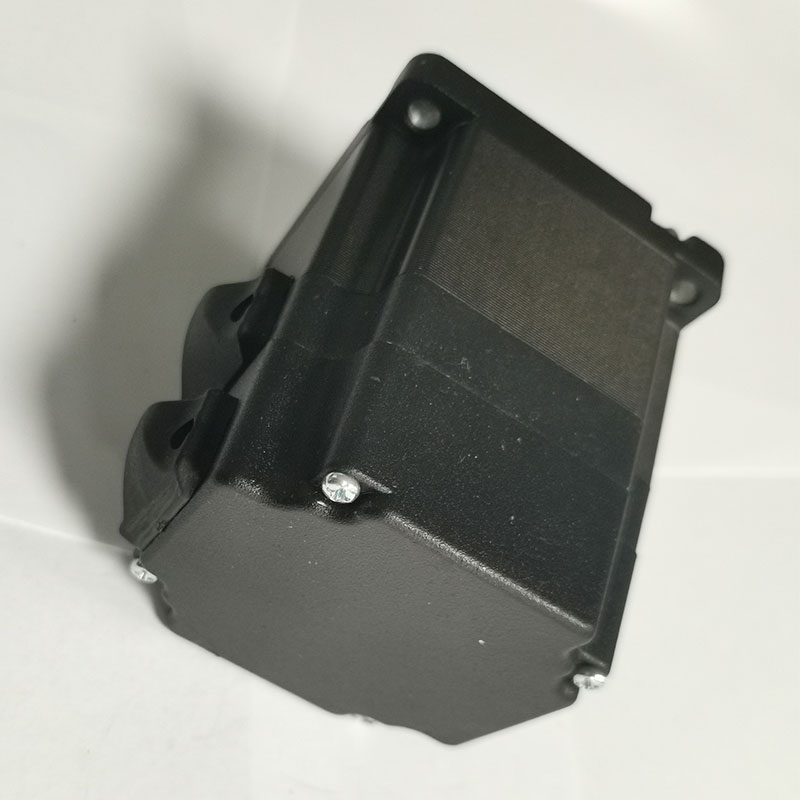

These motors feature an "inside-out" construction compared to legacy designs. Permanent magnets sit on the rotating rotor. Electromagnets form the stationary stator housing. This design eliminates physical brushes completely. Hall-effect sensors or back-EMF measurements provide rotor position feedback to the drive circuit. The controller uses this precise feedback to energize the correct stator coils at the exact right moment. Typically, three Hall sensors sit 120 electrical degrees apart on the stator. They detect the magnetic pole transitions of the rotor. The sensors output a digital signal to the microcontroller, which then fires the power MOSFETs in the inverter bridge.
Clarifying the AC/DC nuance is important for system designers. The entire system connects to a direct current source. However, the drive circuit inverts this power internally. It sequences the stator phases electronically. This makes the unit technically function as a three-phase AC motor. The controller utilizes Pulse Width Modulation (PWM) to regulate speed and torque effectively. By varying the duty cycle of the PWM signal, the controller adjusts the average voltage applied to the windings, thereby controlling the motor speed without wasting energy as heat.
The way manufacturers connect the stator coils impacts performance. Engineers typically choose between two winding configurations based on the application's speed and torque requirements.
Wye (Star) Configuration: Connects all coils to a central neutral point. This delivers high torque at low speeds and provides a smoother back-EMF waveform.
Delta Configuration: Connects coils in a closed triangle shape. This delivers higher top speeds but sacrifices low-speed torque and can introduce circulating currents.
Beyond the connection type, the slot fill factor plays a massive role in motor efficiency. Slot fill factor refers to the percentage of the stator slot area occupied by copper wire. Automated winding machines achieve a standard fill factor, but high-performance motors use segmented stators or hairpin windings to pack more copper into the slots. More copper lowers the phase resistance, which reduces I²R copper losses and allows the motor to run cooler under heavy loads.
Motor topology dictates mechanical integration and inertia matching. You must select the right topology based on your mechanical drivetrain.
Inrunner Motors: Place the rotor inside the stator. They offer low rotational inertia. This allows for rapid acceleration, fast dynamic response, and high-speed operation. The stationary outer stator easily dissipates heat to the surrounding machine frame.
Outrunner Motors: Place the rotor outside the stator. The spinning outer shell acts as a flywheel. This generates higher torque at lower speeds due to the larger air gap radius. Engineers use them when space constraints prevent the use of a mechanical gearbox, such as in drone propellers or direct-drive hub applications.
The manufacturing process of permanent magnets dictates magnetic flux density. It also determines temperature tolerance and unit weight. You must evaluate these material factors before finalizing a mechanical design. The magnets are the heart of the rotor, and their properties define the motor's performance ceiling.
Manufacturers use a powder metallurgy process for high-performance Neodymium (NdFeB) magnets. They press fine magnetic powder in a strong magnetic field. This aligns the magnetic domains perfectly. They then heat the material in a vacuum furnace. This sintering process yields exceptional density and strength. The resulting magnets require protective coatings, like nickel or epoxy, to prevent oxidation in humid environments.
You achieve maximum energy product (BHmax) and high coercivity. The magnets resist demagnetization at elevated operating temperatures. A sintering brushless dc motor fits demanding environments perfectly. The dense magnet structure handles aggressive duty cycles without thermal degradation. When you push a motor to its peak torque limit, the stator magnetic field tries to demagnetize the rotor. Sintered magnets possess the high intrinsic coercivity needed to withstand these demagnetizing fields.
Ideal use cases include:
High-torque robotics joints requiring rapid, precise positioning and zero backlash.
Aerospace actuators operating under extreme load and fluctuating temperature conditions.
Heavy industrial machinery running continuous multi-shift production cycles where downtime is unacceptable.
Electric vehicle traction motors requiring massive peak torque for acceleration.
The bonding process takes a completely different manufacturing approach. Manufacturers mix magnetic powder with polymer binders like nylon or polyphenylene sulfide (PPS). They use injection or compression molding to form the final shape. This process allows for multipole magnetization on a single continuous ring, simplifying rotor assembly.
This method forms complex geometries with tighter manufacturing tolerances. It eliminates the need for expensive secondary machining operations. It lowers production costs significantly for high-volume runs. However, the polymer binder dilutes the active magnetic material. This provides lower overall magnetic strength compared to sintered variants. You trade peak torque for manufacturing efficiency and complex shapes. A bonded magnet rotor will typically produce 20 to 30 percent less torque than a sintered rotor of the exact same dimensions.
Engineers must specify the correct magnet grade based on the ambient environment and internal heating. Neodymium magnets lose flux as they heat up. Standard N-grade magnets begin to degrade around 80 degrees Celsius. For industrial applications, you must specify high-temperature grades. SH (Super High) grades withstand up to 150 degrees Celsius. UH (Ultra High) and EH (Extreme High) grades push that limit to 180 and 200 degrees Celsius, respectively. Failing to specify the correct temperature grade results in irreversible demagnetization and permanent torque loss.
Physical dimensions must align with torque requirements. They also dictate mounting standards and thermal management capabilities. Selecting the wrong frame size leads to premature bearing failure or thermal overload. You must calculate the continuous RMS torque of your motion profile and match it to the motor's continuous operating zone.
The 110mm frame size delivers exceptional power density. It provides superior surface area for heat dissipation. This allows for demanding continuous loads without thermal degradation. A 110mm brushless dc motor handles heavy industrial tasks reliably. These motors often feature thick aluminum extruded housings with cooling fins to maximize convective heat transfer.
Integration requires specific mechanical attention. You must account for standard flange mounting dimensions. Shaft loading limits require careful calculation. Radial and axial loads must not exceed the specified bearing ratings. If you mount a heavy pulley directly to the shaft, the radial load will stress the front bearing. Industrial environments often require IP65 or IP67 ratings to protect against dust and water ingress. Pairing these units with high-amperage servo drives ensures optimal performance. You will typically see shaft diameters of 19mm or 22mm on this frame size, often equipped with standard keyways to prevent coupling slip under high torque transients.

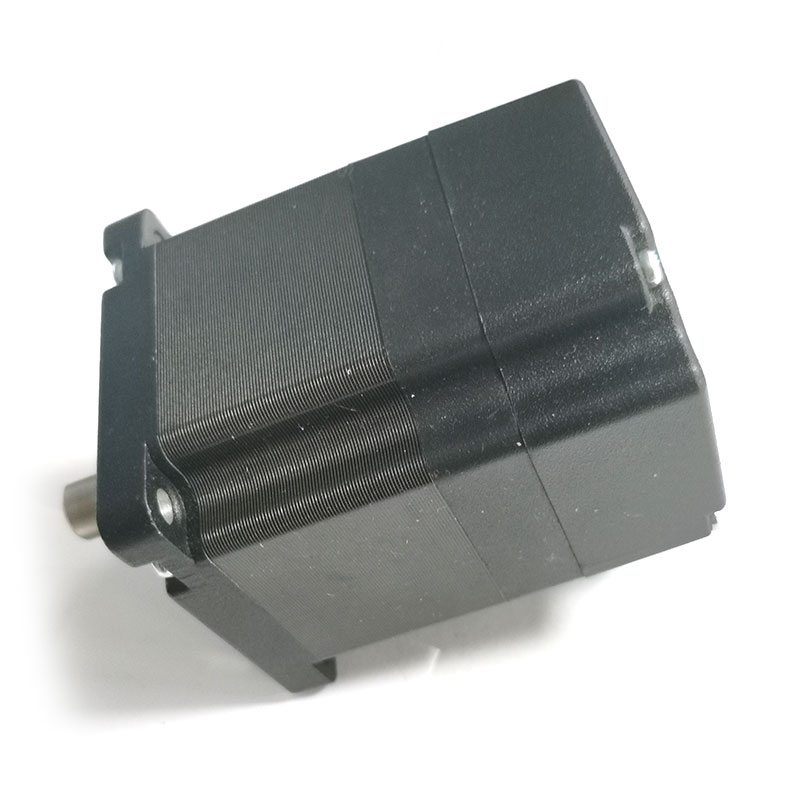

The 57mm frame often aligns directly with NEMA 23 mounting standards. This makes mechanical retrofitting straightforward. A 57mm bonding brushless dc motor replaces traditional stepper motors easily. You gain the advantage of closed-loop control, eliminating the risk of missed steps that plague open-loop stepper systems.
The bonded magnet construction suits cost-sensitive, moderate-torque applications. The injection-molded magnets often feature skewed magnetization patterns. This reduces cogging torque for smoother low-speed operation. Engineers frequently specify them for medical devices, 3D printers, and light automation. They provide closed-loop reliability without the bulk or cost of larger industrial servos. The 57mm frame typically utilizes an 8mm or 1/4-inch shaft, making it compatible with a vast ecosystem of standard pulleys, couplings, and lead screw adapters.
Motor lifespan depends entirely on bearing health. You must evaluate the mechanical loads applied to the motor shaft. Radial loads push perpendicular to the shaft, while axial loads push parallel to it. Manufacturers specify maximum allowable forces for both vectors. Exceeding these limits causes the bearing races to spall and fail prematurely. High-quality motors utilize deep groove ball bearings with ABEC 3 or ABEC 5 precision ratings. For applications with high vibration, engineers specify bearings with high-temperature synthetic grease and dual contact seals (RS or 2RS) to keep contaminants out of the rolling elements.
Engineers need a direct comparison of mechanical trade-offs. This justifies the transition from legacy brushed architectures to modern electronic commutation. You must weigh performance gains against integration complexity.
Compare the torque-to-weight ratios first. Brushless designs pack more power into a smaller footprint. They lack the heavy commutator assembly and brush housing. Analyze the efficiency curves carefully. These units typically maintain 85 to 90 percent efficiency across a wider speed range. Brushed motors suffer from severe friction losses at high speeds. The physical contact between the carbon brushes and the copper commutator generates heat and electrical arcing, wasting energy that should be converted into mechanical work.
Carbon brushes have a finite lifespan. They wear down through physical contact with the spinning commutator. They require periodic replacement and cause unexpected system downtime. Brush dust also contaminates internal components over time, potentially shorting out the windings. Brushless motors eliminate this issue entirely. Their lifespan is limited only by the mechanical bearings. You can expect tens of thousands of hours of maintenance-free operation. This makes them mandatory for applications where the motor is buried deep inside a machine chassis, making maintenance access impossible.
We must acknowledge the primary drawback of brushless technology. You absolutely need an electronic speed controller (ESC) or servo drive. This adds upfront hardware requirements. It also increases programming complexity. Brushed motors only require simple DC voltage control. You can reverse a brushed motor by simply flipping the polarity. Brushless systems require complex phase sequencing and PID tuning. The drive must monitor rotor position continuously and calculate the optimal firing sequence for the inverter bridge. This requires microcontrollers, gate drivers, and high-power MOSFETs or IGBTs.
Technical Specification | Brushless DC Architecture | Brushed DC Architecture |
|---|---|---|
Commutation Method | Electronic (Inverter bridge required) | Mechanical (Carbon brushes and commutator) |
Maintenance Interval | Zero maintenance (Bearing life dictates failure) | High frequency (Periodic brush replacement) |
Peak Efficiency Range | 85% - 92% | 65% - 80% |
Thermal Dissipation | Excellent (Heat generated at outer stator) | Poor (Heat trapped in inner rotor) |
Control Complexity | High (Requires ESC, Hall sensors, PID tuning) | Low (Direct voltage scaling) |
Engineers face specific technical hurdles during system integration. Anticipating these risks prevents costly hardware redesigns late in the development cycle. You must address feedback, electrical noise, and thermal limits before powering up the system.
Sensorless setups risk losing synchronization at low speeds. They rely on back-EMF, which is extremely weak at startup. The controller essentially guesses the rotor position until the motor spins fast enough to generate a readable voltage. You can mitigate this easily. Specify sensored motors with Hall-effect sensors or high-resolution optical encoders. This guarantees precise low-speed positioning and maximum holding torque at zero RPM. The electronic controller requires proper Proportional-Integral-Derivative (PID) tuning. Poor tuning causes motor oscillation, sluggish response, or aggressive overshooting during position moves.
The high-frequency switching of the electronic controller generates EMI. The PWM signals switching at 10kHz to 20kHz create sharp voltage spikes (dV/dt). This electrical noise disrupts nearby sensitive electronics, analog sensors, and communication buses. Proper mitigation requires careful system design. Use braided copper cable shielding for all motor phase wires and terminate the shield at the drive chassis. Implement single-point grounding techniques to avoid ground loops. Utilize inline power filters and ferrite beads on the phase cables to maintain compliance with industrial EMC standards.
Exceeding continuous current limits risks permanent magnet demagnetization. Heat degrades magnetic flux capacity rapidly. You must read torque-speed curves properly. Size the system based on continuous operating zones. Never size a motor based solely on its peak stall torque. Ensure adequate airflow or specify liquid cooling for extreme duty cycles. Furthermore, check the stator winding insulation class. Class F insulation handles up to 155 degrees Celsius, while Class H handles up to 180 degrees Celsius. Embedding a PTC or NTC thermistor directly into the stator windings allows the drive to monitor internal temperatures and trigger a safe shutdown before catastrophic failure occurs.
A brushless DC motor requires a higher initial investment in control electronics. However, its superiority in efficiency, torque density, and maintenance-free operation makes it the standard for modern motion control. Choose a 110mm sintered motor for heavy-duty, high-heat industrial demands. Choose a 57mm bonded motor for precise, moderate-load applications requiring complex magnet geometries.
Follow these steps to finalize your specification:
Calculate your exact continuous RMS torque and peak torque requirements based on your mechanical load and acceleration profiles.
Evaluate the ambient operating temperature to determine the necessary magnet grade, insulation class, and cooling method.
Consult with a motor manufacturer to review specific torque-speed curves for your selected frame size to ensure you operate within the continuous duty zone.
Verify drive controller compatibility, matching the motor's pole count and feedback sensor type to the drive's input requirements.
Design your cable routing and grounding scheme to mitigate EMI generated by the high-frequency PWM switching.
A: The primary difference lies in commutation. Brushed motors use mechanical brushes and commutators to switch current. Brushless motors use an "inside-out" construction with electronic commutation. This eliminates physical wear parts, reducing friction and sparking while drastically increasing the motor's operational lifespan.
A: Yes, they require an electronic speed controller or servo drive. The motor cannot run directly off a simple DC voltage source. The controller is necessary to electronically sequence the stator phases and maintain synchronization with the rotor's permanent magnets.
A: The 110mm designation refers to the outer frame size or flange dimension of the motor. This physical footprint dictates the mounting standards and directly correlates to the motor's thermal dissipation capabilities and overall power output.
A: Sintered magnets offer a significantly higher magnetic flux density and superior thermal resistance. This makes them the ideal choice for high-performance applications that demand maximum torque, rapid acceleration, and reliable operation in high-temperature environments.
A: Yes, the 57mm frame dimension closely aligns with NEMA 23 mounting standards. Upgrading from an open-loop stepper to a closed-loop brushless motor provides significant performance benefits, including higher speeds, better efficiency, and the elimination of missed steps.
A: Lifespan is typically limited only by the mechanical bearings. Because there are no brushes to wear out, these motors routinely exceed 10,000 to 20,000 hours of continuous operation when properly sized and maintained within their thermal limits.
A: Technically, yes. While the entire system is powered by a direct current source, the electronic drive circuit inverts this DC power. It sequences the current into the stator phases, making the motor itself function as a three-phase synchronous AC motor.
