| Quantity: | |
|---|---|
Model | Voltage (VDC) | Rated Speed (rpm) | Rated Torque (N.M) | Rated Power (W) | Peak Torque (N.M) | Body Length (mm) | Weight (kg) |
110BLF40 | 310 | 3000 | 1.6 | 500 | 4.8 | 80 | 3.5 |
110BLF70 | 310 | 3000 | 3.2 | 1000 | 9.6 | 110 | 4.5 |
110BLF100 | 310 | 3000 | 4.8 | 1500 | 14.4 | 140 | 5.5 |
110BLF130 | 310 | 3000 | 6.4 | 2000 | 19.2 | 170 | 7.0 |
Note: Above are standard models, customized derivatives are available based on your requirements. | |||||||

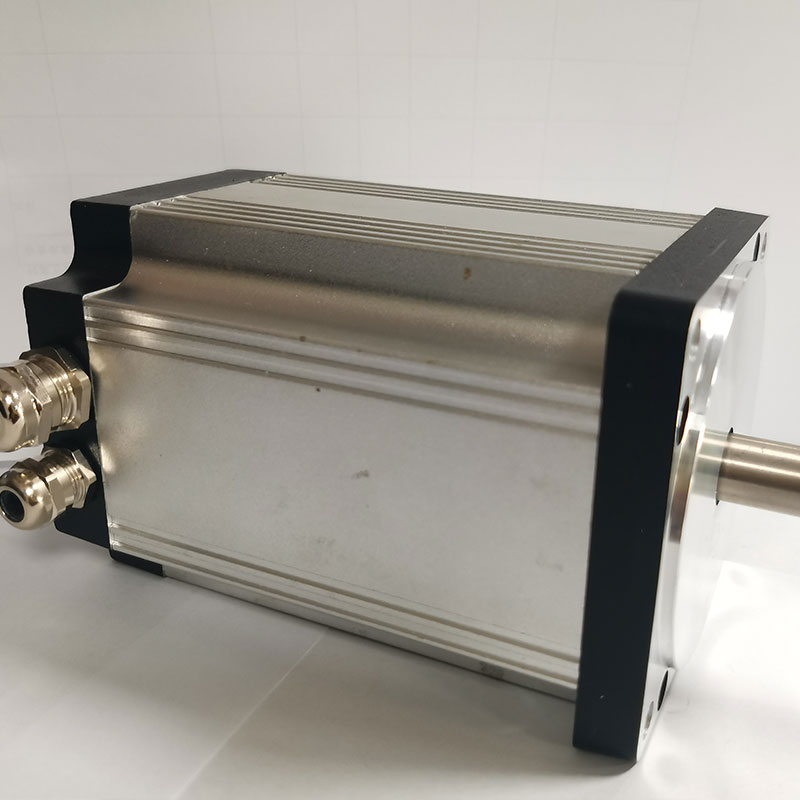

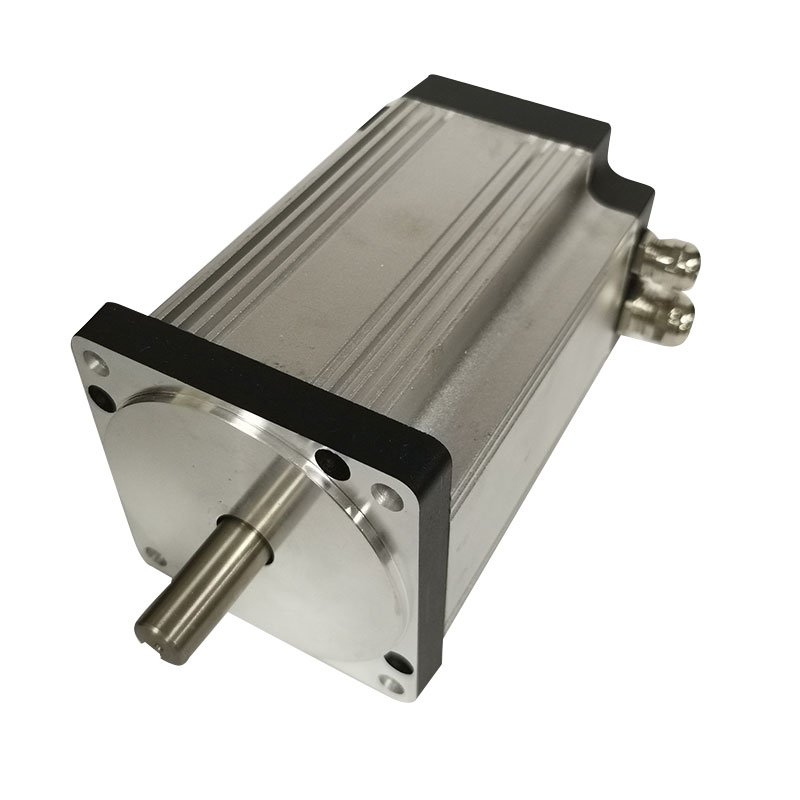

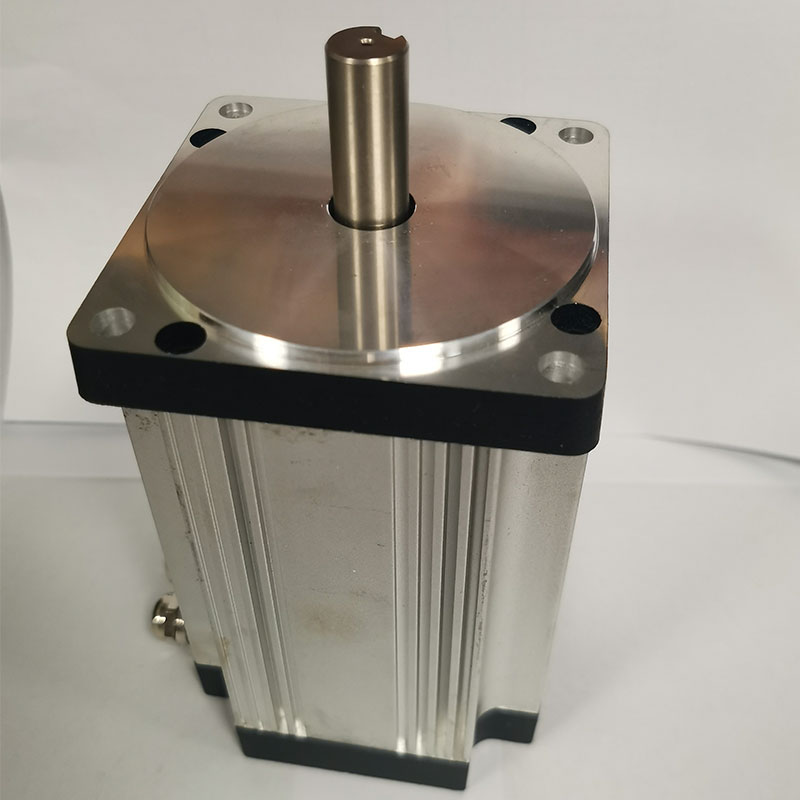

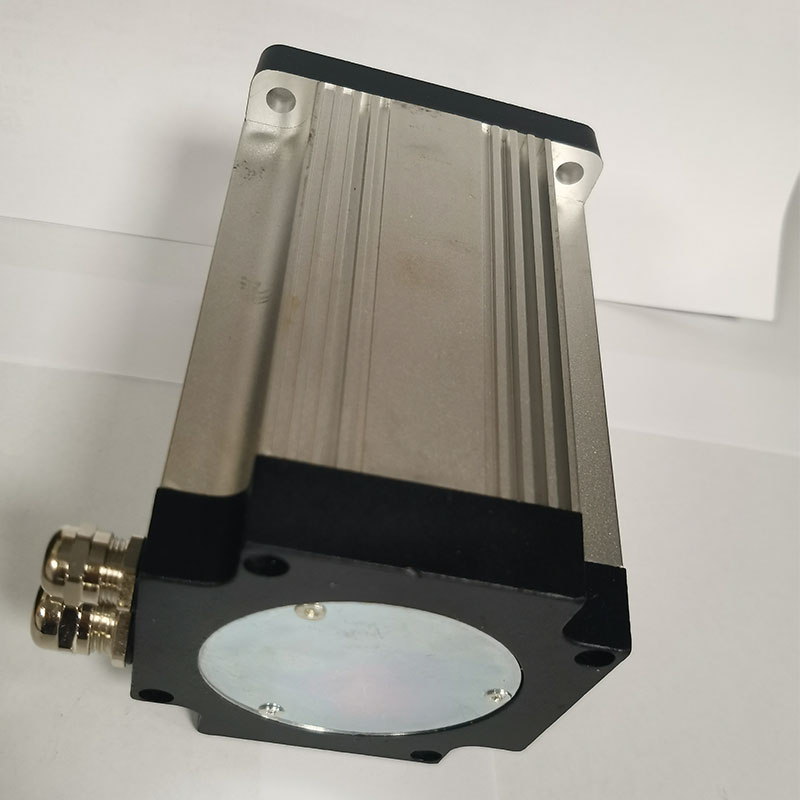

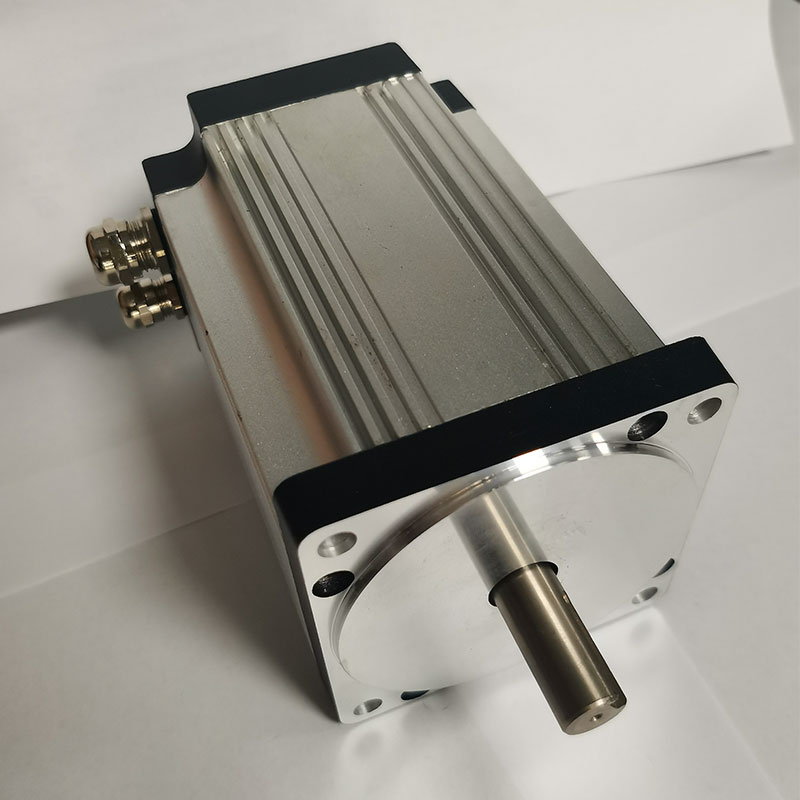

With a standard flange size of 110×110mm, body length ranging from 80mm to 170mm, and wide DC voltage compatibility of 48V and 310V, this motor delivers stable power output from 500W to 2000W, rated torque of 1.6N.M to 6.4N.M, and a standard rated speed of 3000rpm. Built with sintered NdFeB magnets and optimized electromagnetic design, it is the ideal power core for manufacturing enterprises and industrial equipment builders seeking reliable, high-efficiency drive solutions.
The 110mm brushless DC motor achieves an operating efficiency of over 90%, delivering 25% to 30% more energy savings compared to traditional brushed motors. This drastically reduces long-term operational costs for industrial clients, while supporting stable 1000W, 1500W, and 2000W power output even under continuous heavy load conditions.
With precision-engineered structure, this high torque brushless DC motor realizes speed fluctuations of less than ±1%, ensuring consistent torque output across the entire operating range. Its peak torque can reach up to 19.2N.M, easily handling instantaneous heavy load impacts common in industrial production.
Optimized electromagnetic design and strict dynamic balancing calibration guarantee operating noise below 65dB, creating a quieter working environment for industrial workshops. The motor adopts Class B insulation as standard, with an operating temperature range of -10℃ to 40℃, adapting to most industrial production scenarios.
This 310V brushless DC motor is widely used in heavy-duty industrial scenarios requiring high torque and stable power, including automated production lines, large conveying systems, CNC machining equipment, packaging machinery, new energy equipment, industrial mixing machines, and other large torque drive equipment.
We offer full-range customization services for industrial equipment manufacturers to meet diverse application needs. Customizable items include motor shaft dimensions, flange specifications, lead wire length, insulation class upgrade, IP rating enhancement, as well as matching gearboxes, electromagnetic brakes, and encoders for speed reduction, precise braking, and accurate motion feedback.
Winding Wiring: Phase U (Yellow), Phase V (Green), Phase W (Blue)
Hall Sensor Wiring: Red (+V), Black (GND), Yellow (Hu), Green (Hv), Blue (Hw)

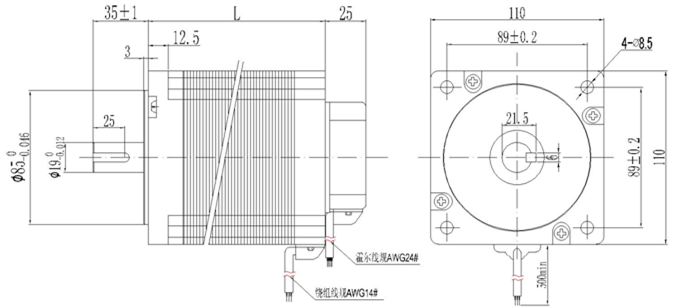

Secure the motor via the 110×110mm flange, ensuring flat mounting surface and coaxial alignment with the driven equipment to avoid radial load damage.
Operate within the standard temperature range of -10℃ to 40℃, with good ventilation to avoid overheating.
Confirm wiring consistency before power-on to prevent component damage.
The standard voltage options are 48V and 310V, with a recommended operating voltage range of 48V to 310V to ensure stable performance and avoid excessive current.
Yes, our standard insulation class is Class B, and we can upgrade to higher insulation classes with adapted electronic components and rotor materials based on your specific needs.
The standard IP rating is IP44. For higher waterproof and dustproof requirements, we can adjust the production process and dedicated tooling to meet your needs.
As a trusted power solution provider for industrial manufacturing enterprises, we offer professional customization and technical support for every 110mm brushless DC motor order. Whether you need standard bulk products or fully customized motor solutions for your equipment, our engineering team is ready to deliver a reliable, high-performance drive solution tailored to your application. Contact us today to discuss your requirements and get a customized quote.
