While brushless technology first gained mainstream recognition for revolutionizing prosumer power tools, the transition from brushed to brushless systems is no longer just a premium upgrade. It represents a strict baseline requirement for modern, high-efficiency, and continuous-duty industrial applications. Engineering and procurement teams face mounting pressure to reduce maintenance cycles, minimize electromagnetic interference (EMI), and maximize power density without expanding the physical footprint or weight of their machinery.

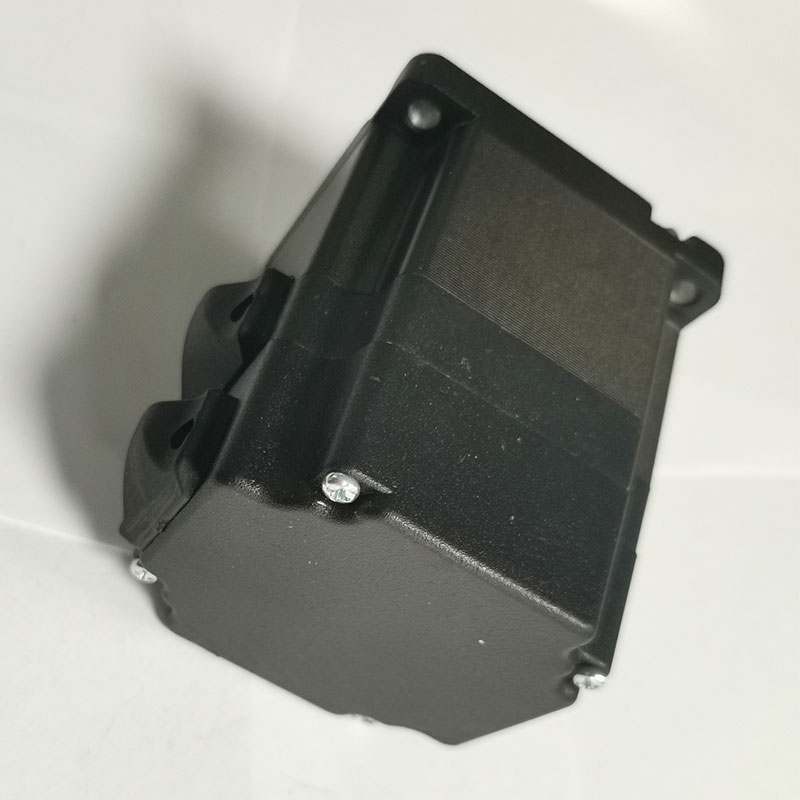

This guide breaks down the structural and operational advantages of the Brushless DC Motor. We evaluate the enhanced thermal management, superior performance metrics, and long-term operational reliability that justify the transition away from legacy systems. You will examine specific frame sizes, manufacturing techniques, and integration strategies to help specify the exact motor configuration for your next automation or robotics project.
Elimination of Mechanical Wear: Removing physical brushes and commutators drastically reduces maintenance downtime, mechanical friction, and spark-induced EMI.
Superior Power Density and Weight Reduction: Higher torque-to-weight ratios allow for highly compact, lighter designs, which are essential for precision automation, portable industrial tools, and mobile robotics.
Application-Specific Sizing: Manufacturing techniques and frame sizes—such as the 110mm brushless dc motor for heavy loads or the 57mm bonding brushless dc motor for precision—must be matched exactly to operational success criteria.
Legacy motors rely on a physical commutator and carbon brushes to maintain electrical contact during rotation. Brushes constantly rub against the commutator, creating inevitable mechanical friction. Carbon brushes wear down over time, generating conductive dust inside the motor housing. This dust coats internal windings, causes electrical shorts, and guarantees premature failure in continuous-duty applications.
Brushless architecture flips this design entirely. Engineers place permanent magnets on the rotor and position the copper electromagnets on the stationary stator. This eliminates the need for physical brushes. Electronic commutation replaces mechanical switching. Controllers use Hall effect sensors or sensorless back-EMF drives to determine the exact rotor position. The controller energizes the stator coils in a precise sequence, creating a rotating magnetic field that the rotor follows seamlessly. You achieve completely frictionless rotation where the only mechanical contact points remaining are the shaft bearings.
Component | Brushed Motor Function | Brushless Motor Equivalent | Failure Mode / Wear Rate |
|---|---|---|---|
Commutation | Physical copper commutator bars | Electronic Speed Controller (ESC) | High wear / Zero wear |
Electrical Contact | Spring-loaded carbon brushes | Direct wiring to stationary stator | High wear / Zero wear |
Position Sensing | Mechanical alignment | Hall effect sensors or Back-EMF | None / Highly reliable |
Rotation Support | Shaft bearings | Shaft bearings | Moderate wear / Moderate wear |
Brushed motors struggle at high speeds. Centrifugal forces cause the spring-loaded brushes to bounce off the commutator. This bouncing triggers severe electrical arcing, rapidly pitting the copper contact surfaces and limiting the maximum safe operating speed. A standard brushed motor rarely exceeds 10,000 RPM without catastrophic brush degradation.
Brushless designs eliminate brush friction and arcing entirely, allowing them to achieve 50,000+ RPM safely and reliably. Electronic commutation also provides precise phase switching. Advanced drives utilize Field Oriented Control (FOC) or sinusoidal commutation to drastically reduce torque ripple. Torque ripple causes micro-stutters during rotation. Minimizing it ensures exceptionally smooth operation and reduces mechanical vibration across the entire machine. This stability is critical for precision engineering, optical gimbals, laser cutting tools, and medical imaging devices.
Heat destroys motor efficiency and degrades permanent magnet strength. Brushed motors generate most of their heat on the spinning rotor. The surrounding air gap acts as a thermal insulator, trapping heat inside the core. This severely limits continuous torque ratings and reduces thermal overload capacity.
Brushless designs solve this thermal bottleneck by generating heat primarily on the stationary stator windings. The stator mounts directly to the outer motor casing, allowing for highly efficient, direct heat transfer. The metal casing acts as a massive heat sink. Engineers implement several cooling strategies based on this architecture:
Conduction Cooling: Direct mounting of the motor faceplate to an aluminum machine frame pulls heat away from the stator.
Forced Air Cooling: External fans blow ambient air over finned motor housings to dissipate high continuous heat loads.
Liquid Cooling: Water or glycol jackets surround the stator for extreme continuous torque applications, such as EV traction drives or heavy CNC spindles.
Energy conversion rates heavily favor brushless technology. Brushless motors frequently achieve 85% to 95% efficiency across a wide operating band. Brushed motors typically plateau between 75% and 80%, with efficiency dropping sharply outside their optimal RPM range. This efficiency gap stems from eliminating specific mechanical and electrical losses.
You eliminate the physical drag that slows the rotor down. You also eliminate the contact voltage drop across the commutator. Brushless systems deliver power directly to the stator, while electronic controllers optimize the magnetic field timing perfectly to match the load. This efficiency translates directly to operational longevity. Mobile applications, such as automated guided vehicles (AGVs) and drones, see significantly longer battery life. Industrial grids experience lower overall power draw, reducing the energy burden on facility infrastructure.
Mechanical commutators generate continuous electrical arcing. This sparking creates severe broadband electromagnetic interference (EMI). EMI disrupts sensitive electronics nearby, corrupting data signals in automated systems and industrial communication buses like EtherCAT or PROFINET. Brushless systems eliminate this arcing entirely, providing a clean electromagnetic profile. This makes them mandatory for sensitive environments, medical devices, aerospace controls, and explosive atmospheres where spark-free operation is required.
Acoustic noise also drops significantly. Mechanical commutation produces a distinct, harsh whining sound. Removing brushes eliminates this noise source, allowing brushless motors to operate inherently quieter. The primary remaining acoustic factors are aerodynamic windage and bearing noise. You mitigate bearing noise through high-quality component sourcing and specifying precision-grade deep groove ball bearings for ultra-quiet applications.
Power density measures mechanical output relative to physical size and weight. Brushless motors offer a massive torque-to-weight ratio advantage. They utilize high-energy rare-earth magnets and lack bulky brush assemblies, allowing for highly compact, lighter designs.
Smaller brushless footprints achieve the same mechanical output as much larger brushed counterparts. This facilitates aggressive miniaturization in product design, allowing engineers to shrink the overall size of machinery. It drastically reduces payload weight. Aerospace applications rely on this weight reduction to maximize fuel efficiency, while AGVs carry heavier payloads when their drive motors weigh less.
Performance Metric | Brushed DC Motor | Brushless DC Motor |
|---|---|---|
Peak Efficiency | 75% - 80% | 85% - 95%+ |
EMI Generation | High (Continuous arcing) | Very Low (Spark-free) |
Heat Dissipation | Poor (Trapped on rotor) | Excellent (Direct to casing) |
Power Density | Low to Moderate | Extremely High |
Heavy industrial applications require massive continuous torque and robust mechanical support. The 110mm frame size serves as a standard for these demanding environments. You will find the 110mm brushless dc motor driving heavy automation lines, powering large-scale robotics, and serving as the primary traction drive for heavy-duty AGVs. CNC machinery relies on this size for precise, powerful spindle rotation.
This specific form factor provides immense thermal mass. The larger casing absorbs and dissipates heat rapidly during peak load spikes. Engineers equip these motors with oversized bearings and thick output shafts (typically 19mm or 24mm). This allows them to handle extreme radial and axial loads. A CNC router applies heavy side-loads during cutting operations via belt drives or helical gears. The 110mm frame absorbs these forces without shaft deflection, guaranteeing continuous operation in 24/7 manufacturing environments.
Compact applications demand high precision and low weight. The 57mm frame size fits perfectly into tight spaces. However, high RPMs in small motors create intense centrifugal forces. These forces attempt to tear the permanent magnets off the rotor core. Manufacturers solve this using advanced adhesive bonding techniques.
A 57mm bonding brushless dc motor utilizes industrial-grade, high-temperature epoxies. These adhesives secure the magnets permanently to the rotor. Engineers often reinforce this with Kevlar or carbon fiber banding wrapped around the rotor assembly. This ensures absolute magnet stability at extreme speeds and prevents catastrophic internal failures. This motor excels in applications requiring low cogging torque. Medical surgical robotics use them for smooth, precise movements. Aerospace actuators rely on their compact power, and precision optics use them to adjust lenses without inducing vibration.
Extreme operational conditions destroy standard motors quickly. High humidity, corrosive chemicals, and extreme temperatures demand specialized manufacturing. Powder metallurgy, known as sintering, provides the solution. Manufacturers compress metal powder and a dielectric binder under immense pressure, then heat it just below the melting point. This fuses the particles into a solid, high-density component known as a Soft Magnetic Composite (SMC).
A sintering brushless dc motor utilizes sintered stators or custom housings. This process improves overall structural integrity and optimizes the magnetic flux paths within the motor core. SMCs possess high electrical resistivity, which drastically reduces eddy current losses in the stator. This provides superior thermal resistance. These motors survive in mining equipment, deep-sea submersibles, and heavy agricultural machinery. They withstand environments where standard cast or laminated components would crack, corrode, or overheat.
Brushed motors operate simply. You apply a DC voltage, and they spin. Reversing the polarity reverses the direction. Brushless systems require significantly more engineering overhead. They cannot operate without an electronic speed controller (ESC) or a dedicated servo drive. This introduces controller complexity and requires specific engineering resources.
Teams must handle firmware requirements, communication protocols, and closed-loop control systems. You must tune proportional, integral, and derivative (PID) values to achieve stable operation. Poor tuning causes erratic motor behavior, aggressive oscillation, or excessive current draw.
Pre-Tuned Packages: Partner with vendors who supply matched motor and drive packages to eliminate baseline tuning errors.
Auto-Tuning Software: Utilize auto-tuning algorithms provided by modern drive manufacturers to establish baseline PID values quickly.
Standardized Protocols: Standardize communication protocols like EtherCAT or CANopen across your facility to simplify PLC integration.
High-performance brushless motors rely heavily on rare-earth magnets. Neodymium (NdFeB) magnets provide the highest magnetic flux density, enabling extreme power density. However, they face significant supply chain volatility. Geopolitical factors often cause sudden cost fluctuations and procurement delays. Relying exclusively on Neodymium introduces project risks.
You must evaluate alternative magnetic materials during the design phase. Ferrite (ceramic) magnets offer a highly stable supply chain. They handle high temperatures without demagnetizing as easily as low-grade Neodymium. However, they provide lower magnetic strength. Using Ferrite requires a larger motor frame to achieve the same torque. Evaluate your physical space constraints. If peak torque density is not critical, switch to Ferrite magnets to stabilize your supply chain and ensure continuous production.
The brushless dc motor itself is highly durable, but the electronic drive remains vulnerable. Controllers contain sensitive microprocessors and power MOSFETs. Voltage spikes from back-EMF during rapid deceleration destroy these components instantly. Extreme ambient heat causes thermal throttling or permanent failure. Moisture ingress shorts out the circuit boards.
You must protect the drive electronics aggressively. Specify appropriate Ingress Protection (IP) ratings for the operating environment. IP67 or IP69K ratings are mandatory for washdown environments. Utilize thermal potting compounds like polyurethane or silicone. Potting encapsulates the electronics in a solid resin, protecting them from vibration, moisture, and thermal shock. In extremely high-temperature environments, isolate the drive electronics entirely. Mount the controller in a climate-controlled cabinet far away from the hot motor housing.
Brushed motors remain viable for low-cost, intermittent-duty, or disposable applications. However, the brushless DC motor stands as the definitive choice for continuous-duty engineering projects. It delivers unmatched reliability, superior thermal management, and zero mechanical wear. You must select your motor based on specific torque requirements, environmental demands, and available control infrastructure to maximize machine uptime.
Take these actionable steps to optimize your next engineering project:
Audit your current brushed motor failure rates to identify high-maintenance zones on your production floor.
Evaluate your existing control infrastructure to determine compatibility with advanced electronic speed controllers and closed-loop feedback systems.
Assess your physical space constraints to see if a higher power density motor can shrink your machine footprint or reduce payload weight.
Consult with a specialized motor manufacturer for a custom sizing and drive integration analysis based on your exact radial and axial load requirements.
A: Brushless motors typically operate for tens of thousands of hours. Their lifespan depends almost entirely on bearing wear. Brushed motors usually fail between 1,000 and 3,000 hours because the carbon brushes and physical commutators wear down completely through continuous mechanical friction.
A: They lack physical brushes to switch the electrical current mechanically. An electronic speed controller (ESC) must monitor the exact rotor position using Hall effect sensors or back-EMF. The controller then rapidly switches the current across the stator coils in a precise sequence to create the rotating magnetic field that drives the motor.
A: Sintering uses powder metallurgy to create highly dense, structurally uniform components. Sintered stators and housings resist mechanical stress, reduce eddy current heat losses, and withstand corrosive or high-temperature environments far better than standard cast metal parts. This makes them ideal for heavy agricultural and mining equipment.
A: This compact size fits perfectly into precision applications requiring high RPMs and low weight. The adhesive bonding secures the magnets against extreme centrifugal forces that would otherwise tear them off the rotor. Common uses include medical surgical robotics, aerospace actuators, and precision optical adjustment mechanisms.
A: Brushed motors suffer from brush bounce at high speeds. The springs cannot maintain contact, causing destructive electrical arcing and friction. Brushless motors eliminate physical contact entirely. Their maximum RPM is limited only by the mechanical integrity of the rotor assembly and the speed rating of the shaft bearings.
A: Yes, but significantly less than legacy systems. While you never have to replace carbon brushes, you must still monitor the shaft bearings. Bearings eventually degrade due to mechanical load, vibration, or poor lubrication. Routine vibration analysis helps predict bearing failure before it causes unexpected machine downtime.
A: A 110mm brushless motor provides significantly higher power density and starting torque than an AC induction motor of the exact same frame size. It also offers far superior speed control and efficiency at partial loads, making it the better choice for dynamic servo applications and precision automation.
