Selecting a motor for an industrial system acts as a critical engineering integration decision. It extends far beyond a simple specification sheet comparison. Engineers and procurement teams often default to newer electronic technologies, entirely overlooking the hidden complexities of circuit design. Conversely, others rigidly stick to legacy systems and inadvertently sacrifice long-term reliability. We promise you an objective, evidence-based breakdown of mechanical versus electronic commutation. We will highlight exactly when you should accept the routine maintenance of a brushed system. We will also clarify when you should confidently invest in a brushless architecture. By the end, you will know how to evaluate these motors based on operational duty cycles, environmental ruggedness, and electrical integration complexity. You must balance the physical constraints of traditional Brushed DC Motor designs against the electronic sophistication of modern alternatives to ensure a successful product rollout.
The primary differentiator is commutation: physical (carbon brushes) vs. electronic (microcontrollers).
Brushless motors dominate in continuous, high-duty-cycle applications due to zero mechanical friction and a lifespan exceeding 10,000 hours.
Brushed motors remain highly relevant for low-duty-cycle, cost-sensitive, or extreme-temperature environments where complex electronics introduce points of failure.
A "high efficiency motor" isn't strictly determined by the brushless label; specific architectures (like ironless core brushed motors) can outperform brushless designs in certain high-speed scenarios by avoiding eddy current losses.
To understand motor selection, we must first look at the internal geometry. A brushed motor relies on a straightforward, century-old design. The outer housing contains the stator, which utilizes permanent magnets to create a stationary magnetic field. Inside this field sits the rotor, which consists of electromagnets formed by copper wire wound around an iron core.
The motor achieves rotation through physical commutation. Spring-loaded carbon brushes press tightly against a rotating cylinder called a commutator. As the rotor turns, the brushes drag across the commutator segments. This physical contact continuously flips the magnetic polarity of the rotor coils, forcing them to push away from the stator magnets and sustain rotation.
Implementation Reality: While structurally simple, mechanical friction acts as the system's inherent bottleneck. The continuous dragging of brushes creates physical wear, generates heat, and produces carbon dust. You must account for these physical limitations when designing your maintenance schedules.
A brushless motor essentially turns the brushed architecture inside out. In this configuration, the rotor contains the permanent magnets. The stator holds the electromagnets. Because the electromagnets remain stationary on the outside, they do not require moving electrical contacts to receive power.
Electronic commutation replaces the physical brushes. The system relies on an Electronic Speed Controller (ESC) or a dedicated microcontroller. This controller reads the exact position of the rotor using internal Hall effect sensors or by measuring sensorless back-electromotive force (back-EMF). Once it knows the rotor position, the controller fires the stator coils in a precise sequence to pull the permanent magnets along.
Implementation Reality: This design eliminates mechanical brush friction entirely. However, it shifts the operational complexity directly from the mechanical assembly to the electronic control board. You must now manage software algorithms, heat dissipation on the circuit board, and complex wiring.
Physical laws dictate strict speed limits for mechanical commutation. As a brushed motor accelerates toward 10,000 RPM, it encounters a phenomenon known as "brush float." The internal springs simply cannot react fast enough to keep the carbon brushes pressed firmly against the rapidly spinning commutator.
When the brushes float, they break electrical contact. This separation causes severe electrical arcing, spikes in temperature, and rapid destruction of the contact surfaces. By contrast, brushless motors easily exceed 10,000 RPM. Without physical brushes to hold them back, their speed limit primarily depends on the mechanical integrity of the bearings and the processing speed of the electronic controller.
Engineers often assume that eliminating physical friction automatically creates a superior high efficiency motor. We must challenge this broad assumption. While brushless designs generally operate with higher efficiency at normal speeds, high-speed applications expose a different physical constraint: eddy currents.
When a brushless motor spins at extreme velocities, the rapidly changing magnetic fields induce circulating electrical currents (eddy currents) within the steel core of the stator. These currents generate significant heat. Crucially, eddy current power losses scale with the square of the motor's speed. At extreme RPMs, these electrical losses can easily exceed the mechanical friction losses of a traditional motor.
Expert Nuance: Certain niche brushed designs bypass this issue entirely. Ironless core brushed motors lack the iron mass where eddy currents normally form. In highly specific, high-speed, low-torque scenarios, an ironless brushed motor can theoretically maintain higher efficiencies than a standard brushless design.
Chart: Performance Loss Profiles Across Speed Ranges | |||
Motor Type | Primary Loss Mechanism | Low Speed (<3,000 RPM) | High Speed (>10,000 RPM) |
|---|---|---|---|
Standard Brushed | Mechanical Friction | Moderate (Linear with speed) | Severe (Brush float, arcing) |
Standard Brushless | Eddy Currents | Very Low | High (Scales with speed squared) |
Ironless Brushed | Mechanical Friction | Low | Moderate (No eddy currents, but brush wear remains) |
Lifespan expectations vary drastically between these two architectures. Brushed motors typically yield 2,000 to 5,000 hours of continuous operation before brush replacement becomes mandatory. If you deploy a brushed motor inside an enclosed housing, you must design physical access panels for maintenance.
Furthermore, brush wear generates fine carbon dust as a natural byproduct. This dust disperses into the surrounding environment. If your application involves sensitive optical sensors, medical cleanrooms, or sterile liquid processing, carbon dust acts as a severe contaminant. Brushless motor lifespan, conversely, is dictated almost entirely by bearing wear. You can reasonably expect them to operate beyond 10,000 hours without degrading the local environment.
Despite their maintenance needs, traditional DC motors possess hidden ruggedness. They lack complex onboard electronics. This simplicity makes them highly resilient in industrial settings plagued by extreme temperatures, heavy vibrations, and electromagnetic interference.
Risk Factor: Brushless controllers rely on Printed Circuit Boards (PCBs), microchips, and delicate sensor arrays. These electronic components are highly sensitive to extreme heat and freezing cold. In harsh environments, thermal cycling can cause solder joints to fracture. The electronic controller often becomes the system's weakest link long before the physical motor fails.
Use brushed motors in heavy-vibration applications (like mining equipment) where PCB traces might fracture.
Select brushless motors for sealed underwater applications, as you can fully pot the stator coils in epoxy without worrying about brush contacts.
Always assess the ambient temperature rating of the controller, not just the motor windings, when deploying brushless systems.
Integration complexity heavily influences product development time. A brushed setup remains fundamentally simple. You only need to supply direct current. Reversing the rotational direction requires nothing more than swapping the voltage polarity. You can achieve this using a basic Double-Pole Double-Throw (DPDT) rocker switch or a standard mechanical relay.
A brushless setup demands significantly more engineering effort. You must transform the DC input into a synchronized three-phase output. This necessitates a dedicated driver board equipped with H-bridge circuits. To achieve precise control, engineers often write complex firmware utilizing algorithms like Field Oriented Control (FOC). You cannot simply plug a brushless motor into a battery and expect it to run.
Safety overrides require careful architectural planning. In automated systems, limit switches prevent mechanisms from crashing into physical boundaries.
Engineering Pitfall: You can mechanically halt a brushed motor by splicing a heavy-duty physical limit switch directly into the main power line. When the switch triggers, it physically cuts the current. You cannot use this crude method with brushless motors. Cutting power unexpectedly between the power supply and the controller can cause inductive kickback, destroying the delicate MOSFETs on the driver board.
Mount a low-voltage logic sensor at the mechanical boundary.
Route the sensor signal directly into your Programmable Logic Controller (PLC) or microcontroller input pin.
Program the microcontroller to interpret the limit signal.
Send a software command (often dropping the PWM signal to zero) to the motor driver, instructing it to gracefully halt power to the stator coils.
Your duty cycle profile serves as the ultimate tiebreaker. Cost-driven, low-duty-cycle applications heavily favor mechanical commutation. Consider automotive power windows or automated seating adjustments. These mechanisms operate for only a few seconds at a time. If the motor will run for fewer than 1,000 hours over the product's entire lifecycle, the lower initial cost and simpler drive circuitry of a brushed motor make it the optimal commercial choice. You avoid paying for a 10,000-hour electronic lifespan that the user will never utilize.
Continuous, high-reliability applications demand electronic commutation. HVAC blowers, industrial fluid pumps, and UAV drones operate continuously for hours or days. The maintenance-free nature of brushless motors justifies their higher upfront electronic costs. Additionally, because the stator windings sit on the outer shell of a brushless motor, heat dissipates much faster into the surrounding air or metal mounting bracket, keeping the system cooler during continuous operation.

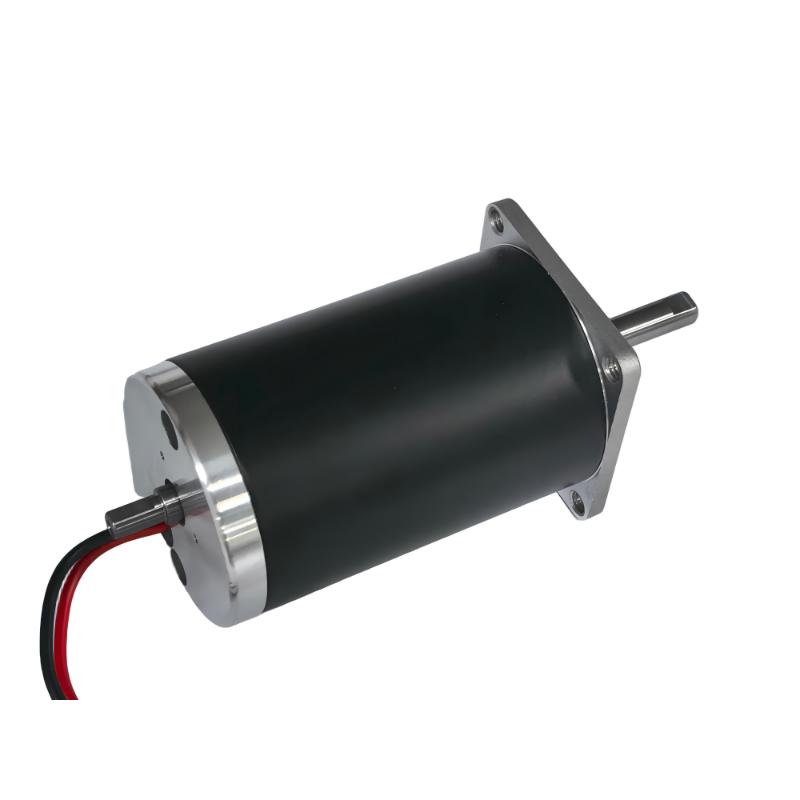

When standardizing a product line, you should evaluate both variants within the same form factor. Industrial manufacturers often design mechanical housings that can accept either motor type. For instance, comparing a Series 90 Brushed DC Motor against a Series 90 Brushless DC Motor allows your engineering team to scale product tiers easily.
You can prototype a highly affordable base model utilizing the brushed variant. Later, you can introduce a premium, heavy-duty tier utilizing the brushless variant. Because both motors share the same "Series 90" physical footprint, you avoid redesigning mounting brackets, gearboxes, or external casings. This modular approach significantly reduces tooling costs and speeds up time-to-market.
Choosing the right motor technology requires a sober assessment of your system's operational realities. Neither architecture is universally superior. You must align the physical characteristics of the motor with the exact demands of your application.
Embrace simplicity: Choose a brushed DC motor for low initial prototyping cost, straightforward polarity control, and extreme environmental resilience against heat and vibration.
Invest in longevity: Choose a brushless DC motor for continuous, 24/7 operation, zero physical maintenance, and precise electronic speed regulation.
Watch out for hidden complexities: Remember that brushless systems require logic-level limit switches and robust firmware, which will extend your electronic development timeline.
We encourage engineering teams to rigorously evaluate total anticipated lifecycle hours and your internal driver integration capabilities before finalizing the Bill of Materials (BOM). Mapping these variables early prevents costly redesigns late in the production cycle.
A: Yes, in highly specific scenarios. Ironless core brushed motors lack heavy iron components in the rotor. Therefore, they do not suffer from eddy current losses, which can plague standard brushless motors at extremely high speeds. In low-torque, high-speed applications, this gives specific brushed designs an efficiency edge.
A: A coreless motor is actually a distinct variant of a brushed motor. Its rotor utilizes a self-supporting wire basket structure that lacks a solid iron core, allowing for massive, instantaneous acceleration. Because it still relies on physical brushes for commutation, it operates completely differently from a true brushless motor.
A: No. While they eliminate the mechanical friction heat generated by physical brushes, they remain vulnerable to electrical heat. Sustained mechanical overloads, locked rotors, or poor external ventilation can cause severe electrical overheating in the stator coils and permanently damage the electronic controller board.
