| Quantity: | |
|---|---|
Model | Voltage (VDC) | Rated Speed (rpm) | Rated Torque (N·m) | Rated Power (W) | Peak Torque (N·m) | Body Length (mm) | Weight (kg) |
60BLF27 | 48 | 3000 | 0.32 | 100 | 0.96 | 78 | 0.85 |
60BLF48 | 48 | 3000 | 0.65 | 200 | 1.95 | 99 | 1.25 |
60BLF69 | 48 | 3000 | 0.95 | 300 | 2.85 | 120 | 1.65 |
60BLF90 | 48 | 3000 | 1.27 | 400 | 3.81 | 141 | 2.05 |
General Specs: Sintered NdFeB Magnet, 8 Poles/3 Phases, Class B Insulation, -10℃~40℃ Operating Temperature | |||||||

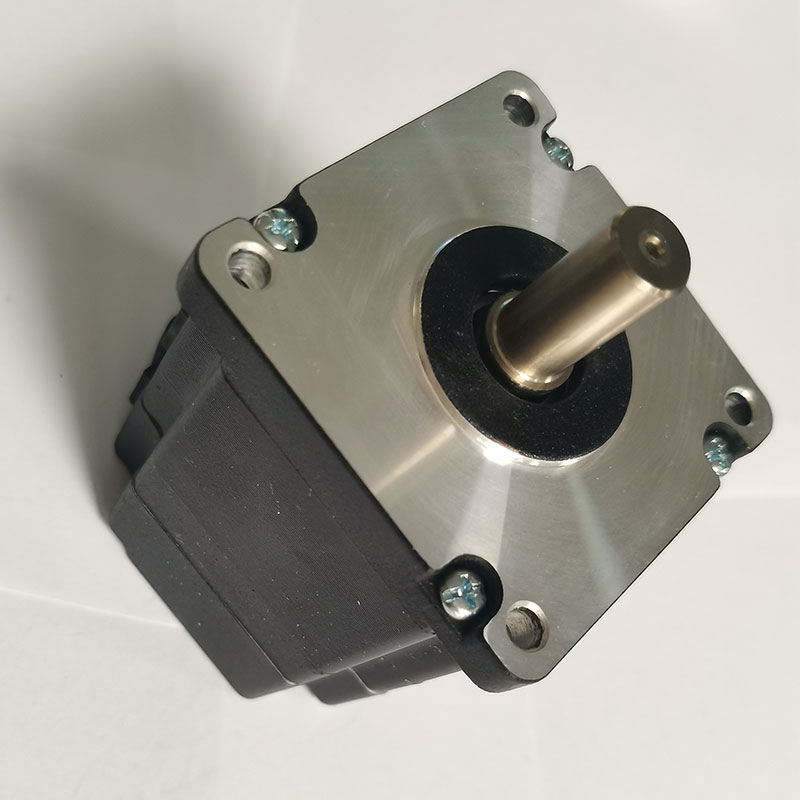

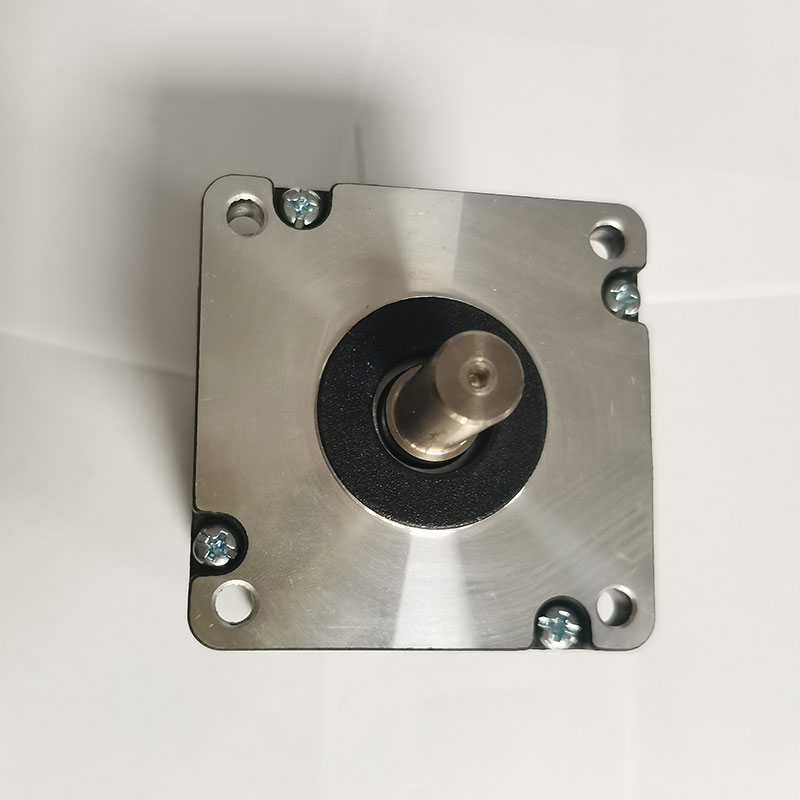

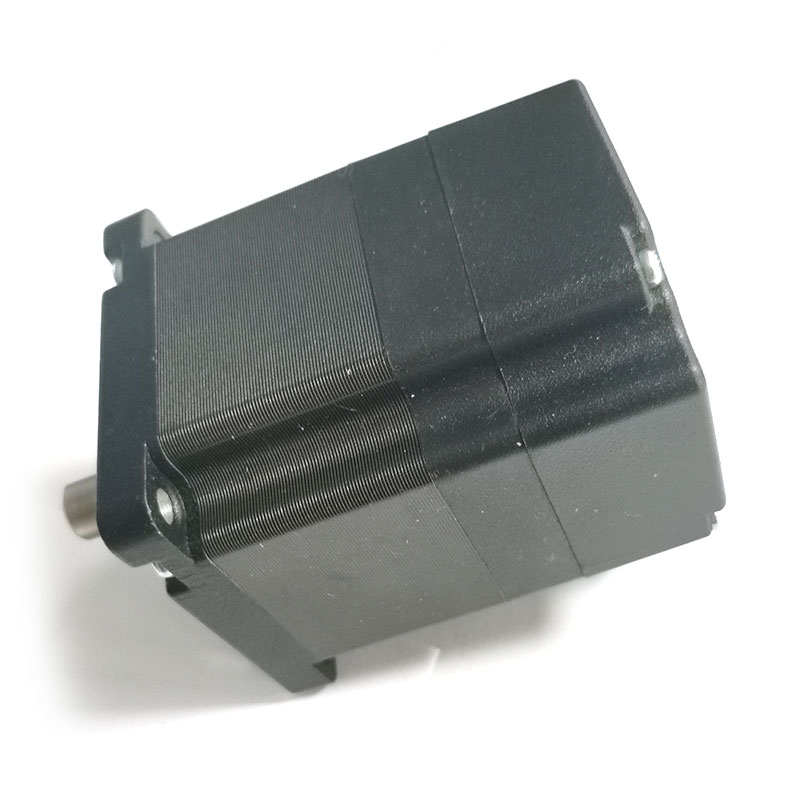

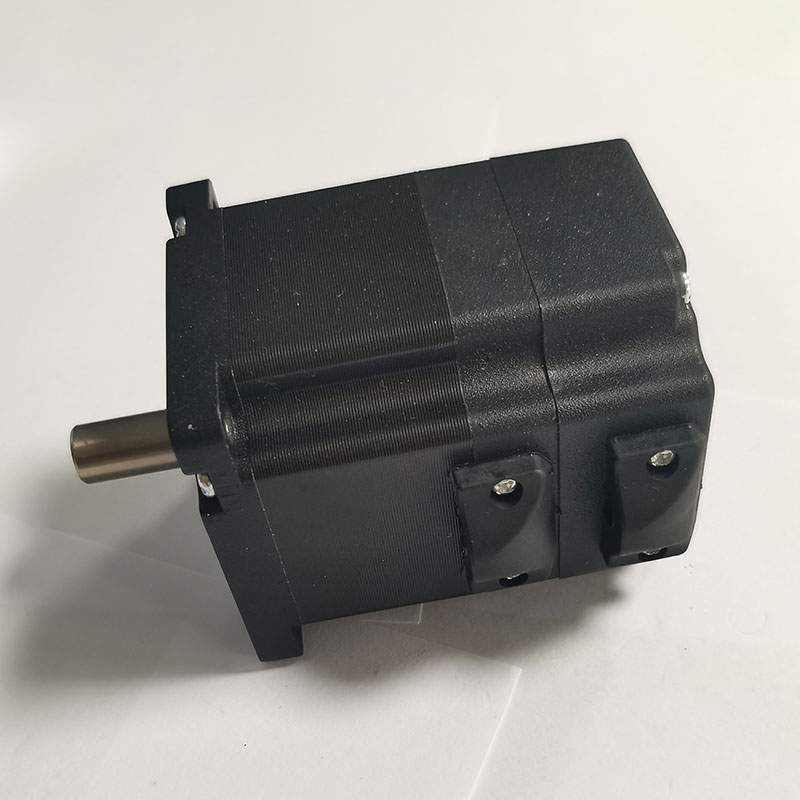

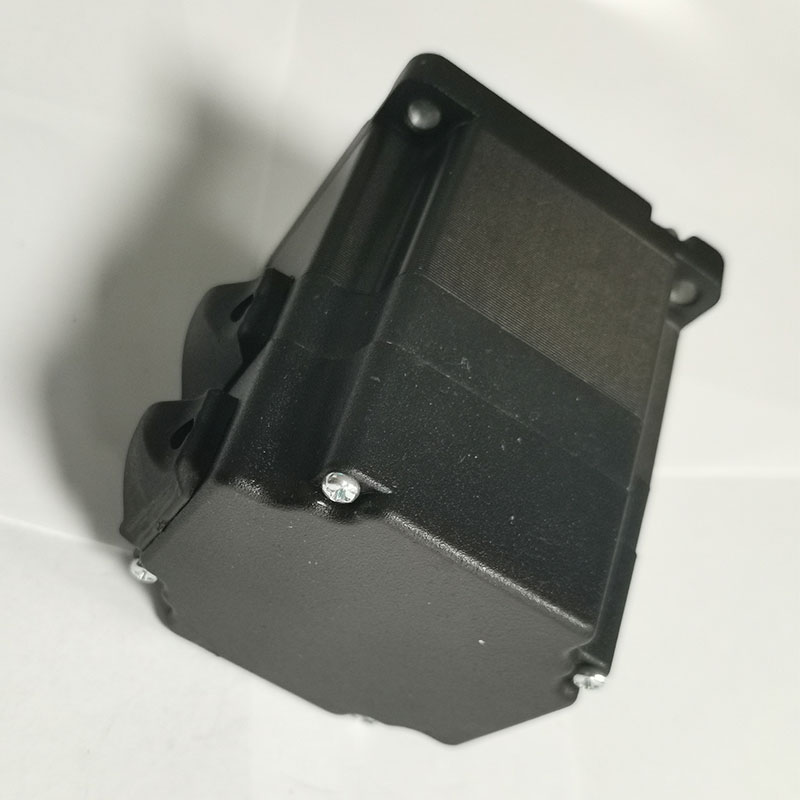

With a standard 60×60mm flange and a body length ranging from 78mm to 141mm, this 48V DC brushless motor delivers 100W to 400W of power, with a 3000 RPM rated speed and 0.32 N·m to 1.27 N·m rated torque. Built with sintered NdFeB magnets and an 8-pole, 3-phase design, it delivers superior torque stability and energy efficiency, making it ideal for medium-load industrial applications requiring long-term continuous operation.
The 48V 60mm brushless DC motor reaches a peak efficiency of 93%, delivering over 35% energy savings compared to traditional brushed motors, drastically reducing long-term operational costs for high-volume production equipment.
With a 25,000-hour design lifespan, this high torque 60mm BLDC motor maintains consistent performance in harsh industrial environments, minimizing unplanned maintenance and replacement cycles for enterprise clients.
It achieves speed fluctuations of less than ±1%, with smooth, ripple-free torque output even under variable load conditions, ensuring precise motion control for medium-power automation and processing equipment.
Optimized electromagnetic design and precision dynamic balancing keep operating noise below 50dB at full load, making it suitable for indoor industrial environments and noise-sensitive precision instrumentation.
Our 60mm brushless motor with gearbox and standard variants are widely deployed in: Mechanical processing equipment, precision testing instruments, medium-sized AGV systems, packaging machinery, textile equipment, smart home high-power actuators, and automated assembly lines.
We provide end-to-end customization for industrial buyers: custom shaft and flange machining, voltage and winding parameter adjustments, compatibility tuning for encoders, gearboxes and brakes, insulation grade upgrades, and custom prototype development. Sample MOQ starts at 3 units, with a 15-day standard lead time.
Winding: Phase U (Yellow), Phase V (Green), Phase W (Blue)
Hall Sensor: +V (Red), GND (Black), Hu (Yellow), Hv (Green), Hw (Blue)

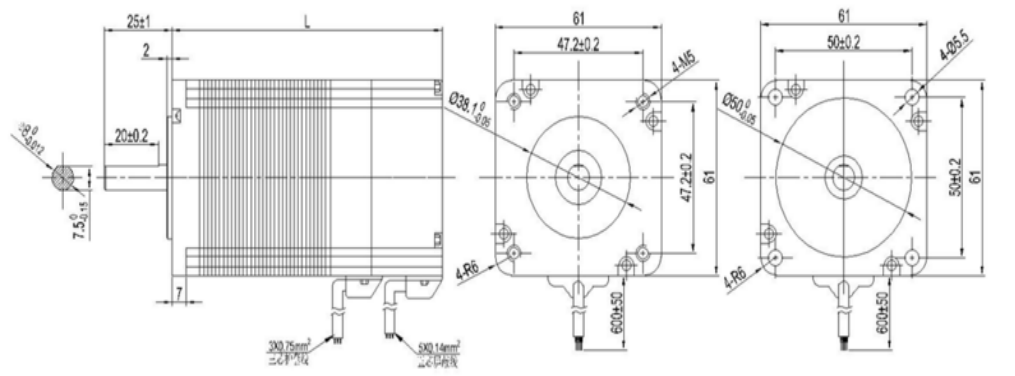

Use 4-M5 screws for the 60×60mm flange, ensure strict shaft-load concentricity to avoid bearing wear, operate within the specified temperature range, and confirm driver parameters match motor nameplate data before power-on.
The motor reaches a peak efficiency of 93%, delivering over 35% energy savings compared to traditional motors.
Yes, it can be matched with planetary gearboxes, worm gearboxes, and other reducers to amplify torque output for low-speed, high-torque applications.
Yes, we support custom voltage adjustments and winding tuning to match your power supply and performance requirements.
Whether you are an equipment manufacturer, automation system integrator, or industrial solution provider, we deliver custom 60mm brushless DC motor solutions optimized for your application. Contact us today to request a custom quote or order test samples.
