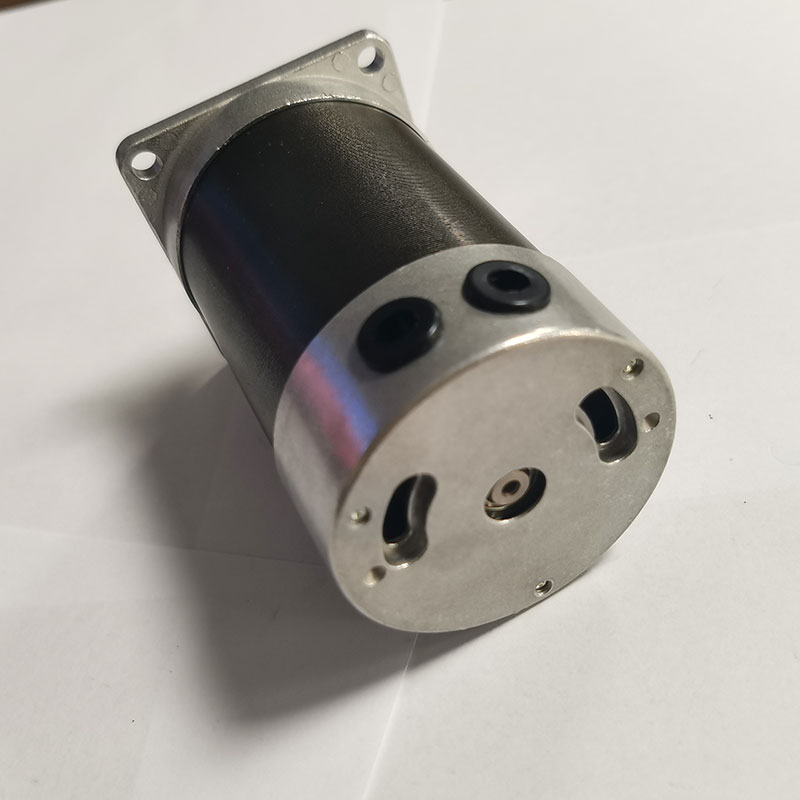

In precision motion control, transitioning from brushed to brushless DC (BLDC) motors eliminates mechanical commutation but introduces a secondary decision: rotor magnet construction. Engineering teams frequently over-specify or under-specify rotor magnets, leading to either unnecessary unit cost inflation or premature thermal demagnetization in the field. Resolving this requires a strict evaluation of the application's torque density requirements against its thermal environment and production volume. Evaluating a Bonding Brushless DC Motor against a sintered alternative requires analyzing the trade-offs between magnetic flux density, manufacturing tolerances, thermal thresholds, and production scalability. Understanding these physical differences ensures the selected motor architecture aligns precisely with system constraints, preventing catastrophic failures under load while optimizing manufacturing workflows. The choice between bonding and sintering processes fundamentally alters the magnetic, thermal, and mechanical characteristics of the final drive system.
Magnetic Strength vs. Design Flexibility: Sintered motors deliver higher peak torque density due to superior magnetic flux, while bonded motors allow for complex, multi-pole magnetization and net-shape manufacturing.
Thermal Limitations: Bonded magnets utilize polymer binders that restrict operating temperatures (typically maxing out around 120°C–150°C), whereas sintered magnets withstand significantly harsher thermal environments.
Control and Commutation Smoothness: The continuous, isotropic nature of bonded magnets facilitates sinusoidal back-EMF profiles, optimizing Field-Oriented Control (FOC), whereas sintered magnets typically yield trapezoidal profiles with higher torque ripple.
Cost at Scale: Bonding processes eliminate the need for post-production machining, drastically reducing unit costs in high-volume manufacturing compared to brittle, machine-intensive sintered alternatives.
Form Factor Impact: The choice between bonding and sintering heavily influences inertia and torque output at standard NEMA/metric frame sizes (e.g., 42mm and 57mm).
Brushless DC motors operate on three-phase AC synchronous principles. They utilize stationary stator windings and electronic commutation to generate rotational force, entirely replacing physical brushes and commutators. The rotor houses permanent magnets that interact with the electromagnetic field produced by the stator. The manufacturing process of these rotor magnets directly dictates the magnetic field geometry, cogging torque, and commutation feedback loops. Selecting the correct magnet type is foundational to achieving the desired dynamic response and efficiency. When engineers design a motion system, they must account for how the magnetic flux interacts with the stator teeth. The air gap between the rotor and stator plays a massive role in motor efficiency, and the physical properties of the magnet dictate how small that air gap can practically be without risking mechanical interference at high speeds.
Furthermore, the commutation strategy relies heavily on the magnetic profile. Whether using sensored or sensorless control, the motor controller needs clear signals to switch phases at the exact right moment. The physical construction of the rotor magnet—whether it is a single continuous ring or a series of glued segments—changes the shape of the magnetic field. This shape determines the back-Electromotive Force (back-EMF) waveform, which in turn dictates the optimal control algorithm. A mismatch between the rotor construction and the control electronics leads to excessive heat generation, acoustic noise, and reduced operational lifespan.
A bonded motor utilizes magnets created by mixing magnetic powder, typically Neodymium Iron Boron (NdFeB), with a polymer binder such as epoxy, nylon, or polyphenylene sulfide (PPS). This composite material undergoes forming methods like injection molding, compression molding, or extrusion. The structural result is a magnet with isotropic properties, allowing for flexible, seamless multi-pole magnetization patterns directly on a single continuous ring. This eliminates physical segment boundaries, reducing cogging torque and simplifying rotor assembly. The injection molding process allows for complex geometries, including integrated shafts or mounting features, directly out of the mold. This net-shape manufacturing capability drastically reduces the number of components in the final motor assembly.
The polymer matrix also provides inherent mechanical damping. While the magnetic powder itself is brittle, the binder absorbs shock and vibration, making bonded magnets highly resilient to mechanical impact. This characteristic proves highly beneficial in applications subject to sudden acceleration or deceleration profiles. Additionally, the polymer binder encapsulates the magnetic particles, offering a degree of natural corrosion resistance that bare sintered magnets lack. However, the volume occupied by the non-magnetic binder directly reduces the overall magnetic material density, which is the primary trade-off for these manufacturing and mechanical advantages.
Sintered BLDC motors rely on powder metallurgy. Magnetic particles are aligned in a strong magnetic field to achieve anisotropic properties, then heated in a vacuum furnace to fuse without melting. This process yields extremely dense, highly magnetic structures. However, the resulting discrete magnet segments are physically brittle. They require manual or automated assembly onto the rotor sleeve, application of protective coatings to prevent oxidation, and precision grinding to meet strict dimensional tolerances. The sintering process maximizes the volume of active magnetic material, resulting in the highest possible energy product for a given physical space.
Because sintered magnets are manufactured as discrete blocks or arcs, assembling a multi-pole rotor requires gluing individual segments onto a steel hub. This assembly process introduces tolerance stack-ups. Even minor variations in adhesive thickness or segment placement can cause magnetic imbalances. To counteract this, manufacturers must implement rigorous quality control and dynamic balancing procedures. Furthermore, sintered NdFeB is highly reactive to moisture and oxygen. Without robust surface treatments like nickel-copper-nickel plating or epoxy coating, the magnets will rapidly oxidize, swell, and eventually disintegrate, leading to catastrophic motor failure.
The energy product (BHmax) serves as the primary metric for magnetic strength. Sintered NdFeB typically achieves 35–52 MGOe, whereas bonded NdFeB ranges from 10–12 MGOe. This disparity directly translates to torque density. Sintered motors are required for high-acceleration, heavy-load applications where maximum magnetic flux is non-negotiable. The high flux density allows for smaller motor frames to produce the same torque as larger, less powerful motors. This is why sintered magnets dominate in aerospace and high-performance robotics where weight and space are at an absolute premium.
Conversely, bonded magnets produce a smooth, sinusoidal back-EMF waveform. This profile is ideal for quiet, low-vibration Field-Oriented Control (FOC) systems. Sintered motors often produce a trapezoidal back-EMF waveform, leading to higher torque ripple during block commutation. The continuous ring structure of a bonded magnet allows for skewed magnetization patterns, which further smooths the torque output. In applications like optical scanning or precision fluid dispensing, minimizing torque ripple is far more critical than maximizing peak holding torque.
Parameter | Bonded Magnets | Sintered Magnets |
|---|---|---|
Energy Product (BHmax) | 10 - 12 MGOe | 35 - 52 MGOe |
Back-EMF Profile | Sinusoidal (Smooth) | Trapezoidal (Higher Ripple) |
Manufacturing Tolerance | High (Net-shape) | Requires post-machining |
Mechanical Strength | Durable polymer matrix | Brittle, prone to chipping |
Corrosion Resistance | Moderate (Binder protects powder) | Low (Requires plating) |
Assembly Complexity | Low (Single ring) | High (Multiple glued segments) |
Evaluating temperature coefficients for remanence and intrinsic coercivity is critical for motor specification. Bonded motors face structural failure modes related to the polymer binder under continuous high-load operation. Excessive heat can cause softening, swelling, and physical degradation of the matrix. Sintered magnets possess a higher Curie temperature and withstand harsher thermal environments without irreversible demagnetization. Practical operating limits for bonded motors generally cap at 150°C, demanding strict thermal management in demanding duty cycles.
When a motor operates near its thermal limit, the magnetic field strength temporarily decreases, a phenomenon known as reversible demagnetization. The motor controller must push more current to maintain the same torque, which generates even more heat, creating a dangerous thermal runaway cycle. If the temperature exceeds the magnet's maximum operating threshold, irreversible demagnetization occurs. The motor permanently loses a percentage of its torque capacity. For bonded magnets, the failure mode is often mechanical before it is magnetic; the binder softens, and centrifugal forces can cause the magnet ring to deform and rub against the stator.
Reversible Demagnetization: Temporary loss of magnetic flux at elevated temperatures, fully recoverable once the motor cools down.
Irreversible Demagnetization: Permanent loss of magnetic strength due to exceeding the material's thermal threshold, requiring motor replacement.
Binder Softening: In bonded magnets, the polymer matrix loses structural integrity, leading to physical deformation under high RPM.
Adhesive Failure: In sintered rotors, the glue holding the magnet segments degrades at high temperatures, causing segments to detach.
Thermal Runaway: Increased electrical resistance in copper windings combined with reduced magnetic flux leads to exponential heat generation.
Bonded magnets achieve tight dimensional tolerances directly from the mold. This net-shape manufacturing reduces dynamic imbalance at high rotational speeds, eliminating the need for secondary balancing procedures. Sintered magnets demand extensive post-sintering machining. This introduces the risk of micro-fractures and necessitates balancing weight additions. Furthermore, sintered NdFeB is highly susceptible to corrosion, requiring anti-corrosion plating such as Ni-Cu-Ni or epoxy coatings to maintain structural integrity over the motor's lifespan.
The balancing process for sintered rotors involves spinning the assembly and either adding epoxy putty to the lighter side or drilling small amounts of material from the heavier side. Both methods add labor time and introduce potential failure points. Drilling can expose unplated magnetic material to the atmosphere, initiating corrosion. Epoxy putty can degrade over time or detach under extreme vibration. Bonded rotors bypass these issues entirely. The isotropic nature of the material and the precision of injection molding ensure that the mass is distributed evenly around the rotational axis right off the production line.

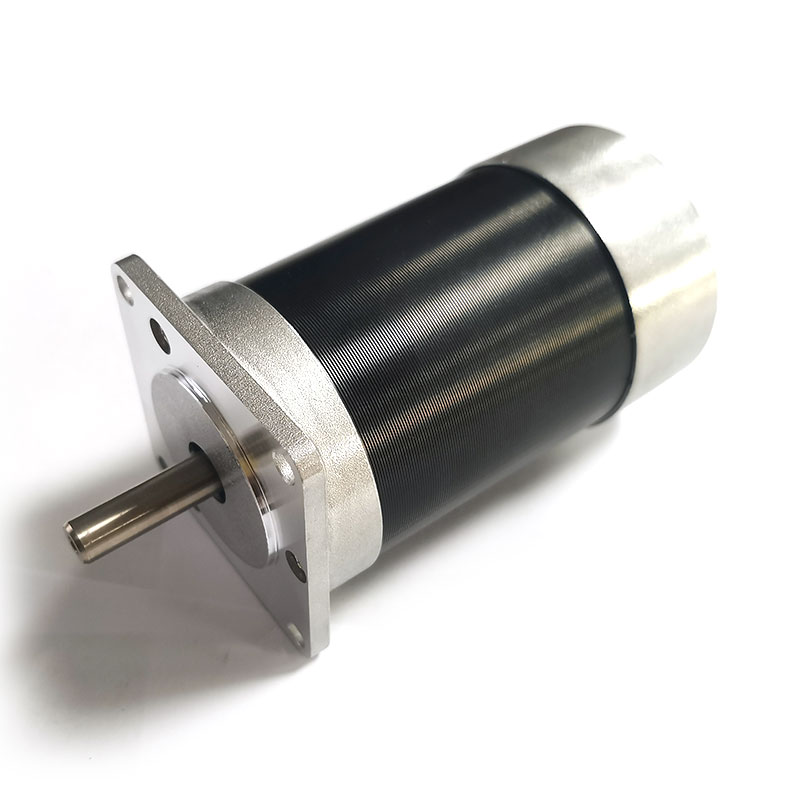

Frame size constraints dictate performance ceilings. In a 42mm footprint, space for copper windings and rotor mass is highly restricted. Specifying a 42mm sintered BLDC motor is necessary for space-constrained, high-torque applications like aerospace actuators or surgical tools requiring maximum torque-to-weight ratios. The high energy product of the sintered magnets compensates for the limited physical volume available for the rotor.
Conversely, a 42mm bonding BLDC motor is optimal for high-speed, low-vibration applications. Consumer robotics, LiDAR scanners, and medical pumps prioritize smooth rotation and low cogging torque over raw holding power. In these applications, the lower torque density is an acceptable trade-off for the acoustic benefits and simplified manufacturing. The continuous magnetic ring allows for precise speed control, which is critical for applications like spinning a LiDAR mirror at a constant velocity without jitter.
Increasing the rotor diameter alters the moment of inertia and dynamic response. The larger surface area of a 57mm bonding BLDC motor aids in heat dissipation. This enhanced thermal mass potentially offsets some limitations of the polymer binder in continuous-duty applications. The larger diameter also provides more leverage, naturally increasing the torque output even with the lower energy product of the bonded material.
From a manufacturing perspective, the 57mm bonding motor represents a cost-efficiency inflection point. It excels in automated high-volume assembly lines by eliminating manual segment placement, drastically reducing labor overhead while maintaining consistent magnetic performance. As the rotor diameter increases, the number of individual sintered segments required to build a multi-pole rotor also increases. A 57mm sintered rotor might require 8, 10, or 12 individual magnet arcs, each needing precise gluing and balancing. The bonded equivalent remains a single, easily installed ring.
Seamless multi-pole transitions on bonded magnet rings provide highly accurate magnetic transition points. This precision reduces sensor jitter and enhances Hall-effect sensor integration. Sintered magnets present distinct sensor challenges. The positional tolerances of discrete magnet segments can cause angular errors in commutation feedback. These micro-misalignments force controllers to compensate for irregular magnetic spacing, potentially degrading overall system efficiency and increasing acoustic noise during operation.
When a Hall sensor reads the transition from a North to a South pole, it triggers the controller to switch the current in the stator windings. If the physical placement of a sintered magnet segment is off by even a fraction of a millimeter, that switching event happens too early or too late. This timing error reduces the motor's efficiency and generates torque ripple. Bonded magnets, magnetized in a single fixture after molding, exhibit near-perfect pole spacing. The magnetic transitions are exactly where the controller expects them to be, resulting in highly efficient and smooth commutation.
The lower inductance and higher flux of sintered motors require robust current-limiting protections within the Electronic Speed Controller (ESC). Rapid current spikes can damage switching components if not properly managed. Bonded motors simplify controller tuning, particularly for PID loops, due to their predictable, linear torque-to-speed curves. The continuous magnetic field allows for smoother phase transitions, reducing the computational load on the microcontroller and enabling more straightforward drive electronics architecture.
Field-Oriented Control (FOC) algorithms rely on complex mathematical transformations (Clarke and Park transforms) to maintain the stator magnetic field at exactly 90 degrees to the rotor magnetic field. These algorithms assume a perfectly sinusoidal back-EMF waveform. Because bonded motors naturally produce a waveform much closer to a pure sine wave than sintered motors, the FOC algorithm operates more efficiently. The controller spends less processing power compensating for harmonic distortions, allowing for higher control loop frequencies and more responsive motor behavior.
Bonded architectures excel under specific operational and economic conditions. Engineers should specify these motors when project parameters align with the following criteria:
High-volume production runs (10,000+ units) where unit cost and assembly automation are primary constraints.
Applications requiring ultra-low cogging torque, achieved via skewed or highly optimized multi-pole magnetization on a single ring.
Environments with controlled ambient temperatures and predictable duty cycles that do not stress the polymer binder.
Systems utilizing Field-Oriented Control (FOC) that benefit from a pure sinusoidal back-EMF profile.
Applications where acoustic noise and mechanical vibration must be kept to an absolute minimum.
Sintered architectures remain the standard for extreme performance requirements. They are the correct engineering choice when applications demand the following:
Extreme torque density, high starting torque, and rapid dynamic response under heavy loads.
Harsh environments characterized by high ambient temperatures, high vibration, or poor heat sinking capabilities.
Lower volume, high-margin industrial, military, or aerospace applications where performance supersedes component cost.
Space-constrained designs where the motor frame size cannot be increased to achieve the required torque.
Applications requiring rapid acceleration and deceleration profiles that demand maximum magnetic flux.
The primary risk with bonded motors is irreversible demagnetization or binder deformation during rotor stall conditions. Excessive current draw generates heat that rapidly exceeds the polymer's thermal threshold. Mitigation requires implementing strict current limiting via the motor controller. Integrating real-time thermistor feedback directly into the stator windings allows the drive to throttle current before critical temperatures are reached. Optimizing heat-sink paths through the motor housing further stabilizes the operating temperature.
Engineers must also consider the duty cycle. A bonded motor might easily handle a high-torque load for a few seconds, but continuous operation at that same load will cause thermal failure. Thermal modeling during the design phase is non-negotiable. By simulating the heat transfer from the stator windings across the air gap to the rotor, designers can accurately predict the maximum internal temperature and adjust the motor specifications or cooling mechanisms accordingly.
Sintered magnets carry the risk of structural chipping during high-RPM operations. This can lead to internal debris and catastrophic motor lock-up. They also exhibit high susceptibility to atmospheric corrosion. Mitigation involves specifying advanced epoxy encapsulation for the rotor assembly. Utilizing automated magnetic assembly fixtures ensures precise placement without mechanical shock. Ensuring hermetic sealing or applying conformal coatings is mandatory for motors operating in humid, corrosive, or marine environments.
To prevent magnet detachment at high speeds, engineers often employ a retention sleeve. This is a thin cylinder of non-magnetic material, such as stainless steel, carbon fiber, or Kevlar, pressed or wrapped over the assembled rotor. The sleeve counteracts the centrifugal forces that try to pull the heavy sintered segments away from the hub. While effective, this sleeve increases the effective air gap between the rotor and stator, slightly reducing the motor's overall efficiency. This trade-off must be factored into the initial magnetic circuit calculations.
The choice between bonding and sintering is not a matter of absolute superiority, but a strict alignment of magnetic energy requirements with thermal, control, and economic constraints. Default to a bonded architecture for cost-sensitive, high-speed, high-volume, or low-noise applications. Pivot to a sintered motor when the application's torque, acceleration, or thermal demands strictly exceed the physical limits of polymer-bound magnets.
Define peak torque, maximum operating temperature, and driving controller architecture immediately.
Request B-H curve data from manufacturers for both magnet types to verify flux density under load.
Procure prototypes in the target frame size for rigorous thermal validation testing within the actual application environment.
Evaluate the total assembly workflow to determine if the net-shape advantages of bonded magnets offset their lower torque density.
A: The primary advantage is net-shape manufacturing, which significantly lowers costs in high-volume production. Bonded magnets allow for complex multi-pole magnetization patterns on a single continuous ring, minimizing cogging torque and simplifying rotor assembly without requiring post-machining.
A: It depends strictly on the torque requirements. A bonded motor produces less peak torque in the same 42mm footprint due to lower magnetic flux density. If the application requires high torque-to-weight ratios, the sintered motor remains necessary.
A: Bonded magnets use polymer binders that typically degrade or soften between 120°C and 150°C, risking irreversible damage. Sintered magnets withstand much higher operating temperatures and harsh thermal environments without losing their magnetic properties.
A: Bonded magnets are isotropic and manufactured as a single continuous ring. This seamless structure facilitates a smooth, sinusoidal back-EMF profile, which is ideal for Field-Oriented Control (FOC) and results in lower vibration and acoustic noise.
A: Yes, sintered NdFeB magnets are highly brittle and susceptible to chipping or micro-fractures during assembly or high-vibration operation. They also require protective coatings like Ni-Cu-Ni to prevent rapid atmospheric corrosion.
