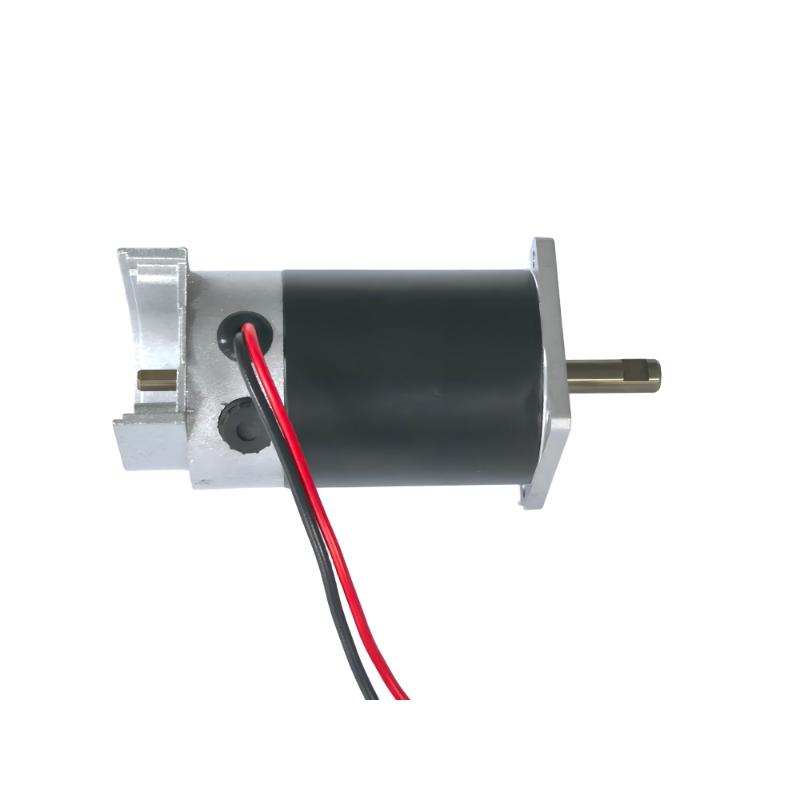

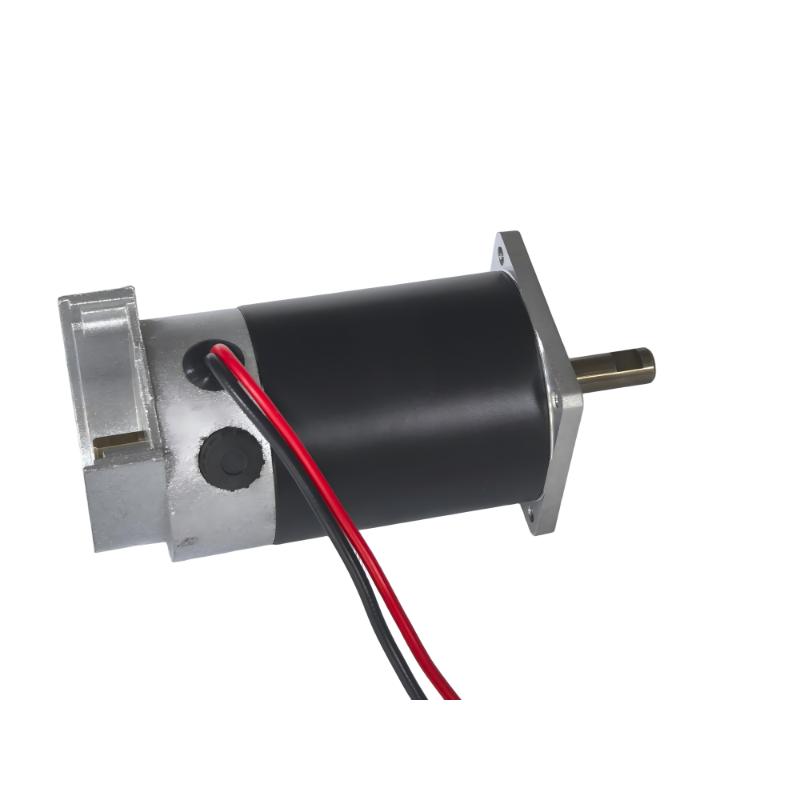

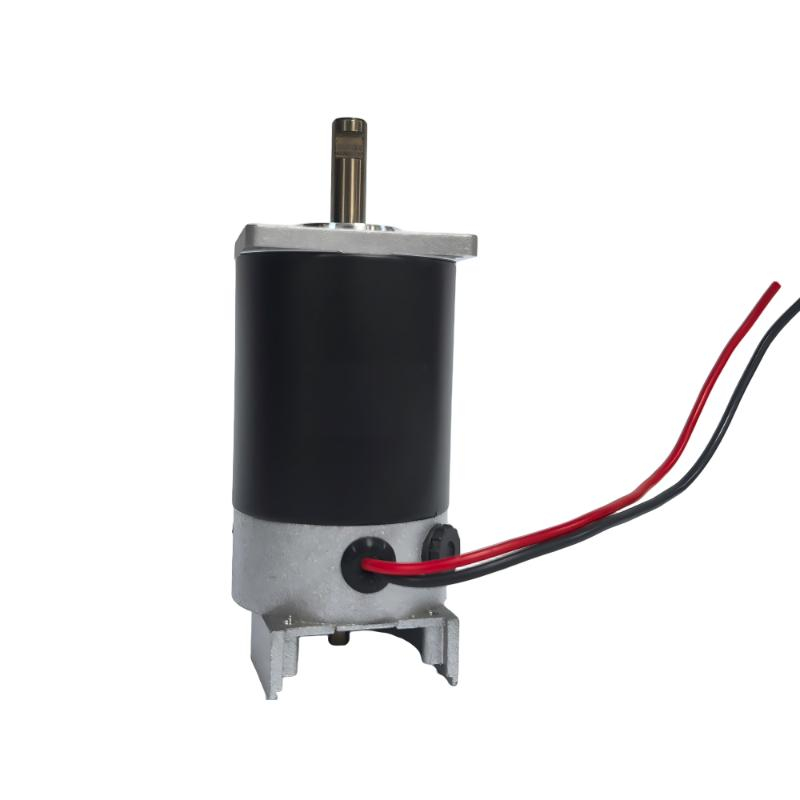

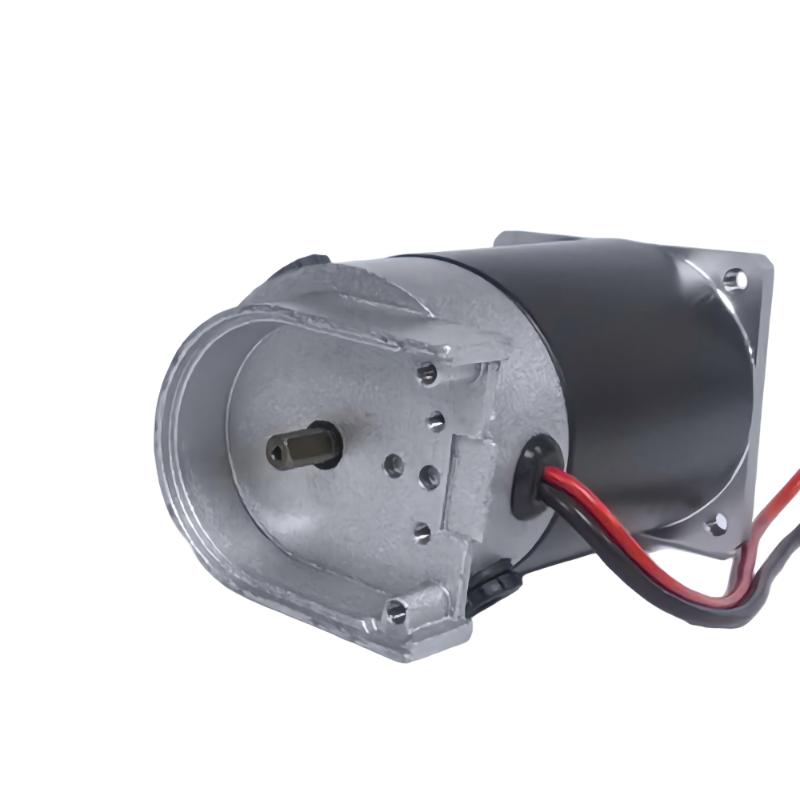

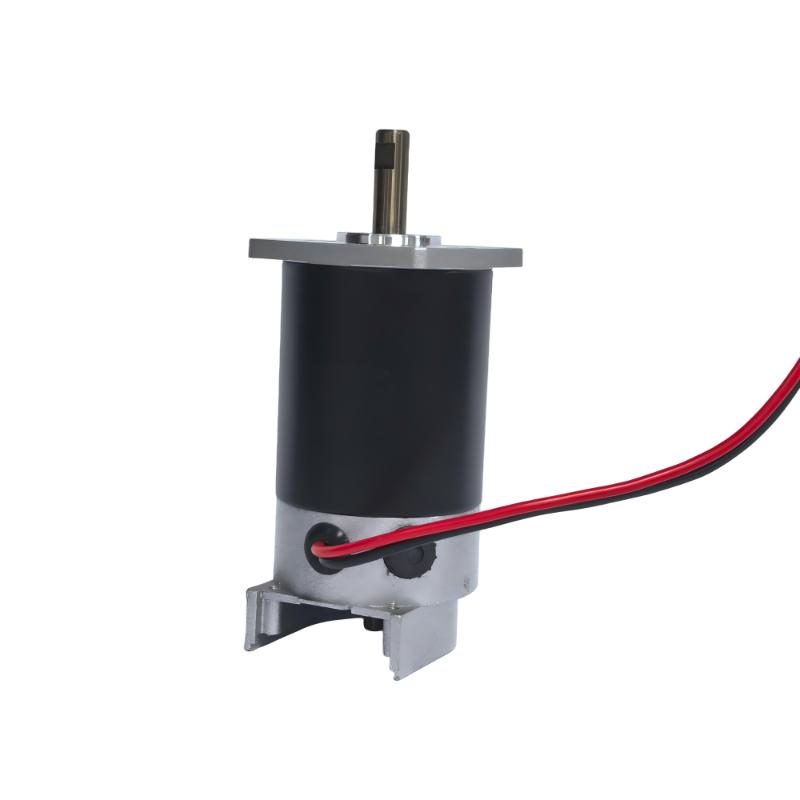

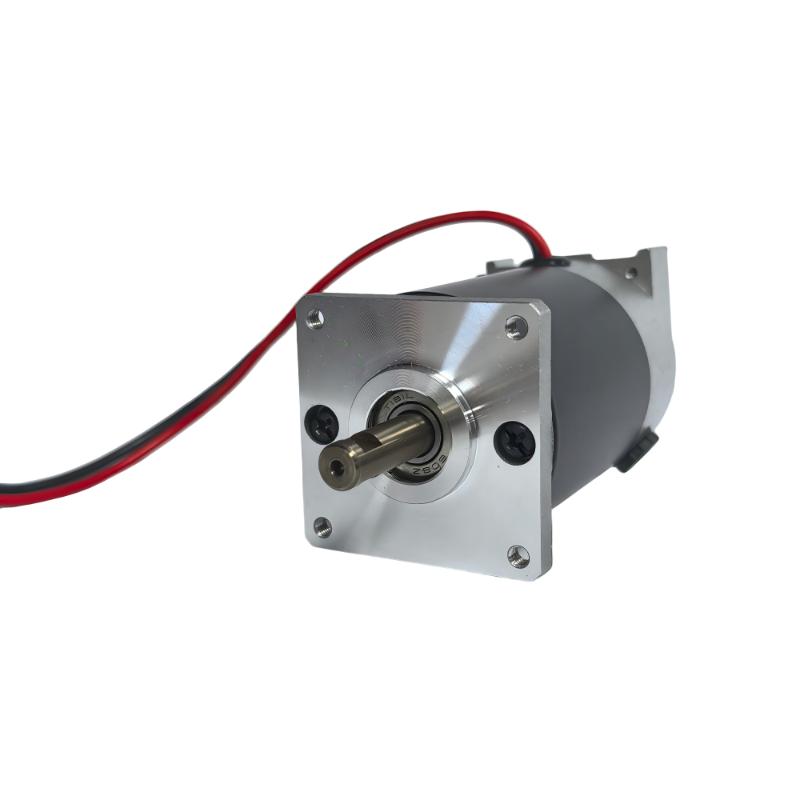

This 50 × 50 mm brushed DC motor offers fast response, stable operation, and easy installation. Its simple control circuit reduces system complexity and cost. Using carbon brushes and a commutator for mechanical commutation, it delivers stable torque and straightforward speed control for industrial and automotive auxiliary applications.
| Quantity: | |
|---|---|
Electrical Specifications | ||||||||
Model | Rated Voltage (V) | L (mm) | No-Load Speed (RPM) | No-Load Current (A) | Rated Speed (RPM) | Rated Current (A) | Rated Torque (N·m) | Rated Power (W) |
50ZY24-026 | 24 | 82 | 4000 | 0.6 | 3000 | 1.9 | 0.06 | 19 |
50ZY24-039 | 24 | 69 | 4850 | 0.6 | 3500 | 2.8 | 0.08 | 29 |
50ZYN82-2448 | 24 | 83 | 4800 | 0.7 | 3100 | 5 | 0.15 | 48 |
50ZYT98-2430 | 24 | 98 | 3000 | 0.4 | 2100 | 2.8 | 0.13 | 28 |
50ZYT100-2460 | 24 | 100 | 6000 | 1 | 4900 | 5 | 0.13 | 67 |
General Specifications | |
Item | Specification / Description |
Magnet | Ferrite / Nd-Fe-B |
Insulation Class | B 130 °C / F 155 °C |
Temperature Rise | ≤ 75 K |
Environment Temperature & Humidity | –15 °C ~ +35 °C, 45 % ~ 75 % |
Ingress Protection & Cooling | IP50 及以下 / IC00 |
Installation | IMB14 |
Shaft OD | Φ8.0 mm MAX |
Bearing | Ball |
Winding | |
1）Voltage | 12 – 90 V DC |
2）Speed | 1 000 – 5 000 rpm |
3） Power | 12 – 80 W |
Components | Encoder Toothed Pulley Brake |
Our Series 50 Brushed DC Motor is a robust, high-torque DC drive solution engineered for heavy-load and high-inertia industrial and automotive applications. Featuring a 50×50 mm end cap flange and 82–100 mm body length, this motor is optimized for 24V nominal operation, with a 19–67 W power range, rated speeds of 3,000–4,900 rpm, and a rated torque range of 0.06–0.13 N·m. Built with a proven brushed architecture, it delivers simplified control, exceptional startup torque, and long-term durability, making it the ideal choice for automotive tier suppliers, industrial equipment manufacturers, and high-volume OEMs seeking reliable heavy-duty motion control.
This 50mm brushed DC motor delivers exceptional startup torque, enabling reliable, consistent startup under heavy loads and high-inertia conditions. Its optimized magnetic circuit and high-grade ferrite/Nd-Fe-B magnets maximize torque output, making it perfectly suited for applications requiring frequent loaded start/stop cycles and continuous low-speed torque delivery.

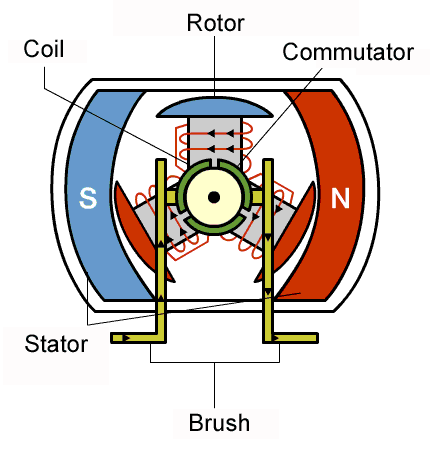

Engineered for long-term industrial operation, this high torque brushed DC motor features an optimized carbon brush, commutator, and spring structure that ensures smooth current transfer, reduced friction, and minimal electrical noise during operation. Precision ball bearings, high-temperature insulation, and a robust housing reduce wear, extend service life, and minimize maintenance requirements for continuous-use applications.

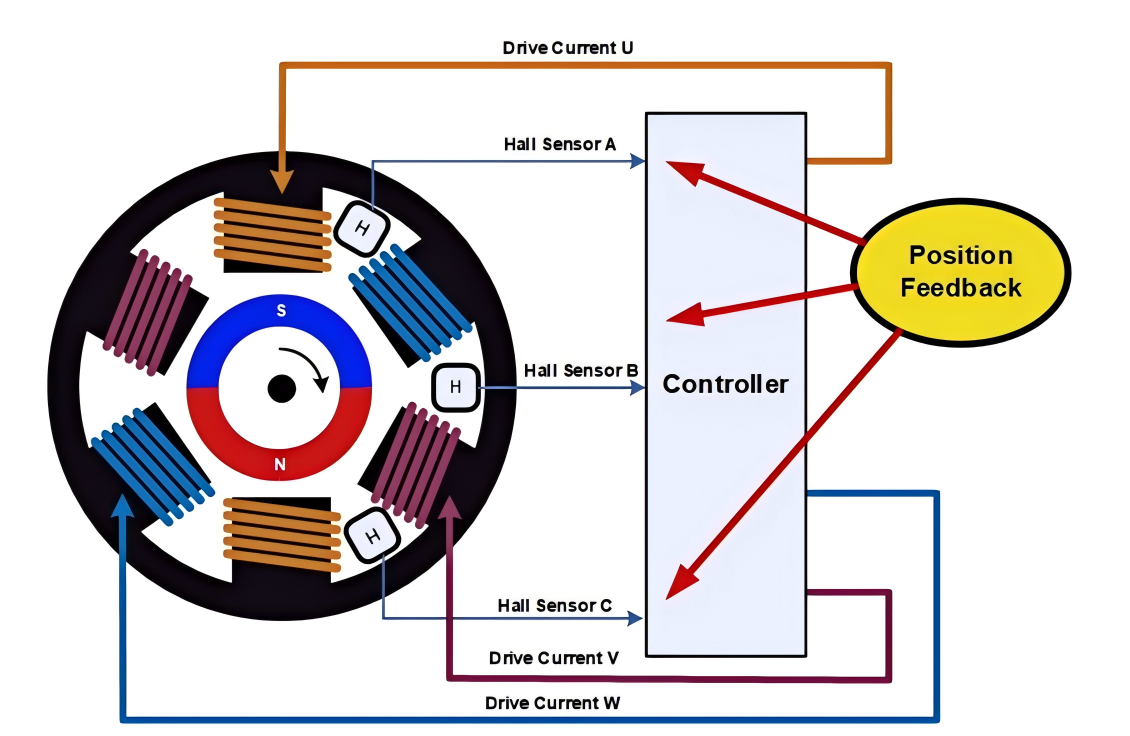

Unlike brushless DC motors that require complex drive electronics, our 24V high torque DC motor uses simple mechanical commutation, enabling straightforward speed control via PWM signals and easy direction reversal with polarity changes. Its modular design allows for simple brush and commutator servicing, reducing downtime and long-term maintenance costs for industrial and automotive applications.
With a maximum temperature rise of ≤75 K, B/F class insulation, and an optimized thermal design, this heavy load brushed DC motor maintains stable performance even during continuous full-load operation. Its IP50 ingress protection rating ensures reliable operation in standard industrial environments, with a wide customizable voltage range of 12–90 V DC for global system compatibility.
Our industrial DC drive motor is optimized for a wide range of heavy-duty industrial, automotive, and commercial applications, including mechanical valve actuation for industrial fluid systems, automotive window wiper and transmission systems, industrial pumps and conveyor drives, material handling equipment, large household appliance drive systems, and auxiliary motion control for heavy industrial machinery. It is also widely adopted by automotive tier suppliers and OEMs for heavy-duty auxiliary drive applications.
We offer full customization for our heavy duty DC motor to meet unique project requirements. Available modifications include custom winding configurations (12–90 V DC voltage, 1,000–5,000 rpm speed, 12–80 W power range), custom shaft dimensions and machining, compatibility with encoders, toothed pulleys, and brake systems, tailored insulation class ratings, and custom lead wire and connector options. All custom motors comply with CE and RoHS standards, with a minimum order quantity of 3 units.

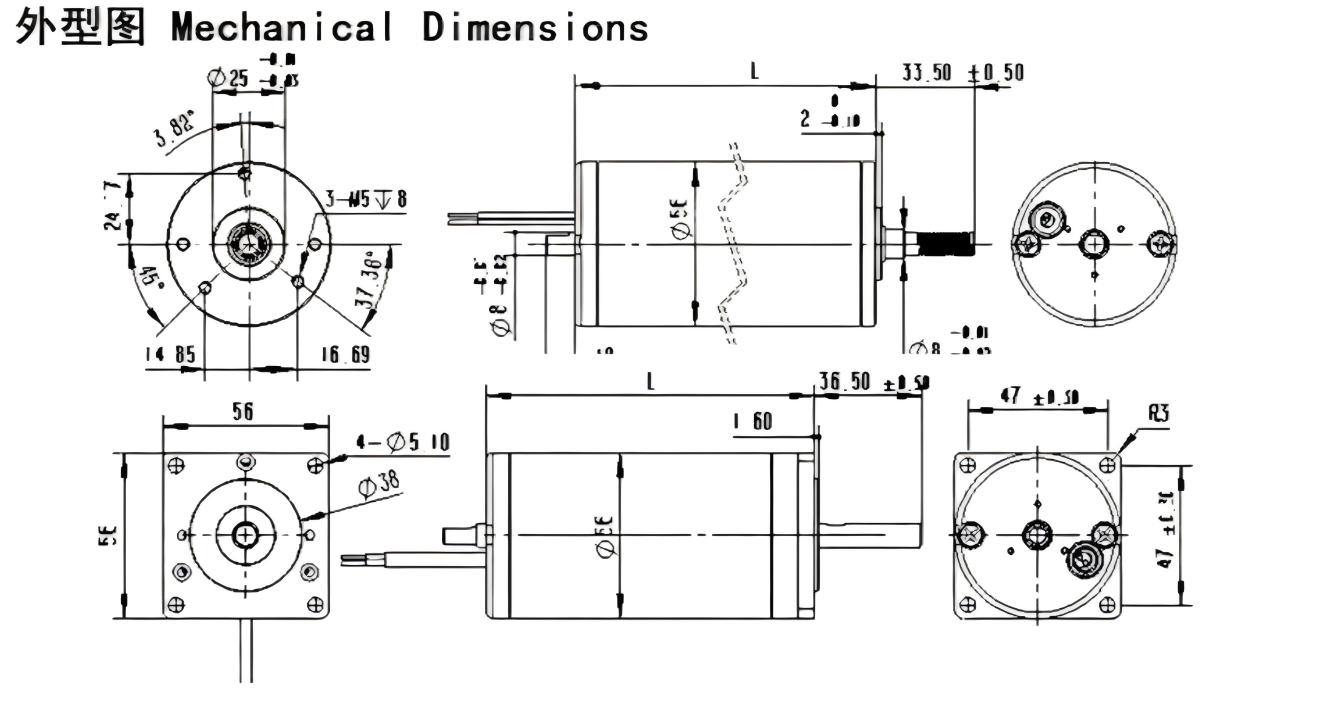

This automotive brushed DC motor uses a simple two-wire DC connection, with polarity reversal for direction changes and PWM signal input for precise speed control. It is designed for IMB14 flange mounting, with standard mounting holes for secure, stable installation in industrial and automotive assemblies. The maximum shaft OD is Φ8.0 mm, with strict alignment requirements to minimize radial load and extend bearing life. Operate within an ambient temperature range of –15 °C ~ +35 °C and 45% ~ 75% humidity for optimal performance and service life, with regular brush inspection for continuous-use applications.
We operate a fully integrated manufacturing facility in Changzhou, Jiangsu, with complete control over production and quality, and welcome on-site factory visits.
The minimum order quantity is 3 units for both standard and custom-configured motors.
All our Series 50 Brushed DC Motor units are fully CE and RoHS compliant, with full batch inspection documentation available for every order.
In-stock units ship within 1–2 business days, sample orders take 10–14 business days, and bulk production orders are fulfilled within 20–25 business days.
Yes, we provide competitive tiered pricing for high-volume orders, with discounts based on order quantity and customization requirements.
Whether you are an automotive tier supplier, industrial equipment manufacturer, or OEM design engineer seeking a reliable heavy-duty DC motor solution, our team is ready to deliver a tailored motion control package for your project. Contact us today to request a free product datasheet, sample unit, or custom quote, and let our engineering team support your product development with industry-leading heavy-duty motor solutions.
