Despite the aggressive industry push toward brushless technology and advanced electronic controls, the traditional mechanically commutated motor continues to dominate specific industrial, commercial, and consumer sectors. Engineers, system architects, and procurement teams face intense pressure to adopt newer brushless technologies by default. This bias often stems from marketing hype rather than engineering necessity. It frequently leads to over-engineering, unnecessary controller expenses, and bloated project budgets for applications that simply do not require complex commutation.

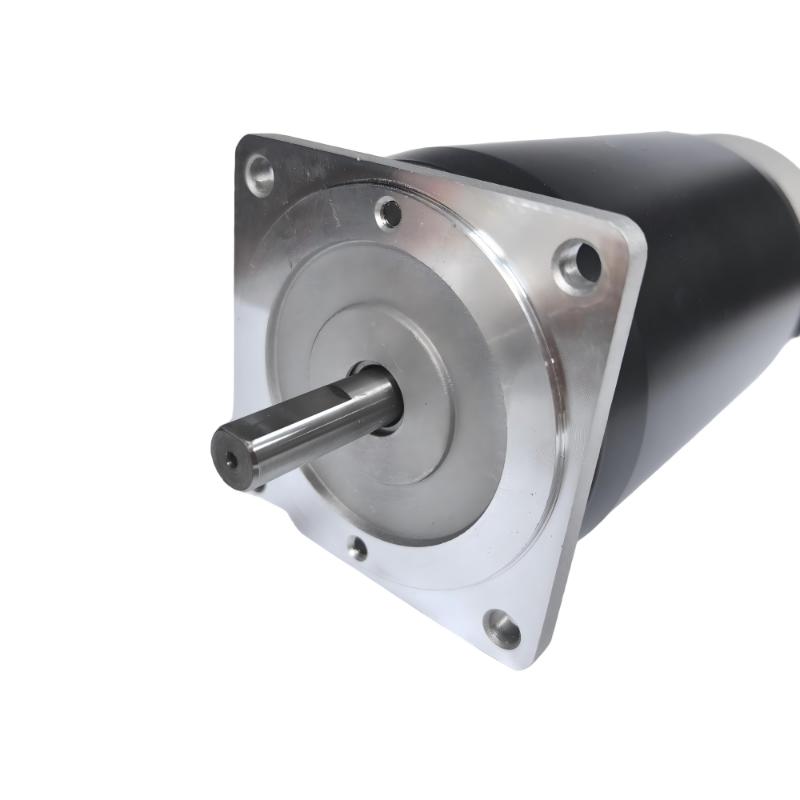

When assessed through the lenses of torque requirements, control simplicity, and overall reliability, the Brushed Motor frequently emerges as the superior choice. It offers a straightforward mechanical solution to complex motion problems. By eliminating the need for delicate microprocessors and intricate feedback loops, these motors provide robust performance in environments where sophisticated electronics might fail. Understanding the specific operational profiles that benefit from mechanical commutation allows engineering teams to optimize performance while keeping project complexity manageable.
Cost-to-Performance Ratio: Lower initial unit costs and the elimination of complex electronic speed controllers (ESCs) make brushed technology ideal for budget-constrained or high-volume manufacturing projects.
Control Simplicity: Direct DC voltage control provides immediate, linear speed and torque adjustments without requiring microprocessors, sensors, or complex programming.
High Peak Torque: Superior starting torque capabilities inherently suit applications requiring rapid acceleration or the ability to overcome high initial inertia under heavy loads.
Predictable Maintenance: While physical brush wear is an unavoidable reality, maintenance schedules are highly predictable, and brush replacement is a straightforward process in accessible environments.
Lifespan Alignment: Selecting a motor whose physical operational limits match the natural lifecycle of the host device prevents costly over-specification.
Both brushed and brushless motors function on the exact same fundamental electromagnetic principles. They rely on the magnetic attraction and repulsion between stator and rotor coils to generate rotational force. When current passes through the windings, it creates a magnetic field that interacts with permanent magnets. This interaction forces the rotor to turn. The physics of generating torque remains constant across both motor types. You will find that the core magnetic circuit design dictates the ultimate power density.
The divergence lies entirely in how the motor achieves commutation. A brushed design achieves this electromagnetic attraction and repulsion mechanically. It uses physical contacts, specifically carbon or graphite brushes pressing against a rotating commutator. As the rotor turns, the commutator mechanically reverses the current direction in the armature windings. This ensures continuous rotation without requiring complex, sensor-driven electronic switching algorithms. The mechanical nature of this process provides inherent reliability in systems that lack sophisticated control infrastructure. Field technicians can easily diagnose mechanical commutation issues with a simple multimeter.
One of the most significant engineering advantages of this technology is its direct, predictable correlation between applied voltage, rotational speed, and torque output. As you increase the voltage applied to the terminals, the motor speed increases proportionally. Conversely, as the mechanical load on the shaft increases, the motor draws more current to produce the necessary torque, causing a linear drop in speed. This predictable performance curve allows engineers to model system behavior accurately without complex simulations. You can map out the entire performance envelope using basic algebra.
This linear performance curve drastically simplifies motion control design. Engineers can bypass complex Pulse Width Modulation (PWM) setups or sensor-based feedback loops when precise, sub-millimeter positioning is not the primary goal. You can easily vary the speed-to-torque ratio using simple, low-cost voltage-regulating speed control circuits. A basic rheostat or a simple variable DC power supply is often sufficient to achieve the desired operational parameters. This simplicity reduces potential failure points within the control architecture. It also drastically cuts down on software development time during the prototyping phase.
Mechanical commutation provides a distinct mechanical advantage for delivering maximum torque at zero RPM. When voltage is initially applied, the armature is stationary, and there is no back electromotive force (EMF) to oppose the current flow. This allows a massive surge of current into the windings, generating an immediate and powerful magnetic field. Consequently, the motor produces its absolute highest torque exactly when it needs to start moving. This is a physical reality that electronic systems struggle to replicate without massive current overhead.
This characteristic dictates the success criteria for applications requiring immediate, forceful actuation. Systems like heavy-duty winches, traction drives, and lifting mechanisms rely heavily on this initial burst of power. They must overcome high initial inertia under heavy static loads. Electronic commutation systems often struggle with low-speed torque delivery unless paired with expensive, high-resolution encoders and complex vector control algorithms. The mechanical commutator handles these high-current starting conditions naturally and robustly.
Performance Metric | Mechanical Commutation | Electronic Commutation |
|---|---|---|
Starting Torque (0 RPM) | Maximum available, instantaneous | Requires sensor feedback for high torque |
Control Complexity | Low (Direct DC voltage) | High (Requires ESC and programming) |
Speed/Torque Curve | Highly linear and predictable | Variable based on controller programming |
Overload Tolerance | High (Can handle short thermal spikes) | Low (Electronics fault out quickly) |

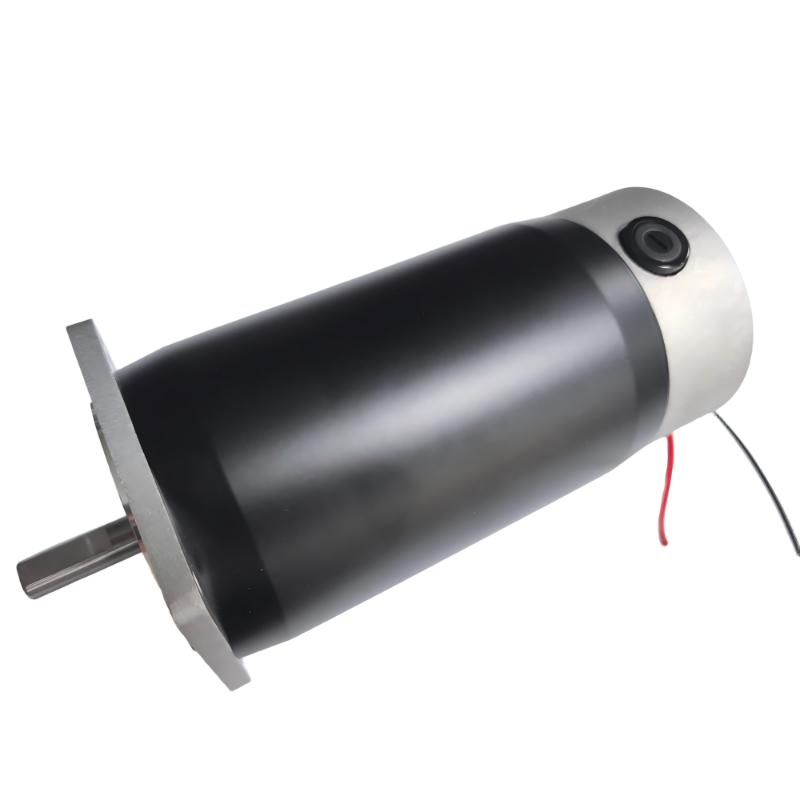

Specifying a heavy duty brushed DC motor requires analyzing the operational environment and load profile. These motors excel in conveyor systems, industrial linear actuators, and heavy material handling equipment. The primary criteria include the need for high starting torque, tolerance for variable loads, and the ability to operate continuously under significant mechanical stress. The robust physical construction of the armature and commutator allows these units to absorb sudden load spikes without stalling or requiring electronic fault resets. You will often see these deployed in rugged sawmill operations or aggregate sorting facilities.
Furthermore, brushed systems demonstrate exceptional tolerance in rugged environments. Complex drive electronics required for brushless systems are highly susceptible to failure from severe vibration, temperature extremes, or sudden voltage spikes. A purely mechanical motor lacks these delicate semiconductor components on the unit itself. When deployed in mining equipment, agricultural machinery, or heavy manufacturing floors, the absence of onboard microprocessors significantly increases the overall system resilience. A simple contactor relay is often all that is needed to drive massive industrial loads.
The integration of a compact brushed DC motor is highly prevalent in medical devices, automotive power seats, and consumer robotics. In these applications, internal physical space is at an absolute premium. Engineers must fit the power source, the actuator, and the mechanical linkages into tight volumetric constraints. The self-contained nature of a mechanically commutated motor makes it an ideal fit for these restrictive design envelopes. You do not need to allocate chassis space for external driver boards.
Significant volumetric space savings are achieved at the system level by eliminating bulky external controllers. Brushless systems require an external ESC, which demands its own mounting space, thermal management, and complex wiring harnesses. A brushed unit requires only two power leads connected directly to a DC source or a simple relay. This minimizes the wiring harness size, reduces routing complexity, and frees up critical space within the device housing for other essential components. In automotive door panels, this space saving is absolutely critical for accommodating crash safety structures.
Many systems require consistent, uninterrupted force without the need for dynamic speed changes or complex motion profiles. Outlining the use cases for a steady output brushed motor reveals its dominance in these specific areas. Applications like fluid transfer pump systems, automated dispensing units, and HVAC damper actuators rely on predictable, continuous rotation. The load remains relatively constant, and the primary requirement is reliable, steady actuation over a defined period. You set the voltage, and the motor does the work.
In these scenarios, simple on/off or variable voltage control is entirely sufficient. A fluid pump filling a reservoir does not require microsecond-level speed adjustments or precise rotor position tracking. It simply needs to turn on, deliver the fluid at a steady rate, and turn off when a limit switch is triggered. Applying a complex, sensor-driven motor to this type of predictable operation adds unnecessary complexity and introduces potential electronic failure modes without providing any tangible performance benefit. Keep the control loop as simple as the mechanical task demands.
The engineering concept of host device lifecycle matching is critical for avoiding over-engineering. The goal is to select components whose operational lifespan closely aligns with the expected useful life of the entire product. Specifying a motor that will outlast the mechanical chassis or the primary power source by a factor of ten represents a misallocation of engineering resources and budget. You must design for the actual use case, not an idealized infinite lifespan.
An expensive brushless motor boasting a 10,000-hour lifespan is a poor financial choice for devices designed for intermittent use or disposability. Consumer power tools, domestic appliances, and single-use medical devices typically see only a few hundred hours of actual runtime over their entire lifecycle. A reliable brushed motor can easily match or exceed this host device's total operational life. It provides the necessary performance and durability for the intended application window without inflating the manufacturing budget. This pragmatic approach keeps consumer goods affordable and manufacturing lines profitable.
Comparing the upfront unit costs of brushed versus brushless motors at scale reveals a stark contrast. The manufacturing process for mechanically commutated motors is highly mature, optimized, and heavily automated. This results in a significantly lower base unit cost. For high-volume consumer goods, automotive accessories, and standard industrial actuators, this initial cost advantage is a primary driver for specification. You can often source three mechanically commutated motors for the price of one electronically commutated equivalent.
Beyond the unit cost, engineers must factor in the hidden costs associated with brushless systems. These include the mandatory drive electronics, specialized multi-wire harnesses, programming time, and extensive engineering integration hours. You must write, test, and debug firmware to control the electronic commutation. If the application does not explicitly demand zero maintenance, ultra-high speeds, or precise servo positioning, the added complexity and cost of a brushless system cannot be justified. The engineering hours spent tuning PID loops are often better spent optimizing the mechanical drivetrain.
The global availability and standardization of brushed motor configurations provide significant logistical advantages. These motors are manufactured to widely accepted international standards, including specific NEMA frame sizes, standard shaft diameters, and uniform mounting bolt patterns. This standardization allows procurement teams to source equivalent replacement units from multiple global vendors easily, ensuring continuous production even during localized supply chain disruptions. You are never locked into a single proprietary vendor ecosystem.
Furthermore, specifying these motors achieves reduced supply chain risk by removing reliance on semiconductor components. Brushless controllers require microcontrollers, MOSFETs, and specialized driver ICs. Global semiconductor shortages can severely impact the production of these controllers, halting entire product lines. A purely mechanical motor relies on copper, steel, and carbon. These are materials with highly stable, robust global supply chains. This material simplicity insulates production schedules from volatile electronics markets.
Engineers must acknowledge the primary technical limitation of this technology: physical friction, carbon brush degradation, and commutator wear. Because the brushes must maintain physical contact with the rotating commutator to transfer current, they will inevitably wear down over time. This wear generates carbon dust and eventually requires the brushes to be replaced to maintain optimal motor performance. You must design maintenance access panels into your equipment chassis.
Effective mitigation strategies revolve around specifying the correct brush material based on the duty cycle, load, and operating environment. Carbon brushes offer excellent durability for general-purpose use. Graphite brushes provide better lubrication for high-speed applications. Precious metal brushes are utilized in low-voltage, low-current applications to minimize contact resistance and electrical noise. By analyzing the specific operational profile, engineers can select a brush compound that maximizes maintenance intervals and ensures reliable operation. Proper spring tension on the brush holders is also critical for maximizing contact life.
Another implementation reality is the generation of electrical noise. The mechanical switching of current at the commutator inherently causes minor electrical arcing. This arcing generates Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), which can interfere with nearby sensitive electronics, communication arrays, or sensor networks. Additionally, the friction between the brushes and the commutator generates localized heat that must be managed. You cannot ignore thermal buildup in enclosed chassis designs.
Standard mitigation protocols are highly effective at addressing these issues. Proper metallic shielding around the motor housing contains radiated emissions. The implementation of filtering capacitors and ferrite beads across the motor terminals suppresses conducted electrical noise back into the power supply. For thermal management, adequate ventilation design, including integrated cooling fans or heat sinks, ensures proper thermal dissipation. This prevents premature commutator degradation and extends the overall unit lifespan. A simple RC snubber circuit often resolves 90% of conducted emissions issues.
Issue | Source | Mitigation Strategy |
|---|---|---|
Brush Wear | Physical friction against commutator | Select application-specific brush material (carbon, graphite, precious metal) |
Radiated EMI | Commutator arcing | Install grounded metallic motor housing shields |
Conducted EMI | Electrical noise feeding back into power lines | Solder ceramic capacitors across motor terminals |
Thermal Buildup | I2R losses and mechanical friction | Design adequate chassis ventilation and specify internal cooling fans |
Selecting the right motor requires a systematic approach based on concrete application requirements. Use the following checklist to identify when mechanical commutation is the optimal choice:
High cost sensitivity dictates a strict limit on component budgets.
The application requires simple two-wire control without complex programming.
The operating environment is hostile to delicate electronics, featuring high vibration or voltage spikes.
The motor's expected lifespan perfectly matches the host device's lifecycle profile.
The application features accessible maintenance panels allowing for straightforward brush replacement.
The system requires maximum starting torque to overcome heavy static loads immediately.
The engineering team lacks the bandwidth to develop custom firmware for electronic speed controllers.
Conversely, certain operational profiles strictly prohibit the use of mechanical commutation. Use this checklist to identify when to route your design toward alternative technologies:
Continuous 24/7 high-speed operation where rapid brush wear would cause unacceptable downtime.
Explosive or highly flammable environments where commutator sparking presents a severe safety risk.
Applications with strict zero-maintenance requirements in inaccessible locations.
Systems requiring precise, multi-axis servo positioning and sub-millimeter accuracy.
Cleanroom environments where carbon dust generation from brush wear is strictly prohibited.
The mechanically commutated motor is a highly specialized, reliable component that offers unmatched simplicity and cost-effectiveness when matched with the correct operational profile. By understanding the linear torque-speed relationship and leveraging the high starting torque, engineers can design robust systems without unnecessary electronic overhead. Base your final motor selection on a rigorous evaluation of duty cycle, controller budget, environmental constraints, and starting torque requirements.
To move forward with your design integration, follow these actionable steps:
Consult with an application engineer to verify your specific load and duty cycle requirements.
Request specific torque-speed performance curves to ensure the motor meets your starting inertia demands.
Order a prototype unit for real-world load testing within your actual mechanical chassis.
Evaluate your control architecture to confirm that simple voltage regulation meets your operational needs.
A: The lifespan varies heavily based on duty cycle, load, and operating environment. Generally, industrial units operate between 2,000 and 5,000 hours before requiring brush replacement. With regular maintenance and proper thermal management, the physical motor chassis and armature can last tens of thousands of hours.
A: Yes. Because they lack delicate onboard microprocessors and complex drive electronics, they are highly resilient to severe vibration, physical shocks, and extreme temperature fluctuations. Proper sealing and shielding further enhance their durability in rugged industrial or agricultural settings.
A: At zero RPM, there is no back electromotive force to restrict current flow. The mechanical commutator allows maximum current to flood the armature windings immediately upon startup. This generates an intense magnetic field, delivering peak torque exactly when the motor needs to overcome static inertia.
A: Absolutely. They are frequently used in portable tools and medical devices because they do not require external electronic speed controllers. This saves significant physical space and reduces overall device weight, making them ideal for compact, battery-operated designs.
A: Speed control is highly straightforward. Because speed is directly proportional to the applied voltage, you can adjust the RPM using a simple variable DC power supply, a basic rheostat, or a low-cost voltage-regulating circuit. No complex programming or sensor feedback is required.
