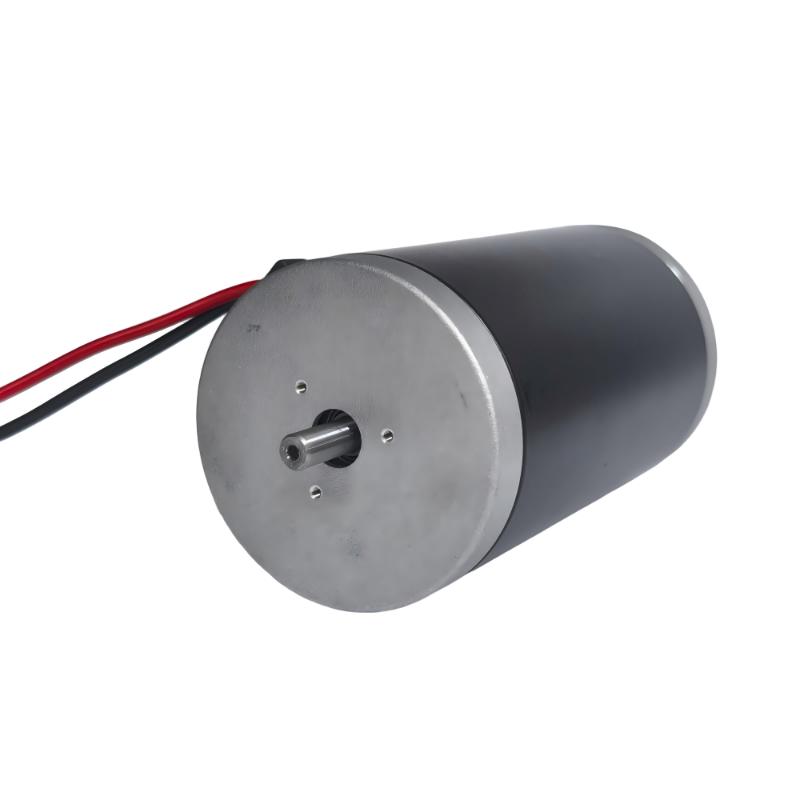

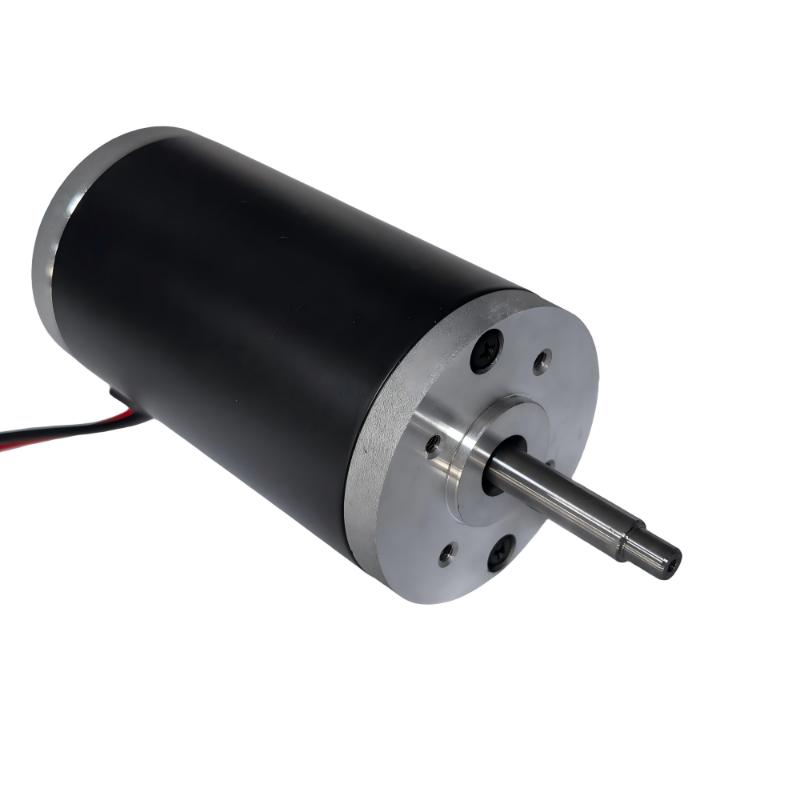

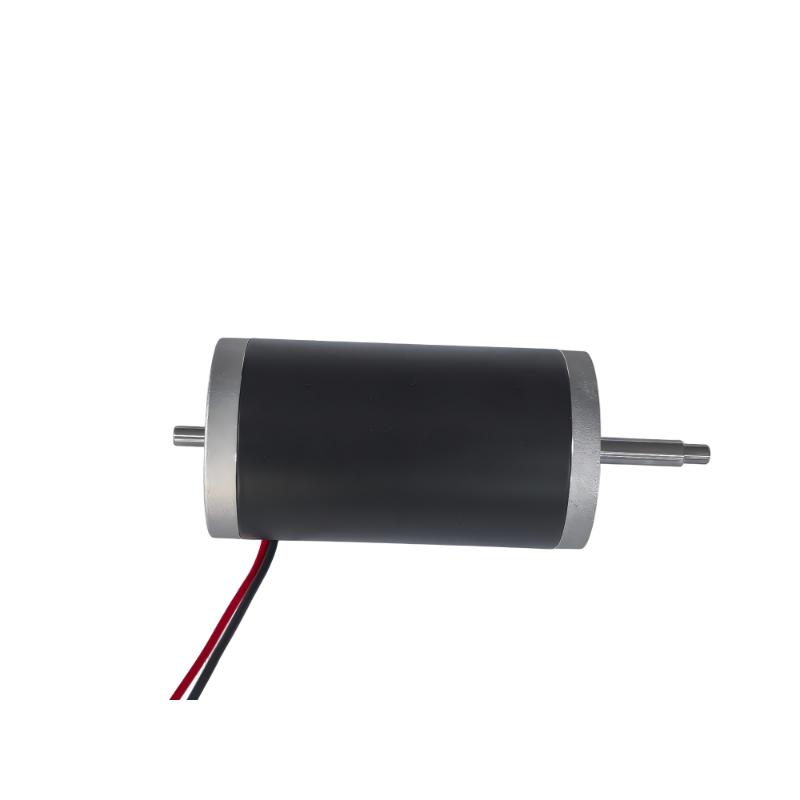

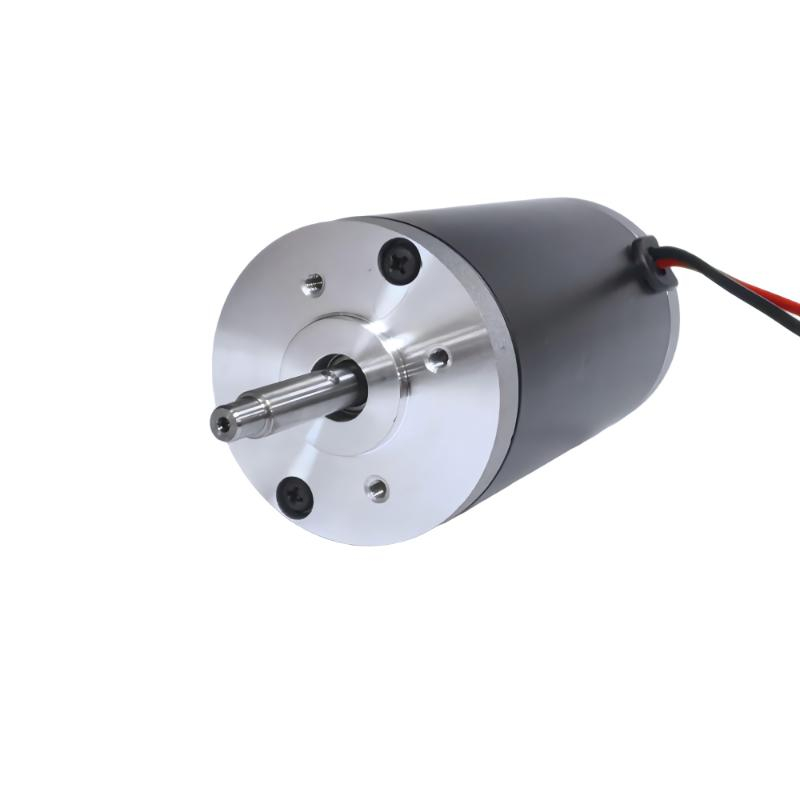

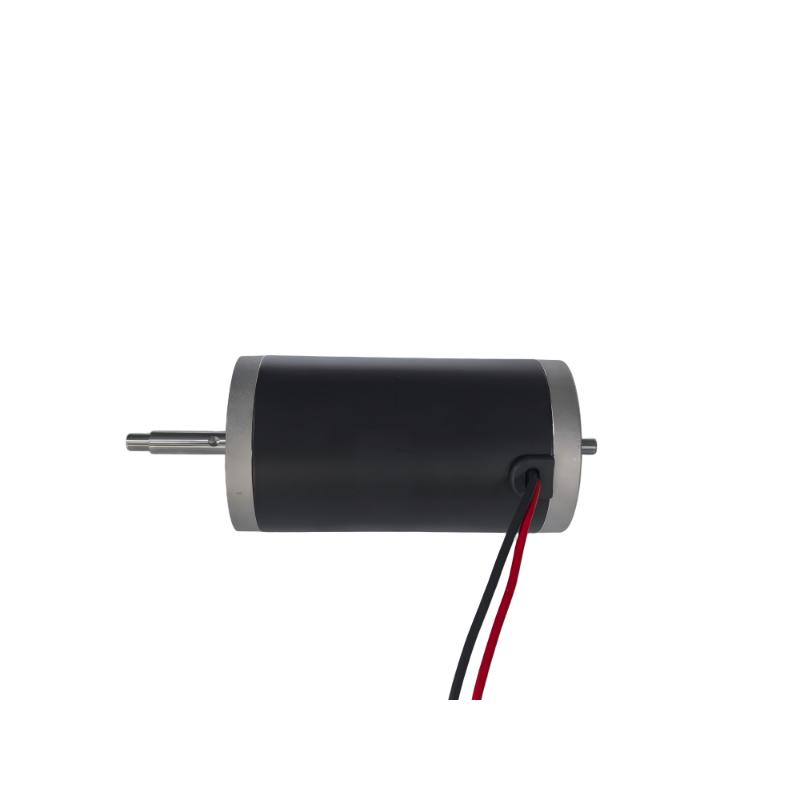

The SLT60 features a 60 × 60 mm flange with a standardized mounting pattern, simplifying integration into compact mechanical assemblies. With a body length of 90.5–124 mm, it supports multiple shaft and coupling configurations for pumps, blowers, and actuators. The rigid flange ensures axial and radial stability under load, while straightforward mounting reduces assembly time and installation cost.
| Quantity: | |
|---|---|
Parameter | Unit | Value 1 | Value 2 | Value 3 | Value 4 |
No-Load Speed | rpm | 6200 | 3000 | 4200 | 4300 |
No-Load Current | A | 2.5 | 0.3 | 0.8 | 1.1 |
Rated Speed | rpm | 4300 | 2300 | 3150 | 3550 |
Rated Current | A | 28 | 5.1 | 5.5 | 9.5 |
Rated Torque | N·m | 0.4 | 0.3 | 0.25 | 0.3 |
Rated Power | W | 180 | 70 | 100 | 112 |
Body Length | mm | 115 | 110 | 90.5 | 124 |
The Series 60 Brushed DC Motor is a high-performance, cost-effective industrial drive solution engineered for industrial OEMs, equipment manufacturers, and system integrators requiring reliable heavy-load operation. With a standardized 60×60 mm end cap flange and compact body length ranging from 90.5 mm to 124 mm, this motor seamlessly fits into compact mechanical assemblies. It offers flexible voltage options of 12V / 18V / 24V, a power range of 70–180 W, rated speed of 2,300–4,300 rpm, and rated torque of 0.25–0.4 N·m, covering mainstream industrial and vehicle DC system requirements. Compared with brushless alternatives, its mature brushed design delivers simpler control, lower integration costs, and exceptional heavy-load startup performance, making it a trusted choice for high-demand industrial scenarios.
The SLT60 60×60mm brushed DC motor features a universal mounting flange with standardized hole patterns, reducing design and assembly time for industrial equipment. Its rigid structure ensures superior axial and radial stability under continuous load, while multiple shaft and coupling configurations adapt to diverse transmission requirements, eliminating the need for extensive mechanical modifications.
Available in 12V, 18V, and 24V variants, this motor aligns with common industrial and mobile DC power systems. Its 70–180 W broad power band allows precise matching to specific load profiles, optimizing thermal margin and torque output without custom motor development, accelerating product qualification across global markets.
Delivering 2–3× its rated torque at startup, the high starting torque brushed DC motor directly overcomes static friction of high-inertia loads, eliminating the need for complex soft-start electronics. This drastically improves system reliability and cuts auxiliary hardware costs for heavy-load applications.

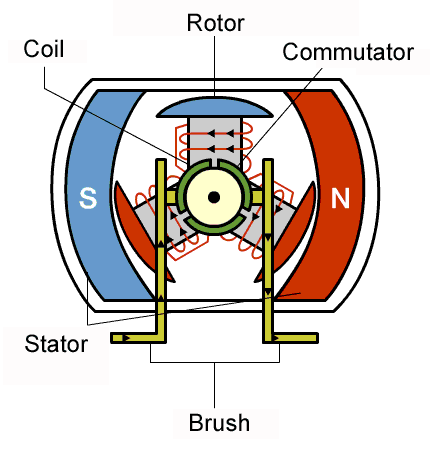

As a brushed DC motor, it only requires basic PWM speed control and polarity reversal for full operation, shortening OEM development cycles. Its mechanical commutation design enables straightforward on-site maintenance, including brush replacement and commutator cleaning, reducing long-term service costs for end users.

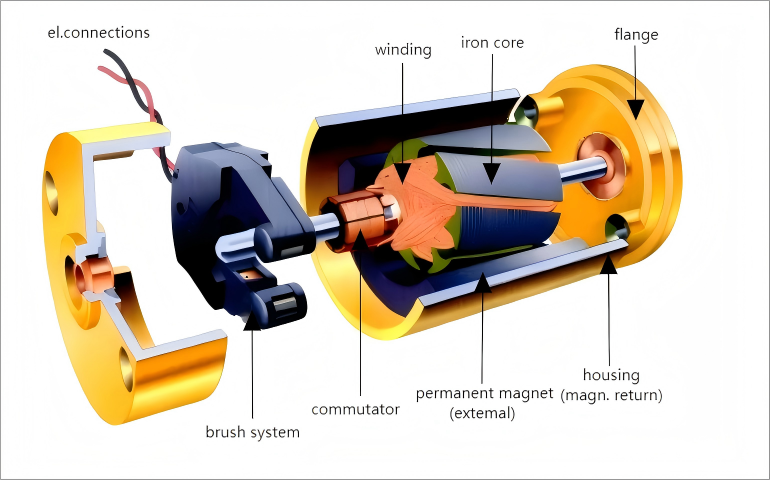

Optimized brush, commutator, and spring assemblies minimize electrical noise and mechanical wear, extending service life under rated conditions. Every unit undergoes full testing for speed, torque, temperature rise, and balance, with CE and RoHS certification to meet global industrial compliance standards.
The Series 60 industrial brushed DC motor is ideal for pumps, blowers, dampers, large valves, transmission actuators, industrial automation equipment, HVAC systems, and mobile vehicle auxiliary systems, catering to industrial equipment manufacturers and automation solution providers with heavy-load drive demands.
We offer full customization for the 12V 24V brushed DC motor, including tailored shaft dimensions, coupling configurations, winding parameters to adjust speed and torque, custom mounting flanges, and compatible accessories such as encoders and brakes. Sample test reports and batch inspection certificates are available on request to meet your qualification requirements.

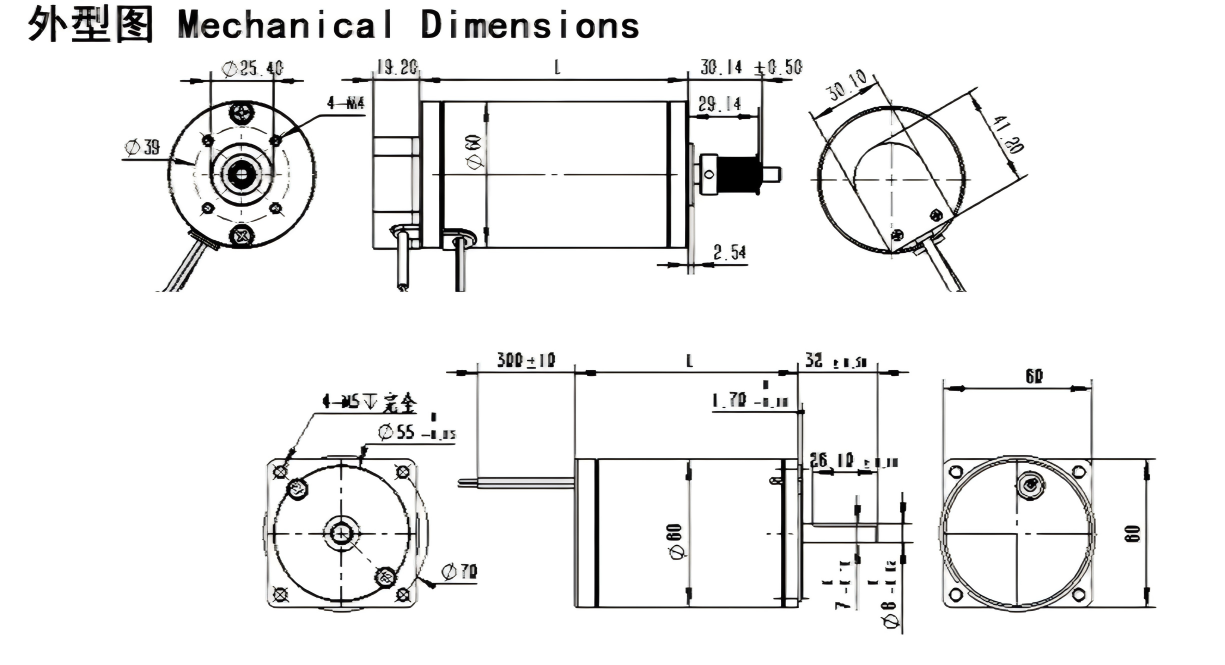

Mount the motor via the 60×60 mm standardized flange, using M4 mounting screws to ensure secure fixation and avoid radial or axial load exceeding rated limits.
Wiring is straightforward: connect the positive and negative leads to the DC power supply, reverse polarity to change the rotation direction, and use a PWM controller for speed regulation.
Ensure reliable grounding of the motor housing to reduce electrical noise, and avoid exposure to excessive moisture or dust during installation.
Align the motor shaft with the load using a flexible coupling to minimize radial stress on the bearing.
We are a professional motor manufacturer with our factory located in Changzhou, Jiangsu Province, and we warmly welcome on-site factory visits.
The standard MOQ is 3 units, with flexible arrangements for sample verification orders.
For non-customized orders: in-stock units ship within 1–2 working days, sample orders are delivered in 10–14 working days, and bulk production orders take 20–25 working days.
Yes, all our Series 60 brushed DC motors are CE and RoHS certified to meet global industrial compliance standards.
Our quoted price is ex-factory price, and we offer favorable volume-based discounts for large batch orders.
Whether you are an industrial OEM, equipment manufacturer, or automation system integrator, our team can provide a customized Series 60 Brushed DC Motor solution tailored to your specific load, power, and installation requirements. Contact us today to request samples, get a detailed quote, and discuss your custom motor needs with our engineering team.
