The 86 mm stepper motor is manufactured with high-precision machining and premium magnetic materials, delivering a standard 1.8° step angle and supporting up to 204,800 steps per revolution via microstepping. An optional 24-bit absolute encoder is available, meeting the stringent accuracy requirements of CNC machining and precision measurement equipment.
| Quantity: | |
|---|---|
Model No. | Step Angle (°) | Motor Length (mm) | Current/Phase (A) | Holding Torque (N·m) | Rotor Inertia (g·cm²) | Weight (kg) |
SLT110HS99-5504 | 1.8 | 99 | 5.5 | 11.2 | 5500 | 5 |
SLT110HS115-6004 | 1.8 | 115 | 6 | 12 | 7100 | 6 |
SLT110HS150-6504 | 1.8 | 150 | 6.5 | 21 | 10900 | 8.4 |
SLT110HS165-6004 | 1.8 | 165 | 6 | 24 | 12800 | 9.1 |
SLT110HS201-8004 | 1.8 | 201 | 8 | 28 | 16200 | 11.8 |
Above are representative models; custom specifications are available based on your commercial project requirements.

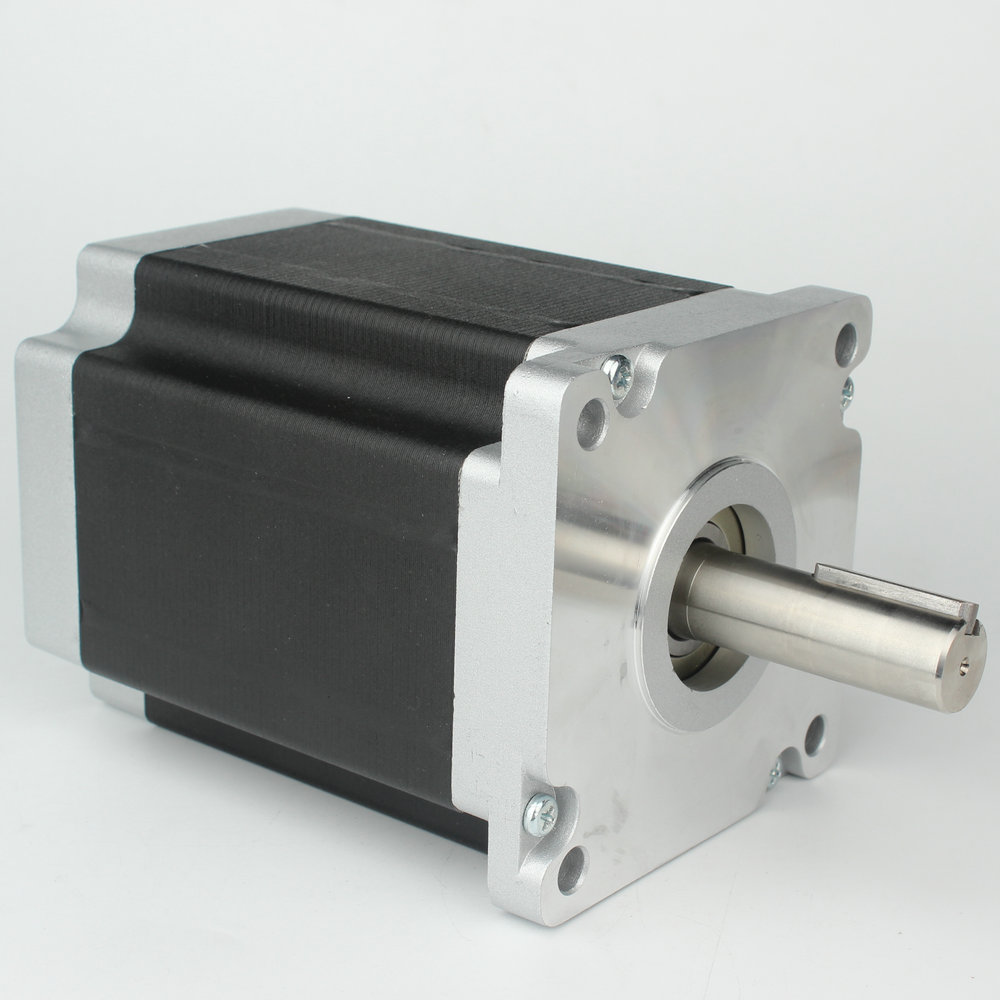

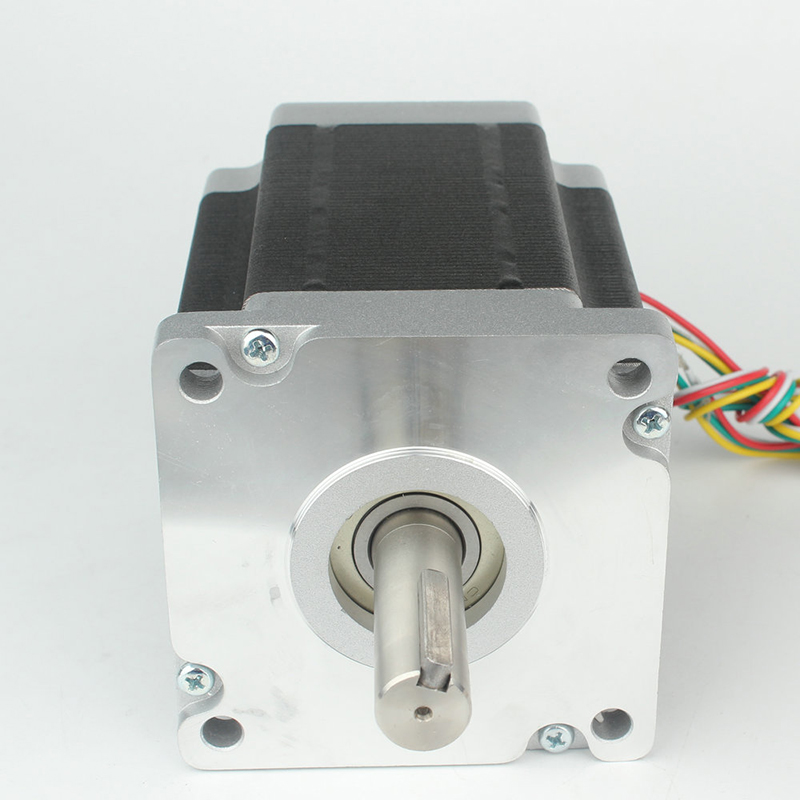

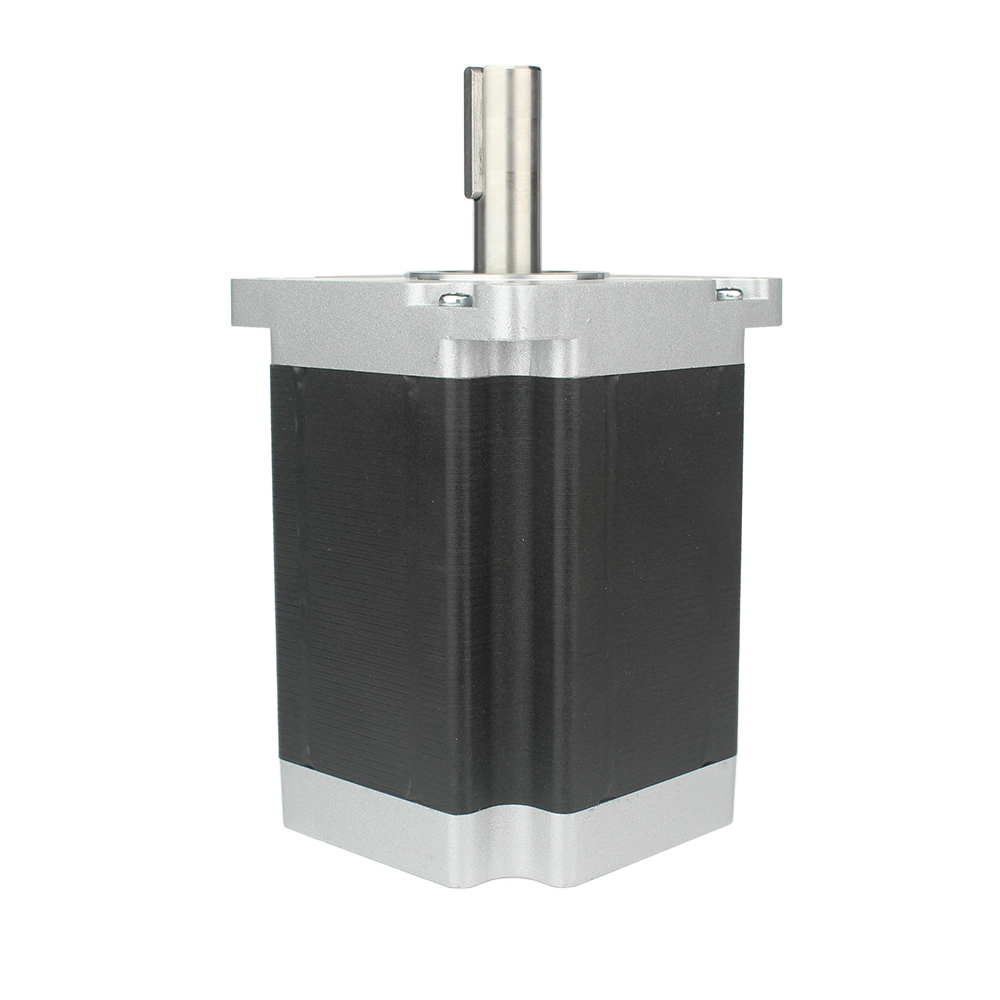

1.8°110mm（NEMA42）2phase hybrid stepper motor | |
General specifications | |
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃ ~ +50℃ |
Insulation Resistance | 100MΩ Min., 500VDC |
Dielectric Strength | 820VAC for 1s 3mA |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 220N (20mm from the flange) |
Max. axial force | 60N |
Our 110mm NEMA42 DC Stepper Motor is a professional-grade 2-phase hybrid stepper solution built for high-precision industrial motion control applications. Featuring a standard 110×110mm NEMA42 flange, adjustable body length from 99mm to 201mm, and a universal 1.8° step angle with ±5% accuracy, this motor delivers exceptional holding torque ranging from 11.20N·m to 28N·m via bipolar drive technology. Designed for rigorous commercial use, it enables precise positioning and stable motion control, making it the top choice for industrial equipment manufacturers and precision automation system integrators worldwide.
Manufactured with high-precision machining and premium magnetic materials, our NEMA42 110mm stepper motor delivers a standard 1.8° step angle, supporting up to 204,800 steps per revolution via microstepping technology. An optional 24-bit absolute encoder is available to meet the strict accuracy requirements of CNC machining, precision measurement, and medical device manufacturing, ensuring zero position deviation in critical industrial processes.
Optimized magnetic circuit design and high-performance rare-earth magnets provide this high holding torque NEMA42 stepper motor with a maximum holding torque of 28N·m and peak torque up to 38N·m. Its torque density is approximately 50% higher than comparable market products, ensuring stable operation even under high-load conditions for heavy-duty CNC machines, industrial robots, and automated production lines.
This motor supports configurable digital I/O, with 3 digital input ports and 1 digital output port, enabling seamless integration with mainstream industrial control systems for signal feedback, trigger functions, and automated coordination. With an operating temperature range of -20℃ to +50℃, Class B insulation, and strict vibration and impact resistance testing, it adapts to harsh industrial environments with minimal maintenance.
Our 110mm 2-phase hybrid stepper motor is widely used in high-precision industrial sectors, including CNC machine tools, industrial robotic arms, automated assembly equipment, precision medical devices, 3D printing systems, testing and measurement instruments, packaging machinery, and electronic manufacturing equipment. It is also ideal for custom automation projects requiring accurate positioning and stable low-speed motion.

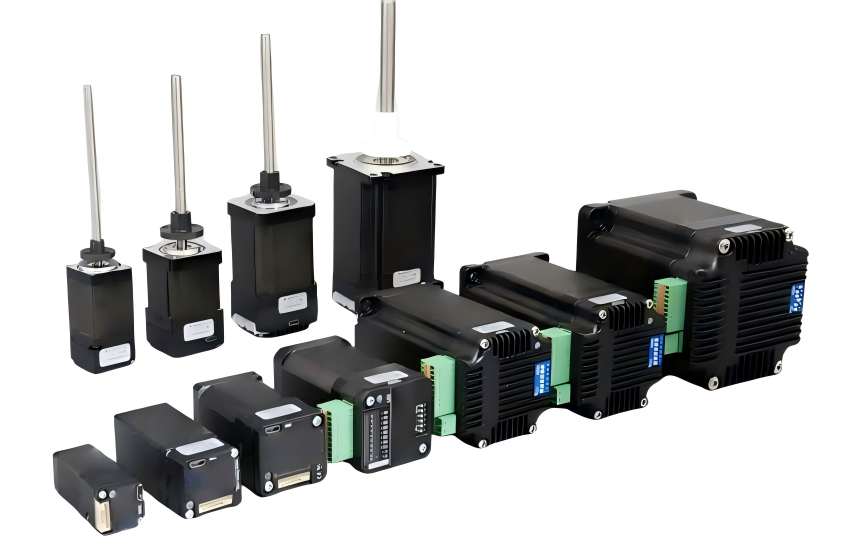

We provide end-to-end customization services for industrial equipment manufacturers and automation solution providers. Our customization scope includes adjustable winding parameters, shaft configurations (including 16mm keyed shafts), and compatible accessories such as absolute encoders, gearboxes, and dedicated stepper drivers. Sample customization is available with a minimum order quantity of 3 units, with a standard lead time of approximately 15 days, supporting rapid prototyping and performance testing for your commercial projects.

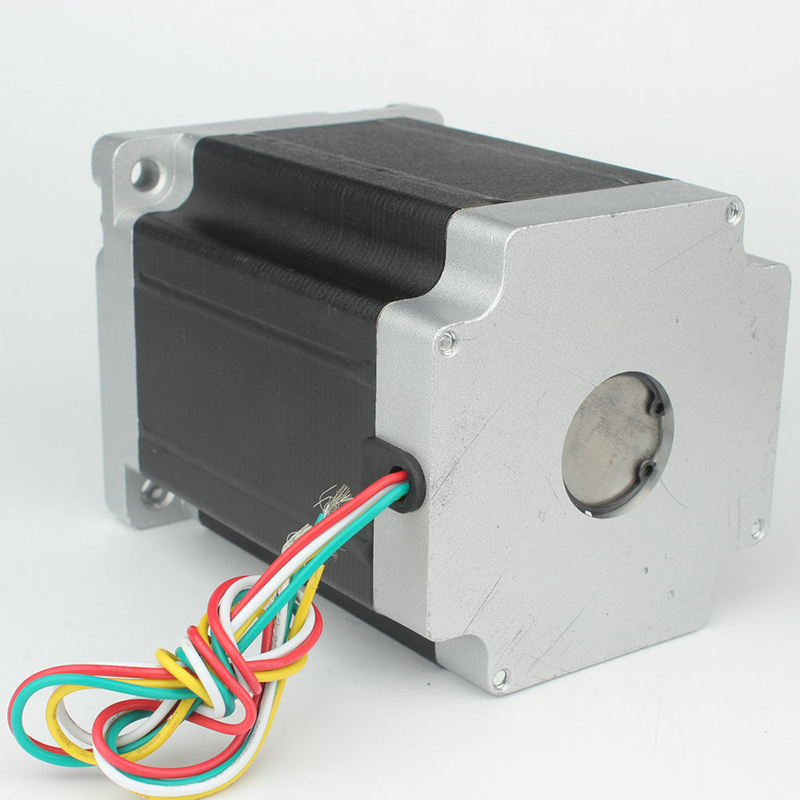

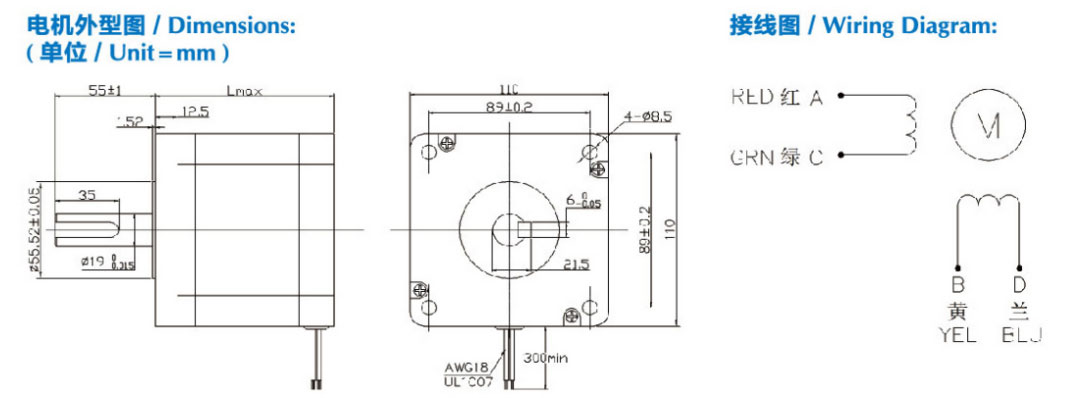

This 4-lead bipolar stepper motor follows a standard wiring configuration: Phase A (Red, Yellow), Phase B (Green, Black). Ensure correct phase pairing to avoid step loss or motor damage.
Align the 110×110mm NEMA42 flange with your equipment mounting interface, secure all mounting bolts evenly, and ensure the shaft radial and axial load stay within the rated range (max radial force 220N, max axial force 60N). Verify wiring connections before power-on, and avoid continuous overload to maintain positioning accuracy and extend service life.
The standard sample MOQ is 3 units, with a production lead time of approximately 15 days.
Yes, we offer full customization for shaft design, winding parameters, holding torque, and compatible encoders to meet the unique needs of your CNC or precision automation projects.
First, verify that the drive current settings match the motor’s rated current, check for mechanical overload or excessive load inertia, and confirm the microstepping configuration aligns with your positioning requirements. Our technical team is available for further troubleshooting support.
Check if the drive current exceeds the rated value, ensure adequate heat dissipation for the motor and driver, and verify that the operating duty cycle matches your application’s requirements. Contact our technical support team for additional guidance if issues persist.
