The 130 mm stepper motor is manufactured using high-precision machining and premium magnetic materials, delivering a standard 1.2° step angle. An optional 24-bit absolute encoder is available to meet the strict positioning requirements of CNC machining, precision measurement, and high-performance automation equipment.
| Quantity: | |
|---|---|
Model No. | Step Angle (°) | Motor Length (mm) | Current /Phase (A) | Holding Torque (N·m) | # of Leads | Rotor Inertia (g·cm²) | Weight (Kg) |
SLT110HS99-5504 | 1.8 | 99 | 5.5 | 11.2 | 4 | 5500 | 5 |
SLT110HS115-6004 | 1.8 | 115 | 6 | 12 | 4 | 7100 | 6 |
SLT110HS150-6504 | 1.8 | 150 | 6.5 | 21 | 4 | 10900 | 8.4 |
SLT110HS165-6004 | 1.8 | 165 | 6 | 24 | 4 | 12800 | 9.1 |
SLT110HS201-8004 | 1.8 | 201 | 8 | 28 | 4 | 16200 | 11.8 |
Note: Above are representative models, custom specifications available on request. | |||||||

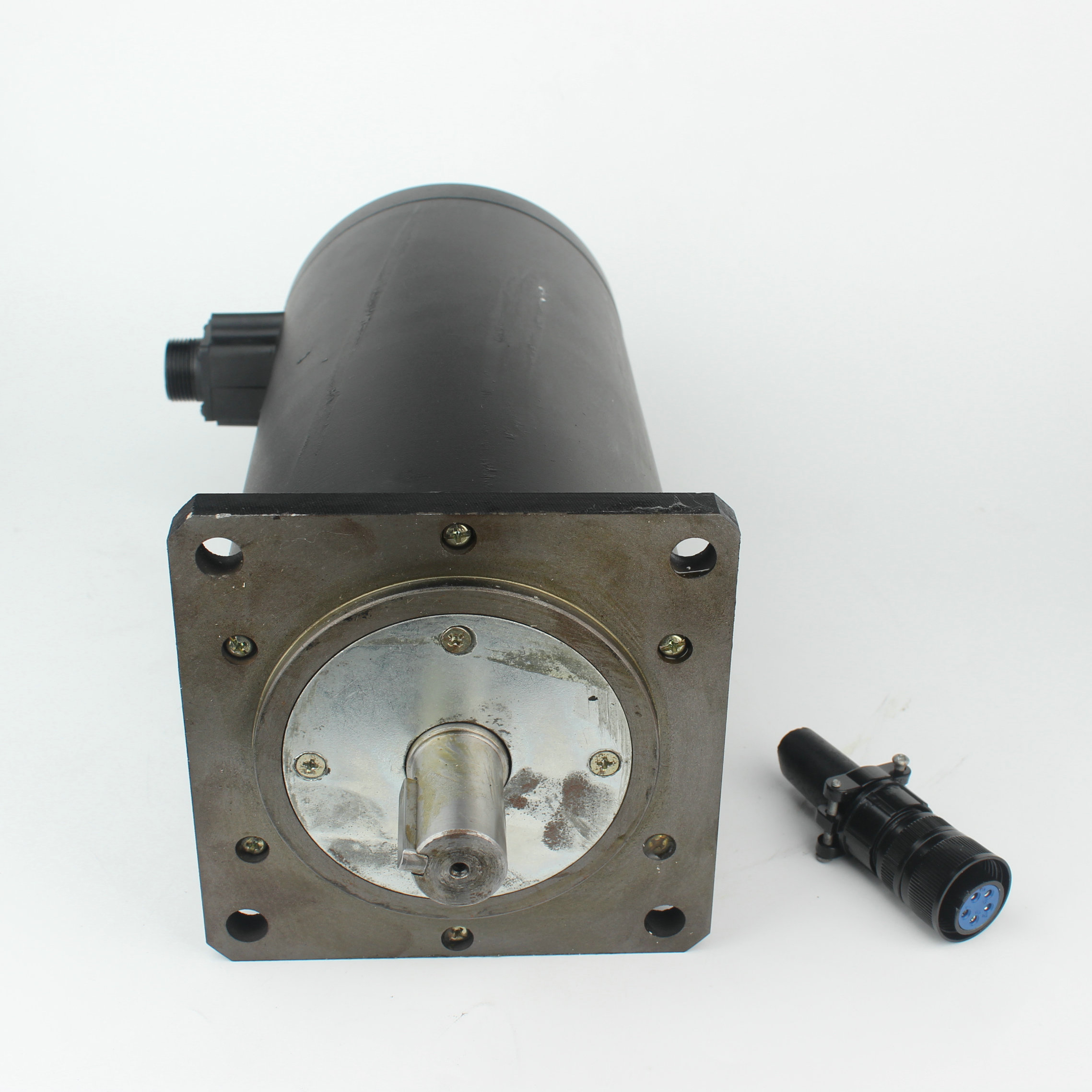

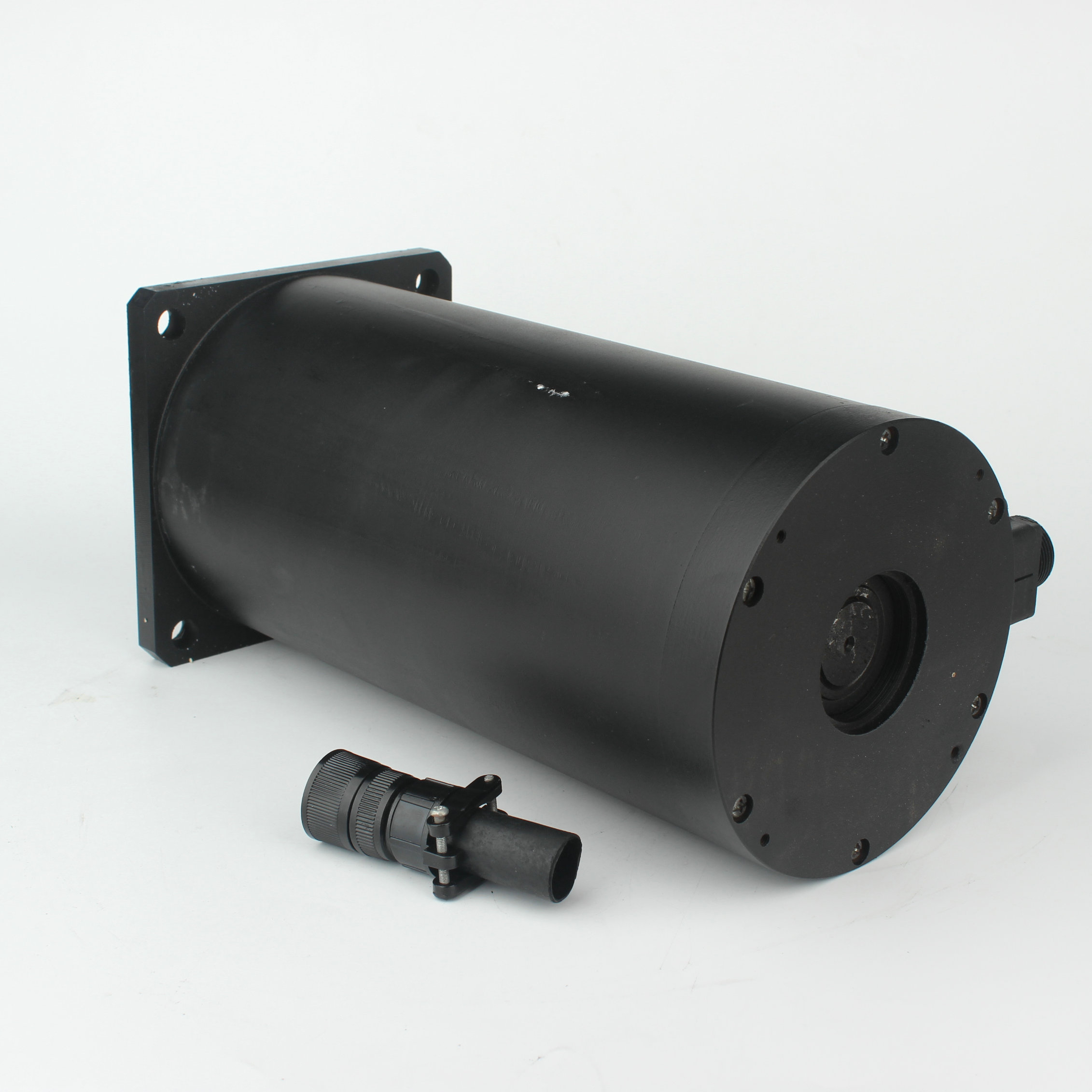

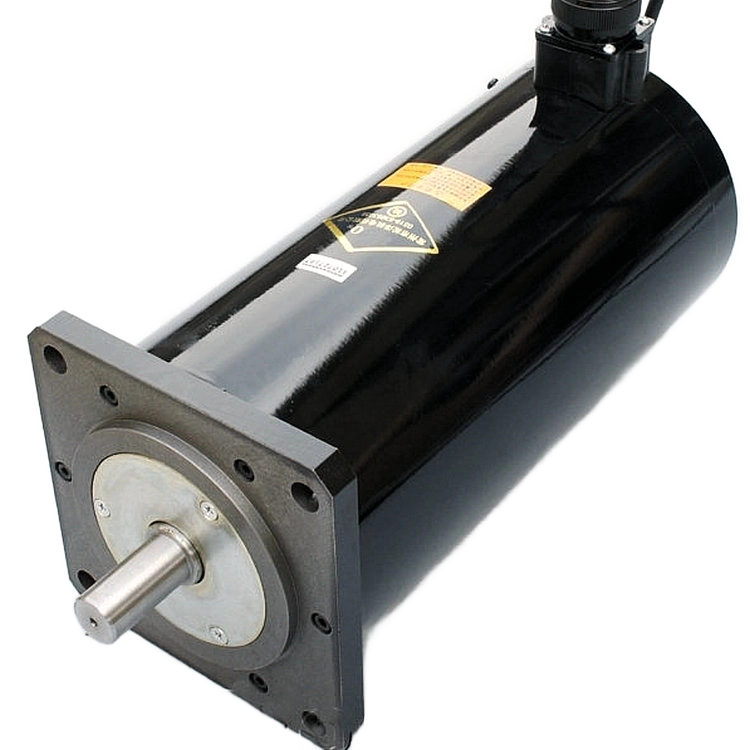

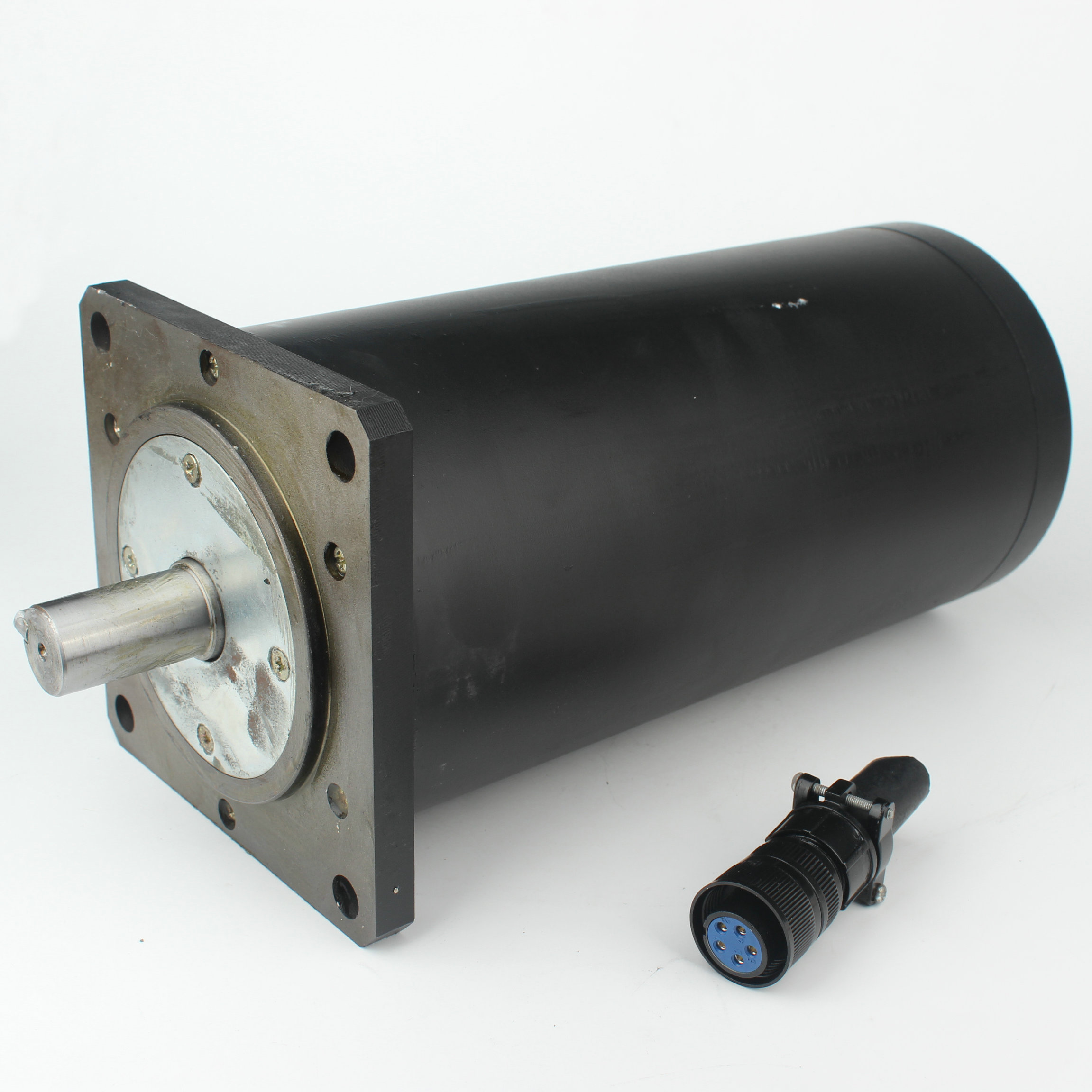

The 130mm NEMA52 DC Stepper Motor is a heavy-duty, high-precision motion control solution built for demanding industrial environments. Featuring a 130 × 130 mm standard flange and customizable body length from 173 mm to 285 mm, it balances robust mechanical rigidity with flexible installation adaptability. Its 3-phase 1.2° step angle design (with 2-phase 1.8° configuration available) delivers accurate, smooth motion for high-inertia load applications. Compatible with mainstream third-party drivers and multiple mounting setups, this high-torque NEMA52 stepper motor is ideal for industrial systems requiring uncompromising power and positioning accuracy.
Manufactured with high-precision machining and premium rare-earth magnetic materials, this 1.2° step angle stepper motor delivers exceptional positioning consistency. The standard 1.2° step angle minimizes step error, while an optional 24-bit absolute encoder meets the strict demands of CNC machining, precision measurement, and high-performance automation. It eliminates positioning drift even during long-term continuous operation, ensuring reliable performance for mission-critical applications.
Optimized magnetic circuit design and high-grade rare-earth magnets give this heavy-load industrial stepper motor a holding torque range of 25 N·m to 50 N·m, with peak torque up to 68 N·m. Its torque density is ~50% higher than comparable frame size motors, ensuring stable operation under sustained high loads. This exceptional torque performance makes it perfect for driving heavy industrial equipment with high-inertia loads.

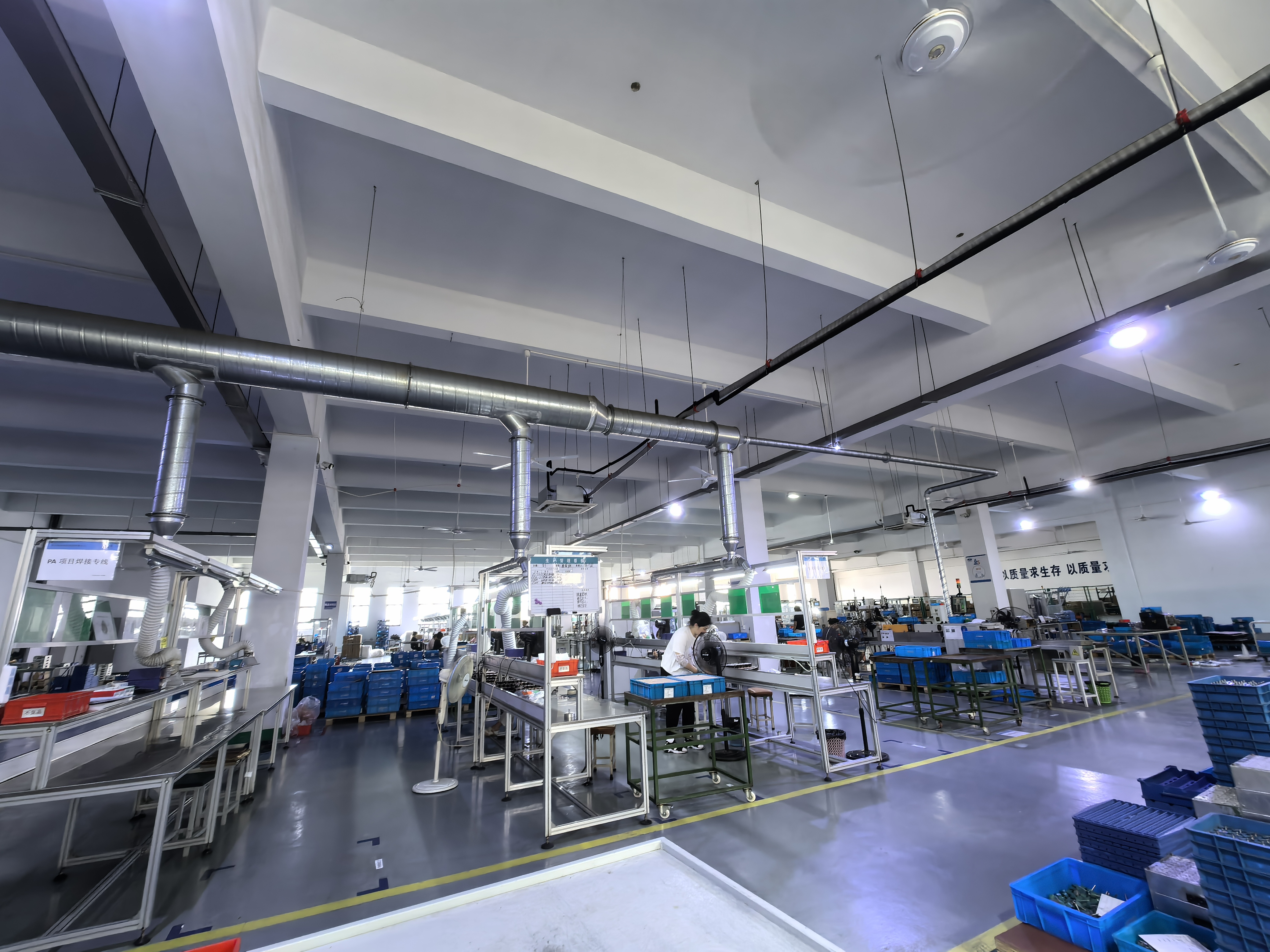

Our facilities hold ISO 9001:2015 and IATF 16949 certifications, with over 100 sets of advanced production equipment. This ISO certified stepper motor undergoes strict quality inspection at every production stage, ensuring consistent batch quality, scalable production, and reliable delivery for industrial procurement teams.
This CNC machine stepper motor is widely used in heavy industrial scenarios: heavy-duty CNC machining centers, industrial robots, automated production lines, large-scale printing equipment, precision measuring instruments, high-load packaging machinery, and metal forming equipment. It is purpose-built for systems requiring high torque, precise positioning, and long-term reliability in harsh industrial environments.
We offer comprehensive customizable industrial stepper motor solutions, including adjustable body length, tailored torque/current parameters, encoder integration (absolute/incremental), matched gearboxes/brakes, custom mounting configurations (standard/side/inverted), and special lead wire setups. We also support custom designs for extreme temperature or harsh operating environments.

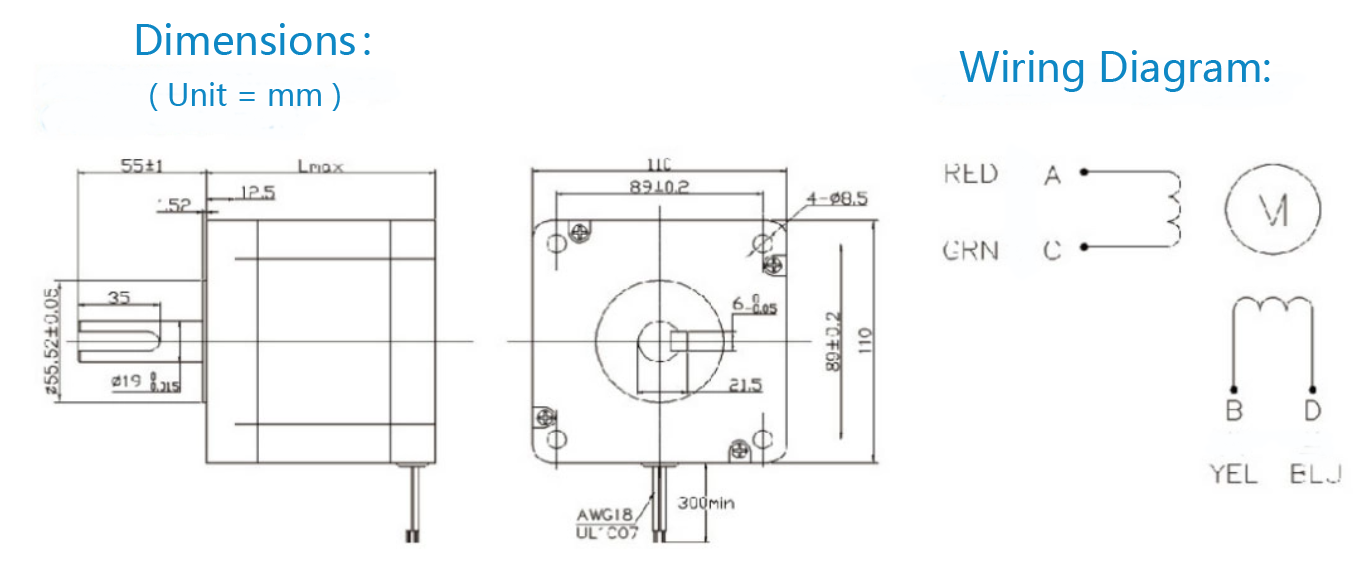

This motor supports standard, side, and inverted mounting, with full compatibility with mainstream third-party drivers. Ensure the mounting surface is flat and vibration-free, with uniform bolt tightening to avoid housing deformation. Follow the standard wiring diagram for correct phase connection, with proper grounding to reduce EMI. Do not exceed radial/axial load limits to protect internal bearings and extend service life.
Standard bulk orders have a 15-20 working day lead time, with expedited production available for urgent projects.
Yes, we support 24-bit absolute encoder integration to meet strict CNC and precision measurement positioning needs.
We offer standard, side, and inverted mounting, with custom mounting hole designs available on request.
Verify driver parameters match the motor nameplate, check power supply voltage, and ensure the load does not exceed the motor’s rating. Our technical team is available for full support.
For equipment manufacturers, system integrators, and industrial procurement teams seeking a reliable heavy-duty stepper motor, we offer tailored design, rapid sample production, and full technical support. Contact us today to discuss your project needs and get a customized quote for the 130mm NEMA52 DC Stepper Motor that perfectly fits your application.
