| Quantity: | |
|---|---|
Model No. | Wiring Configuration | Motor Length (mm) | Current /Phase (A) | Holding Torque (N·m) | # of Leads | Rotor Inertia (g·cm²) | Weight (Kg) |
SLT60HS56-2008 | Unipolar/Parallel/Series | 56 | 2.0/2.8/1.4 | 1.17/1.65/1.65 | 8 | 300 | 0.77 |
SLT60HS67-2008 | Unipolar/Parallel/Series | 67 | 2.0/2.8/1.4 | 1.5/2.1/2.1 | 8 | 570 | 1.2 |
SLT60HS88-2008 | Unipolar/Parallel/Series | 88 | 2.0/2.8/1.4 | 2.2/3.1/3.1 | 8 | 840 | 1.4 |
SLT60HS100-2008 | Unipolar/Parallel/Series | 100 | 2.0/2.8/1.4 | 2.8/4.0/4.0 | 8 | 980 | 1.7 |
SLT60HS111-2008 | Unipolar/Parallel/Series | 111 | 2.0/2.8/1.4 | 3.2/4.5/4.5 | 8 | 1120 | 1.9 |
Note: Above are representative models, custom specifications available on request. | |||||||

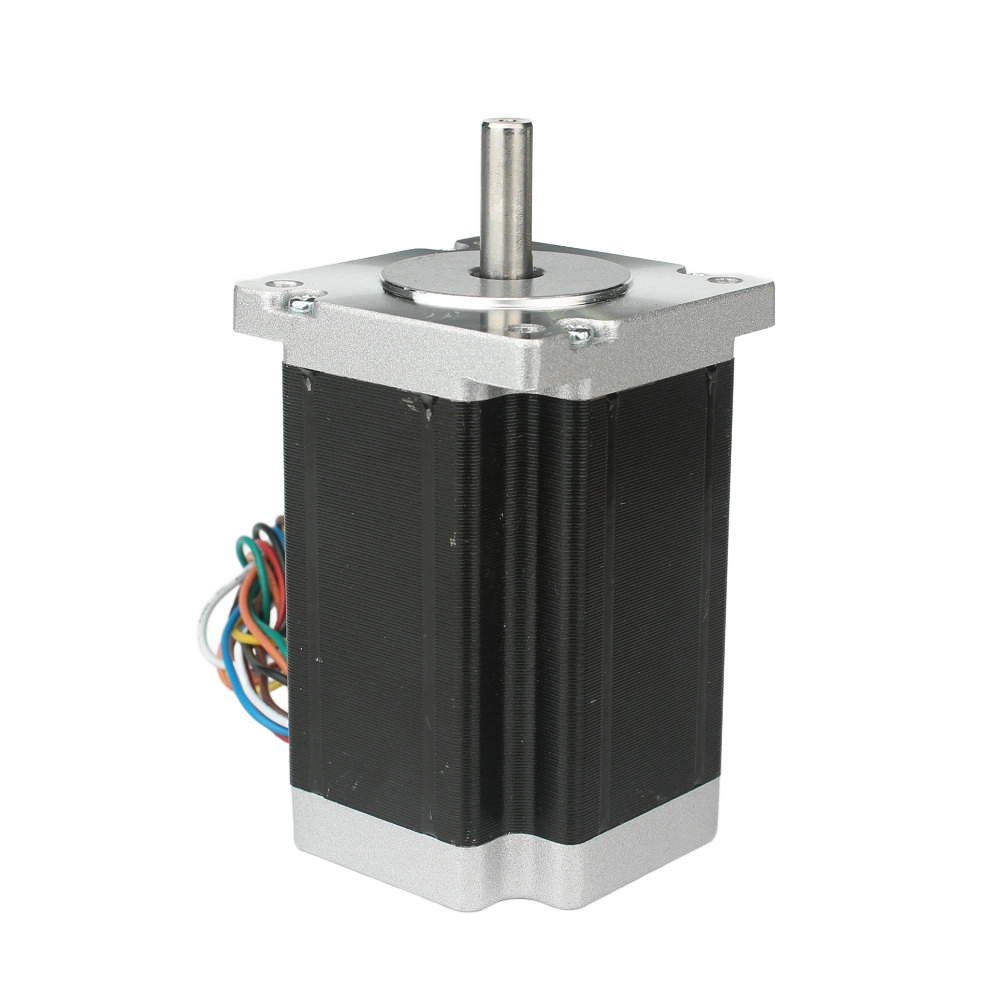

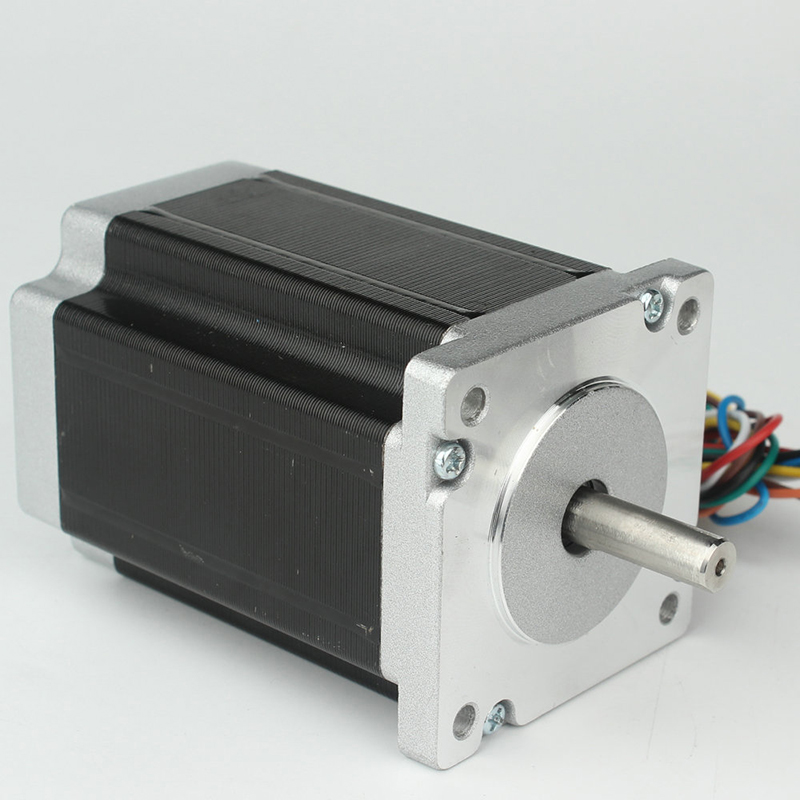

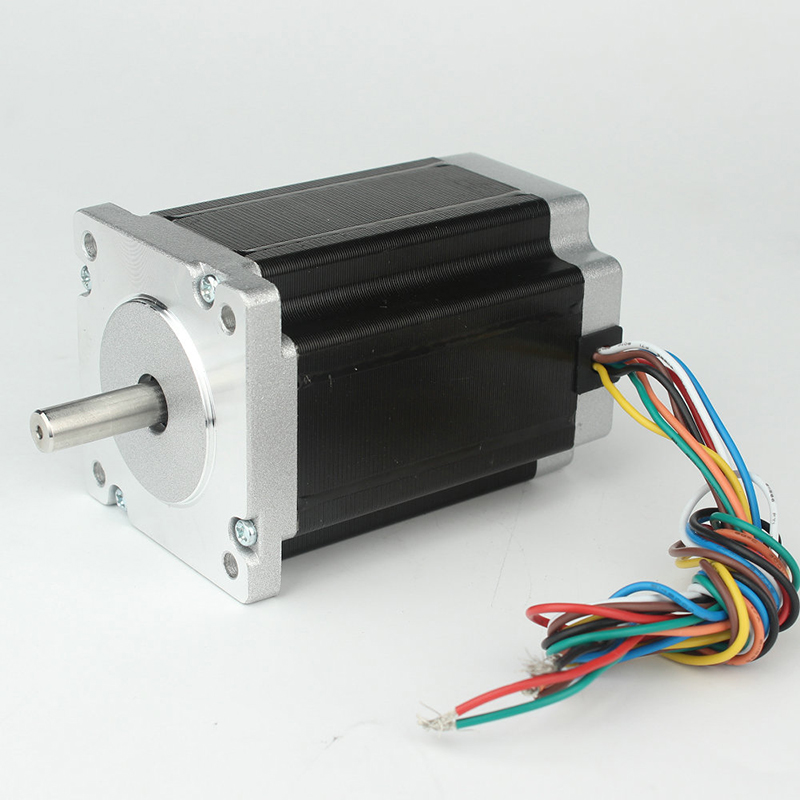

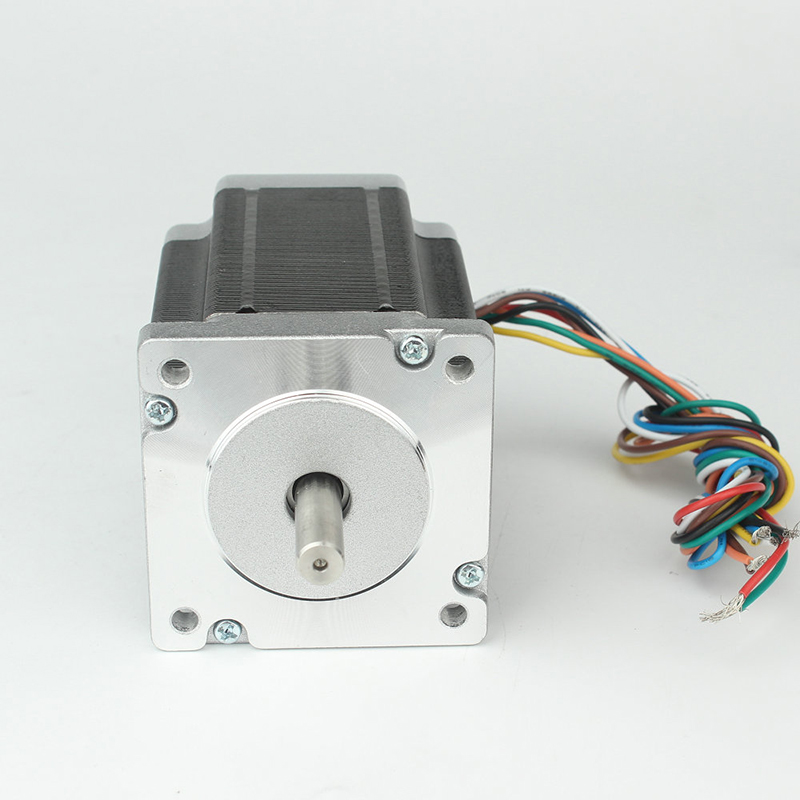

With a 60 × 60 mm standard flange and customizable body length ranging from 56 mm to 111 mm, it delivers exceptional space efficiency without compromising mechanical rigidity. Its 2-phase 1.8° step angle design enables accurate displacement control via pulse signals, with a holding torque range of 1.17 N·m to 4.5 N·m. Featuring open-loop control for simplified positioning without additional feedback hardware, this compact NEMA24 stepper motor offers easy installation, low maintenance, and broad compatibility for diverse precision automation systems.
Manufactured with high-precision machining and premium magnetic materials, this 1.8° 2-phase stepper motor supports up to 256 microsteps, delivering positioning accuracy of ±0.05° and repeatability exceeding 98%. Its optimized design ensures ultra-smooth motion, minimal vibration, and low operating noise, making it ideal for noise-sensitive environments like medical devices and optical instruments.
An optimized magnetic circuit and high-performance rare-earth magnets give this compact high-torque stepper motor a holding torque output over 25% higher than typical same-frame motors on the market. This enhanced torque density ensures stable power transmission even under continuous load, perfectly meeting the demands of compact automation systems and textile machinery.
This motor features a configurable digital I/O interface, with 3 digital input (DI) ports and 1 digital output (DO) port. This flexibility enables seamless integration with industrial control systems, supporting real-time status feedback, signal triggering, and system-level coordination. It simplifies wiring design and improves overall operational efficiency for automated equipment.

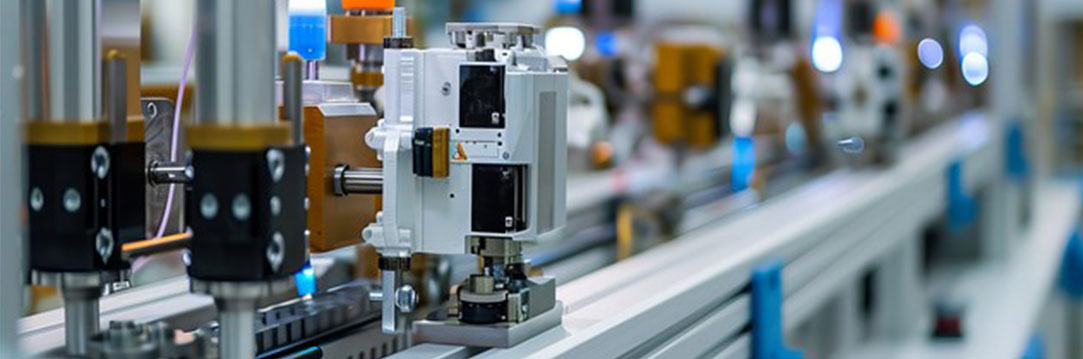

This low-noise precision stepper motor is widely deployed in precision industrial scenarios, including medical diagnostic equipment, optical measuring instruments, textile machinery, automated assembly lines, 3D printing equipment, laboratory automation systems, and small-scale packaging machinery. It is purpose-built for applications requiring compact size, high precision, and quiet, reliable operation.
We offer full custom NEMA24 stepper motor solutions to match unique project requirements, including adjustable body length, tailored torque and current parameters, custom wiring configurations (unipolar/parallel/series), encoder and gearbox integration, matched driver compatibility, and special surface coatings for harsh environments. We also support custom mechanical designs for non-standard mounting needs.

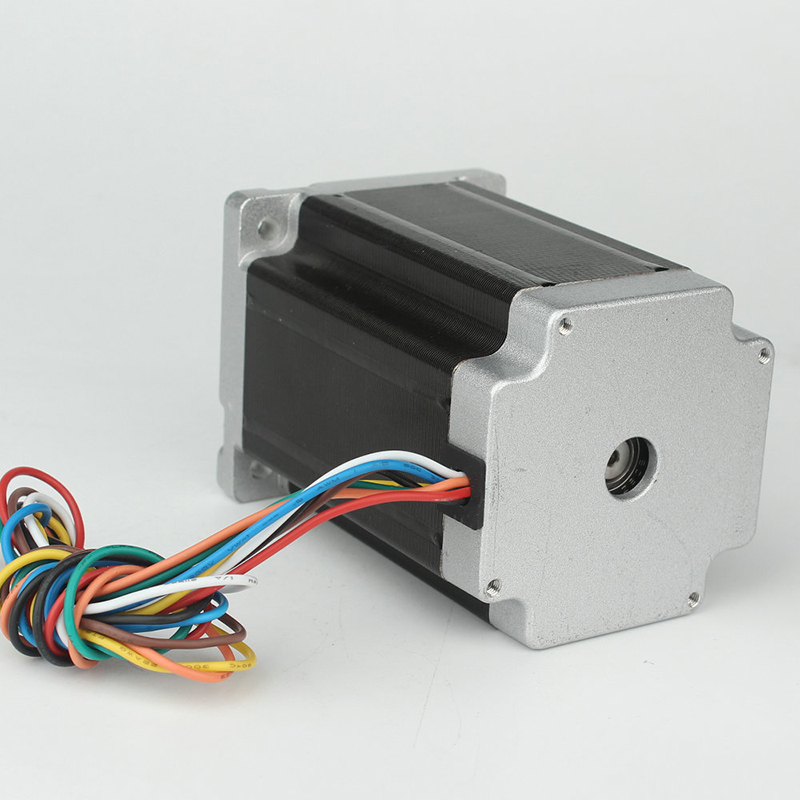

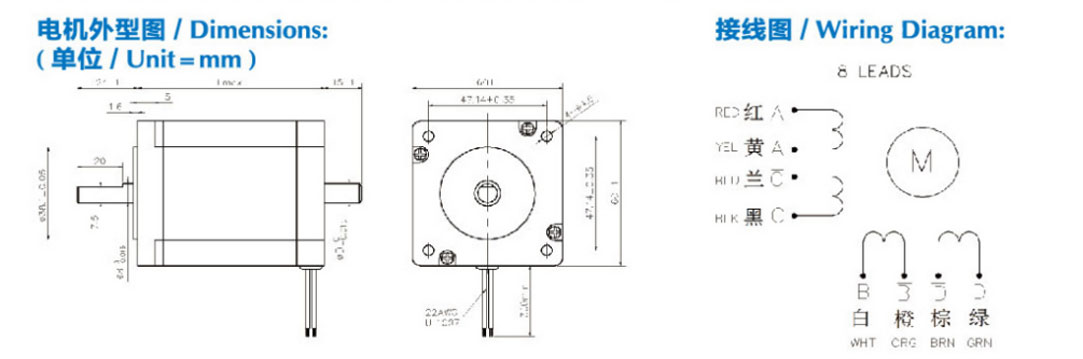

This 8-lead NEMA24 stepper motor supports unipolar, parallel, and series wiring configurations to adapt to different driver and performance requirements. For installation, ensure the mounting surface is flat, with uniform tightening of mounting bolts to avoid housing deformation. Adhere to the rated radial (75N max, 20mm from flange) and axial (15N max) load limits to protect internal bearings. Follow the provided wiring diagram for correct phase connection, with proper grounding to reduce electromagnetic interference.
This motor supports unipolar, parallel, and series wiring via its 8-lead design, adapting to different driver and performance needs.
It supports up to 256 microsteps, delivering ultra-smooth motion and high positioning accuracy for precision applications.
The standard MOQ for custom samples is 3 units, with a lead time of approximately 15 working days.
Optimize driver microstepping settings, verify current parameters match the motor rating, and ensure proper mounting to minimize resonance. Our technical team can provide tailored tuning guidance.
For equipment manufacturers, system integrators, and industrial procurement teams seeking a compact, high-precision stepper motor solution, we offer tailored design, rapid sample production, and full technical support. Contact us today to discuss your project requirements and get a customized quote for the 60mm NEMA24 DC Stepper Motor that perfectly fits your application.
