Model | Voltage (VDC) | Rated Speed (rpm) | Rated Torque (N.M) | Rated Power (W) | Peak Torque (N.M) | Body Length (mm) | Weight (kg) |
90BLF30 | 48 | 3000 | 1.0 | 315 | 3.0 | 87 | 2.7 |
90BLF55 | 48 | 3000 | 1.8 | 550 | 5.4 | 112 | 3.6 |
90BLF80 | 48 | 3000 | 2.5 | 750 | 7.5 | 137 | 4.4 |
Note: Above are standard models, customized derivatives can be produced according to your specific requirements. | |||||||

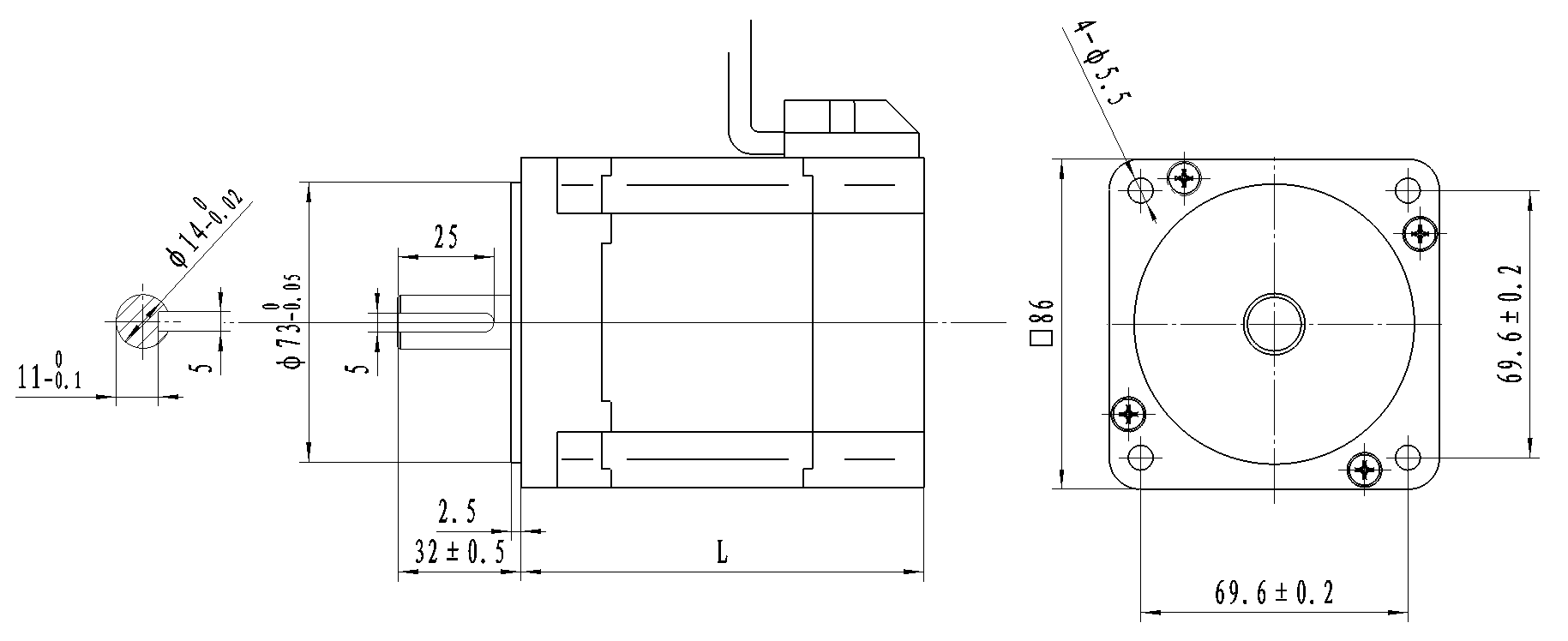

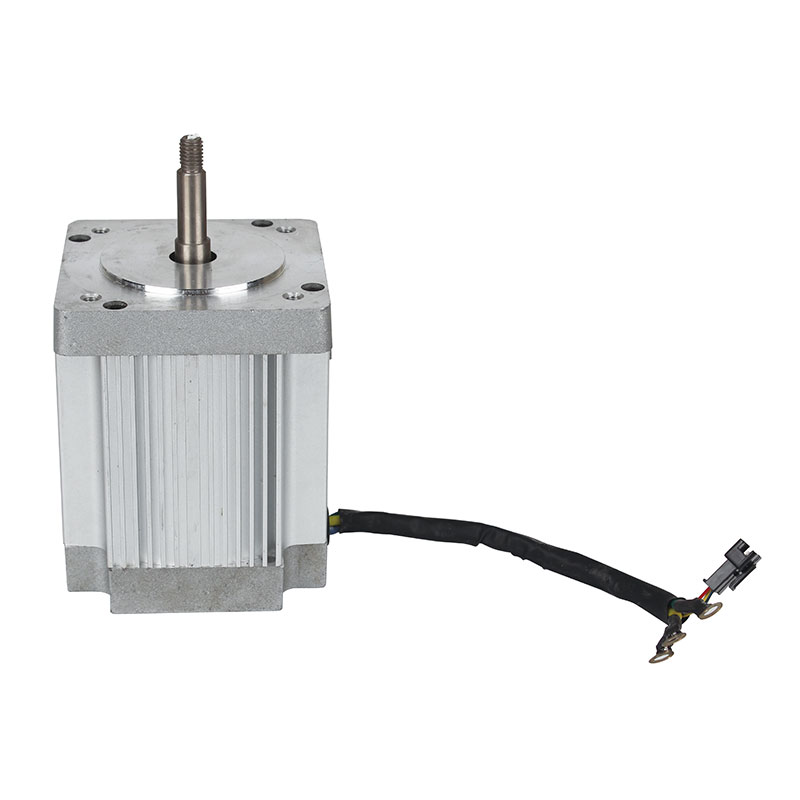

Featuring a 90×90mm standard flange, body length from 87mm to 137mm, and wide DC voltage compatibility of 48V and 310V, this motor delivers stable power output from 300W to 750W, rated torque of 1N.M to 2.5N.M, and a standard rated speed of 3000rpm. Built with premium sintered NdFeB magnets and precision manufacturing, it is the optimal drive choice for commercial equipment makers and industrial system integrators needing reliable, space-saving power solutions.
The 90mm brushless DC motor delivers industry-leading power density, with standard output power of 315W, 550W, and 750W, outperforming peer products in the same frame size. Its compact structure maximizes power output in limited installation space, solving the core pain point of high power demand in tight equipment layouts for business purchasers.
With a brushless design eliminating carbon brush wear, this long-life brushless DC motor achieves a service life of over 25,000 hours, drastically reducing maintenance frequency and unplanned downtime risks for industrial clients. This ensures continuous, stable operation for production lines and equipment, lowering total cost of ownership over the product lifecycle.
Precision electromagnetic optimization enables this 48V brushless DC motor to achieve speed fluctuations of less than ±1%, delivering consistent torque output even under variable load conditions. Strict dynamic balancing calibration ensures operating noise below 65dB, guaranteeing smooth, low-vibration operation in precision industrial scenarios.
This compact brushless DC motor is widely applied in medium-power industrial and commercial scenarios with limited installation space, including small automated production equipment, textile machinery, printing equipment, intelligent warehousing conveying systems, medical auxiliary equipment, packaging machinery, and various power machinery industries.

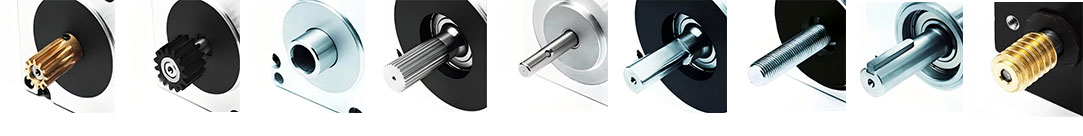

We provide flexible customization services for industrial system integrators and equipment manufacturers to fit unique application needs. Customizable options include motor shaft dimensions, flange specifications, lead wire length, insulation class upgrades, IP rating adjustments, as well as matching gearboxes for further speed reduction and torque boost, electromagnetic brakes for power-off braking, and encoders for accurate motion feedback.

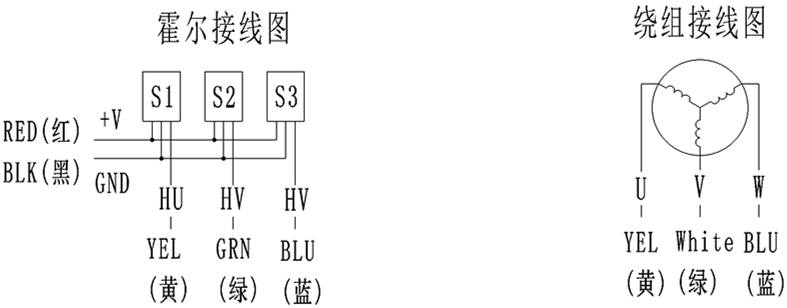

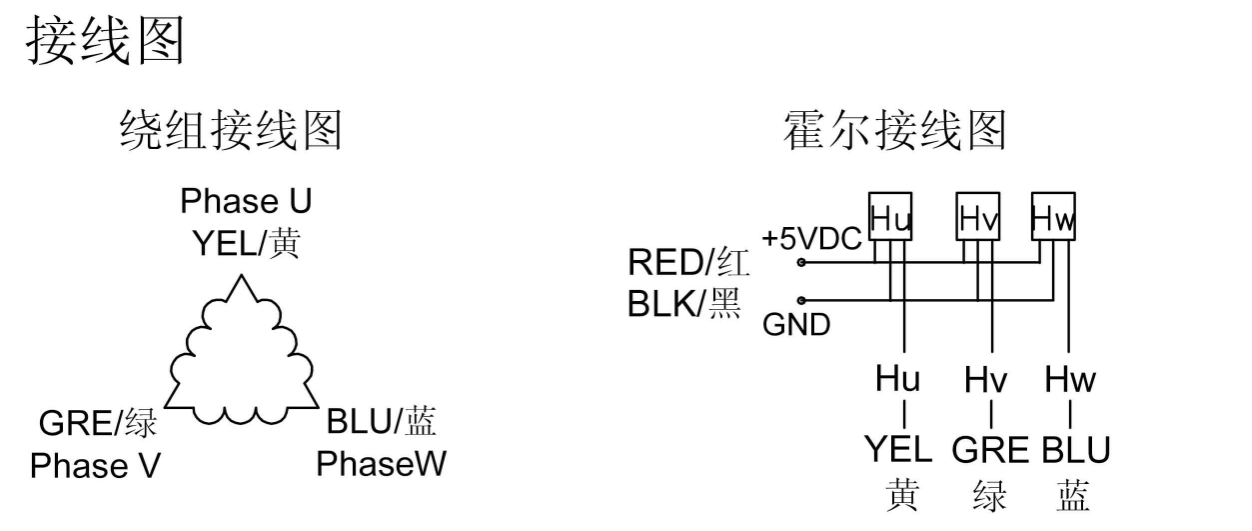

Winding Wiring: Phase U (Yellow), Phase V (Green), Phase W (Blue)
Hall Sensor Wiring: Red (+V), Black (GND), Yellow (Hu), Green (Hv), Blue (Hw)
Mount the motor securely via the 90×90mm flange, ensuring the mounting surface is flat and the motor shaft is coaxially aligned with the load to avoid additional radial and axial loads.
Operate within the standard ambient temperature range of -10℃ to 40℃, with adequate ventilation to prevent overheating during continuous operation.
Double-check wiring connections before power-on to ensure correct phase sequence and avoid motor damage.
Yes, this motor series is designed to be compatible with various gearboxes, which can further reduce output speed and increase torque to meet the needs of low-speed, high-torque applications.
Our standard insulation class is Class B. For high-temperature operating scenarios, we can upgrade to a higher insulation class with adapted materials and components based on your requirements.
We offer flexible MOQ for both standard and customized products, with sample orders available for pre-production verification to meet your trial and mass production needs.
As a reliable power solution partner for industrial equipment manufacturers and system integrators, we provide end-to-end customization and technical support for every 90mm brushless DC motor order. Whether you need bulk standard products or a fully customized drive solution for your specialized equipment, our engineering team is ready to deliver a high-performance, cost-effective solution tailored to your needs. Contact us today to discuss your project and get a customized quote.
