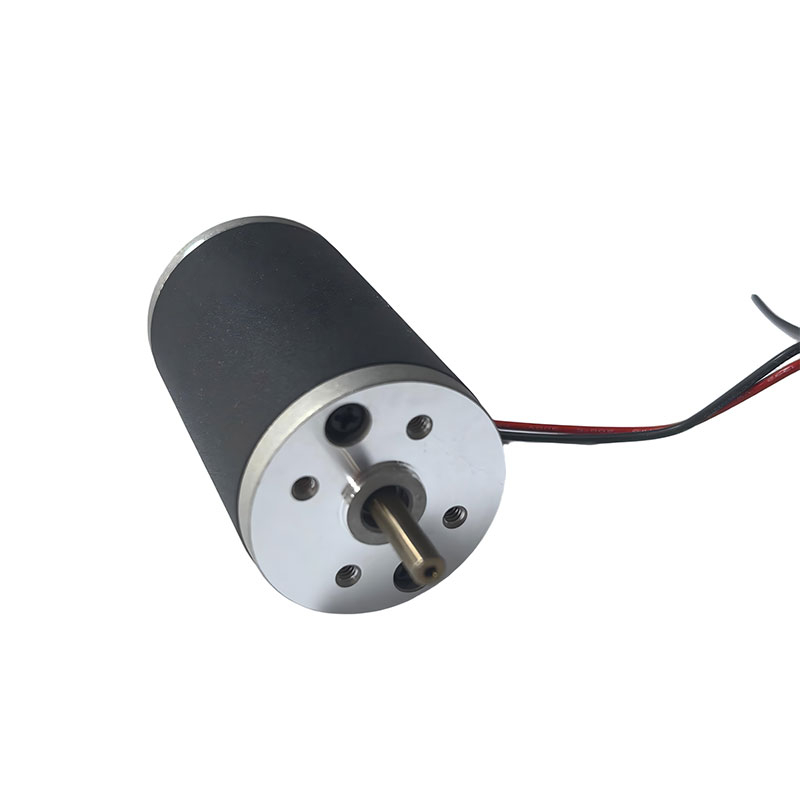

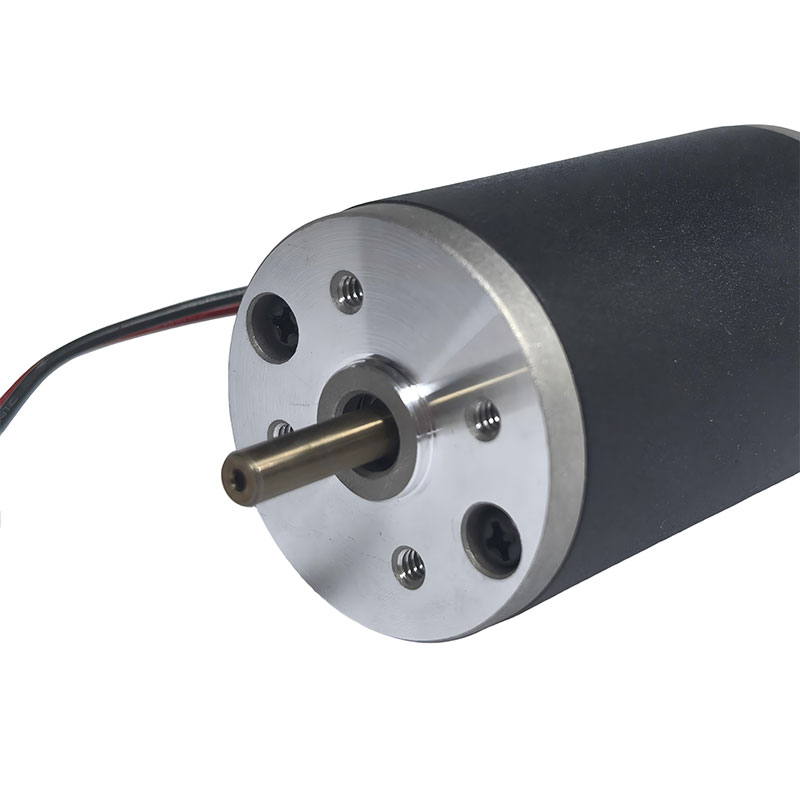

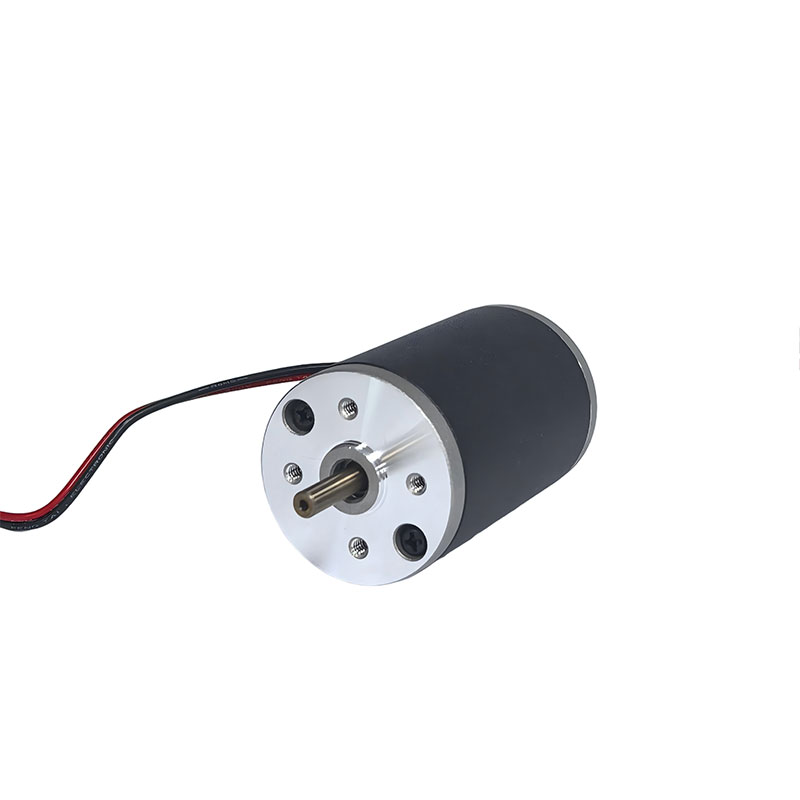

The SLT40 features a 40 × 40 mm flange and a 65–77 mm body length for easy installation in space-limited assemblies. Standardized mounting dimensions and multiple shaft options minimize customization, shorten installation time, and ensure stable alignment and low vibration in cooling fans, actuators, pumps, and auxiliary modules.
| Quantity: | |
|---|---|
General Specifications | |
Item | Specification / Description |
Magnet | Nd-Fe-B |
Insulation Class | B 130 °C / C / F 155 °C |
Temperature Rise | ≤ 75 K |
Environment Temperature & Humidity | –15 °C ~ +35 °C，45 % ~ 75 % |
Ingress Protection & Cooling | IP50 / IC00 |
Installation | IMB14 |
Shaft OD | Φ5.0 mm MAX |
Bearing | Ball |
Winding | |
1）Voltage | 6–90 V DC |
2）Speed | 1 000–8 000 rpm |
3）Power | 5–60 W |
Components | Encoder Toothed Pulley |
Motor Model | Rated Voltage (V) | Body Length (mm) | Rated Speed (rpm) | Rated Torque (N·m) | Rated Power (W) | No-Load Speed (rpm) |
SLT40ZYT65-1240 | 12 | 65 | 3000 | 0.028 | 9 | 4000 |
SLT40ZYT72-2480 | 24 | 72 | 7300 | 0.06 | 45 | 8000 |
SLT40ZYT77-4862 | 48 | 77 | 5400 | 0.05 | 28 | 6200 |
General Specifications: Nd-Fe-B/ferrite magnet, B/F insulation class, ≤75 K temperature rise, IP50 ingress protection, ball bearing construction, 6–90 V DC customizable voltage range | ||||||

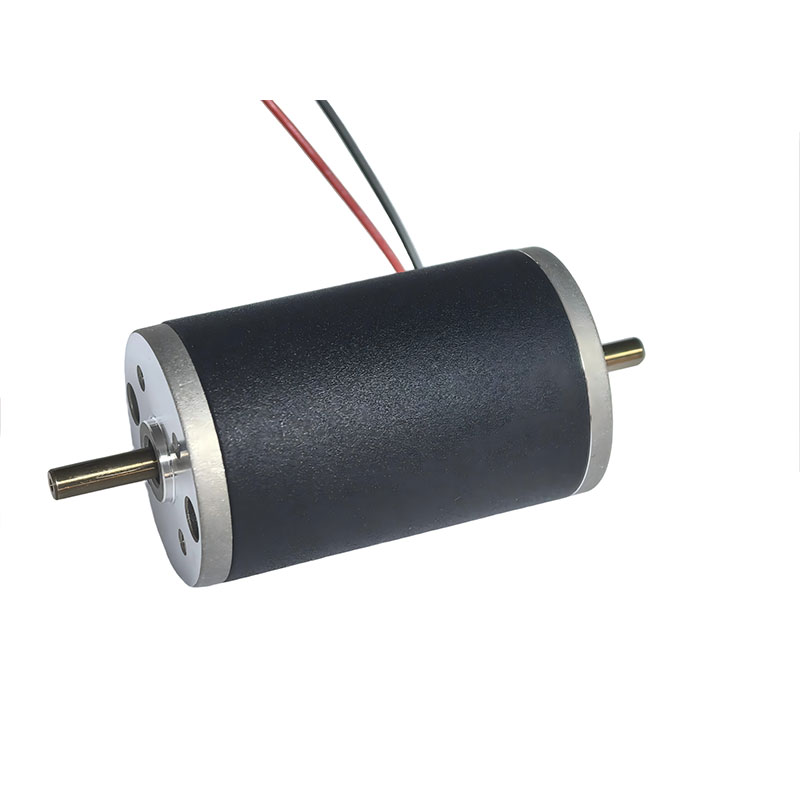

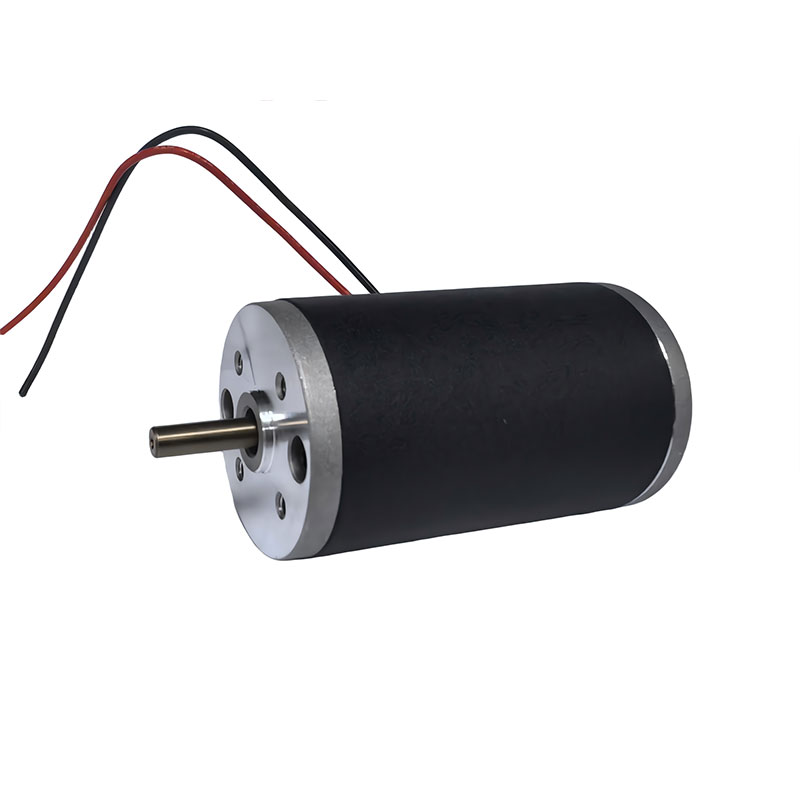

Our Series 40 Brushed DC Motor is a compact, high-performance DC drive solution engineered for space-constrained industrial and OEM applications. Featuring a standardized 40×40 mm flange and 65–77 mm body length, this motor delivers exceptional flexibility with 12V, 24V, and 48V voltage options, a 9–28 W power range, and rated speeds from 3,000 to 7,400 rpm. Built with a mature brushed architecture, it offers simplified control, straightforward integration, and consistent performance, making it the go-to choice for industrial design engineers and high-volume manufacturing enterprises seeking reliable, cost-effective motion control solutions.
The 40mm brushed DC motor features a miniaturized form factor with standardized mounting dimensions and multiple shaft options, enabling seamless integration into assemblies with limited space. Optimized dynamic balancing ensures stable alignment and low vibration during operation, eliminating extensive customization and reducing installation time for cooling fans, actuators, and auxiliary modules.
Available in 12V, 24V, and 48V configurations, our compact brushed DC motor is fully compatible with common automotive and industrial DC systems worldwide. Its 9–28 W power band covers light- to medium-duty applications, allowing design teams to balance efficiency and thermal performance while streamlining sourcing and inventory management for global production programs.

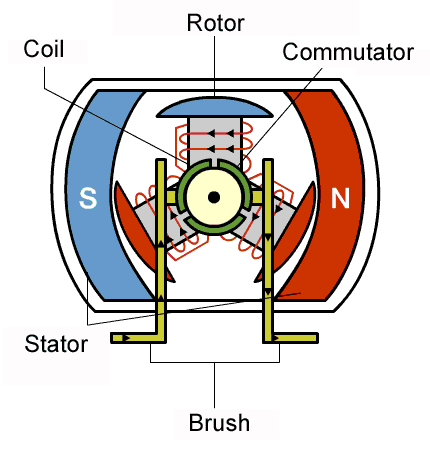

Engineered for frequent start/stop cycles, this high starting torque DC motor delivers robust torque at startup and low speeds, with a rated torque range of 0.028–0.05 N·m for reliable loaded startup. Its mechanical commutation enables simple, precise speed regulation via basic PWM methods, eliminating the need for complex drive electronics and reducing system complexity.

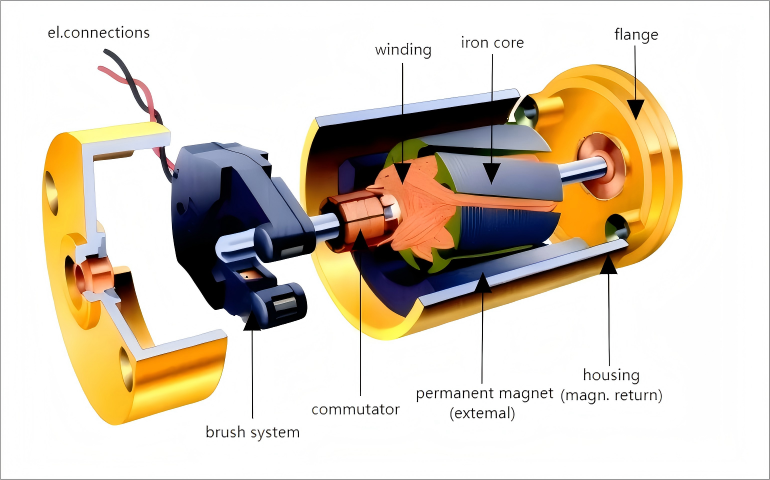

A simplified, mature architecture reduces part count and assembly complexity, delivering competitive unit costs for high-volume OEM projects. Easy brush and commutator servicing, paired with high parts commonality, lowers long-term maintenance and spare inventory costs, making it ideal for cost-sensitive industrial applications.
Our industrial brushed DC motor is optimized for a wide range of use cases, including cooling fan drives for industrial equipment, linear actuators for automation systems, small fluid pumps for medical and industrial use, automotive auxiliary modules, consumer appliance drive systems, and portable power tool drives. It is also widely adopted by OEMs for auxiliary motion control in robotics and smart manufacturing equipment.
We offer comprehensive customization for our custom brushed DC motor to meet unique project requirements. Available modifications include custom winding configurations (6–90 V DC voltage, 1,000–8,000 rpm speed, 5–60 W power range), custom shaft dimensions and machining, compatibility with encoders and toothed pulleys, tailored insulation class ratings, and custom lead wire and connector options. All custom motors comply with CE and RoHS standards, with a minimum order quantity of 3 units.

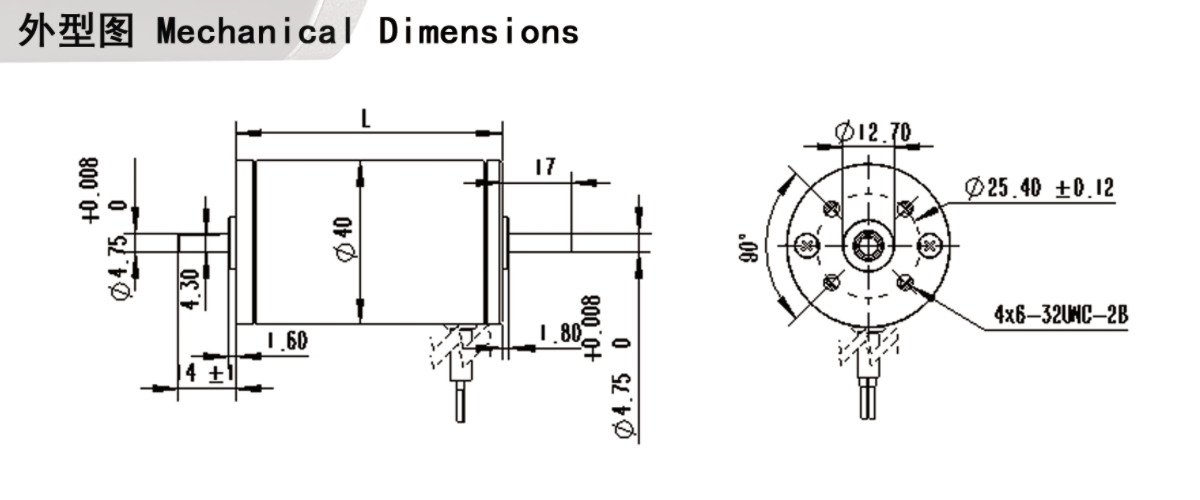

This 12V/24V/48V brushed DC motor uses a simple two-wire DC connection, with polarity reversal for direction changes and PWM signal input for speed control. It is designed for IMB14 flange mounting, with 4×6-32UNC-2B standard mounting holes for secure installation. The maximum shaft OD is Φ5.0 mm, with strict alignment requirements to minimize radial load and extend bearing life. Operate within an ambient temperature range of –15 °C ~ +35 °C and 45% ~ 75% humidity for optimal performance.
We operate a state-of-the-art manufacturing facility in Changzhou, Jiangsu, and welcome on-site visits for factory audits and product validation.
The minimum order quantity is 3 units for both standard and custom-configured motors.
All our Series 40 Brushed DC Motor units are fully CE and RoHS compliant, with batch inspection certificates available for every order.
In-stock units deliver in 1–2 business days, samples take 10–14 business days, and bulk production orders are fulfilled within 20–25 business days.
We offer competitive tiered pricing for large-volume orders, with discounts based on order quantity and customization requirements.
Whether you are an OEM design engineer, industrial procurement specialist, or manufacturing enterprise seeking a reliable compact DC motor solution, our team is ready to deliver a tailored motion control package for your project. Contact us today to request a free sample, detailed product
datasheet, or custom quote, and let our engineering team support your product development cycle.
