This 57 mm high-precision motor is engineered for accurate positioning and smooth motion control, delivering 1.8° step resolution with advanced microstepping capability. Precision machining and optimized magnetic materials minimize vibration and noise while maintaining ±0.05° positioning accuracy. Designed for medical devices, optical systems, and precision automation, it ensures exceptional repeatability and stable performance in high-demand applications.
| Quantity: | |
|---|---|
Item | Specification / Description |
Magnet | Nd-Fe-B |
Insulation Class | B 130 °C / F 155 °C |
Temperature Rise | ≤ 75 K |
Environment Temperature & Humidity | –15 °C ~ +35 °C, 45 % ~ 75 % RH |
Ingress Protection & Cooling | IP50/ IC00 |
Installation | IMB14 |
Shaft OD | Φ8.0 mm MAX |
Bearing | Ball |
Winding | |
1） Voltage | 12 – 90 V DC |
2）Speed | 1 000 – 4 000 rpm |
3）Power | 10 – 120 W |
Components | Encoder Toothed Pulley Brake |
Model No. | Rated Voltage (V) | Body Length (mm) | No-Load Speed (rpm) | No-Load Current (A) | Rated Speed (rpm) | Rated Current (A) |
50ZY24-026 | 24 | 82 | 4000 | 0.6 | 3000 | 1.9 |
50ZY24-039 | 24 | 69 | 4850 | 0.6 | 3500 | 2.8 |
50ZYN82-2448 | 24 | 83 | 4800 | 0.7 | 3100 | 5 |
50ZYT98-2430 | 24 | 98 | 3000 | 0.4 | 2100 | 2.8 |
50ZYT100-2460 | 24 | 100 | 6000 | 1 | 4900 | 5 |

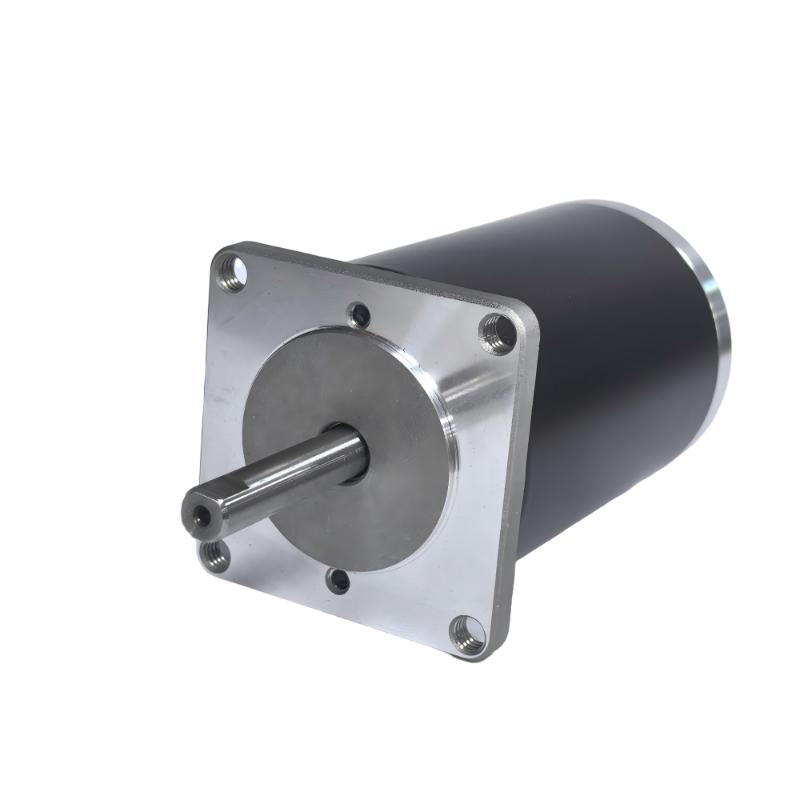

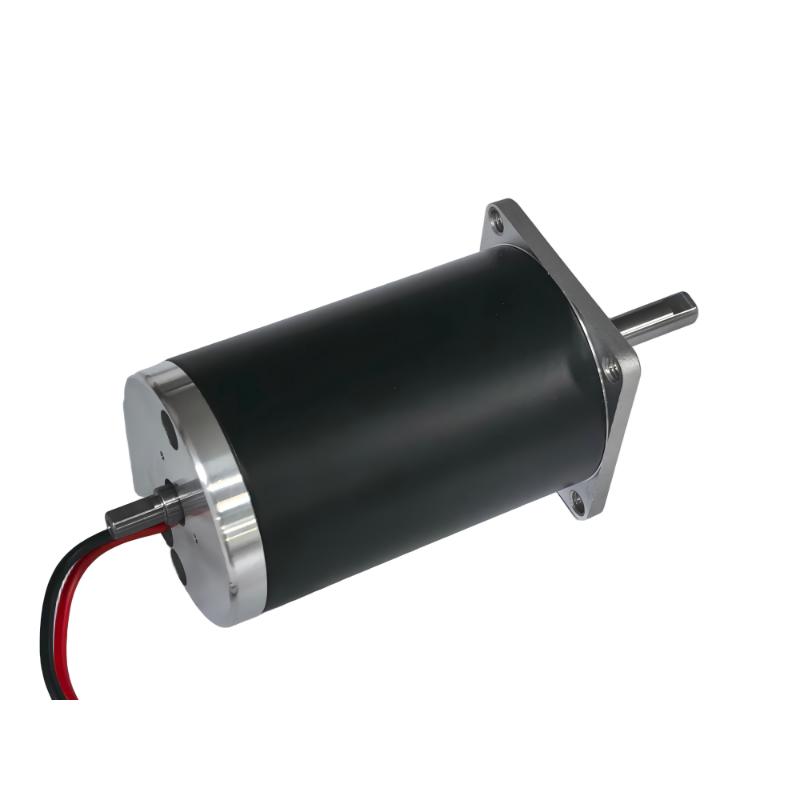

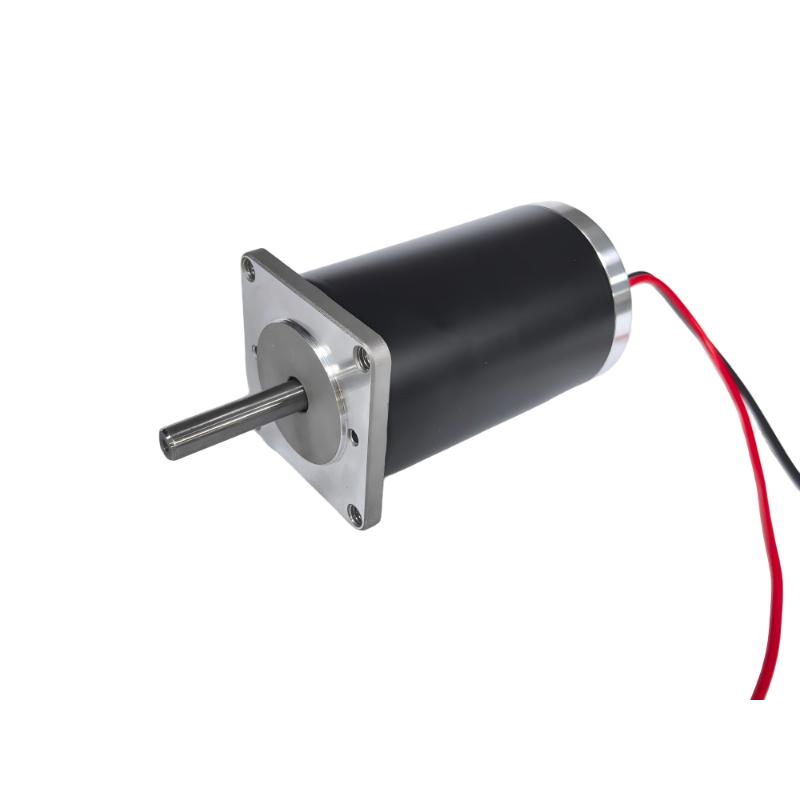

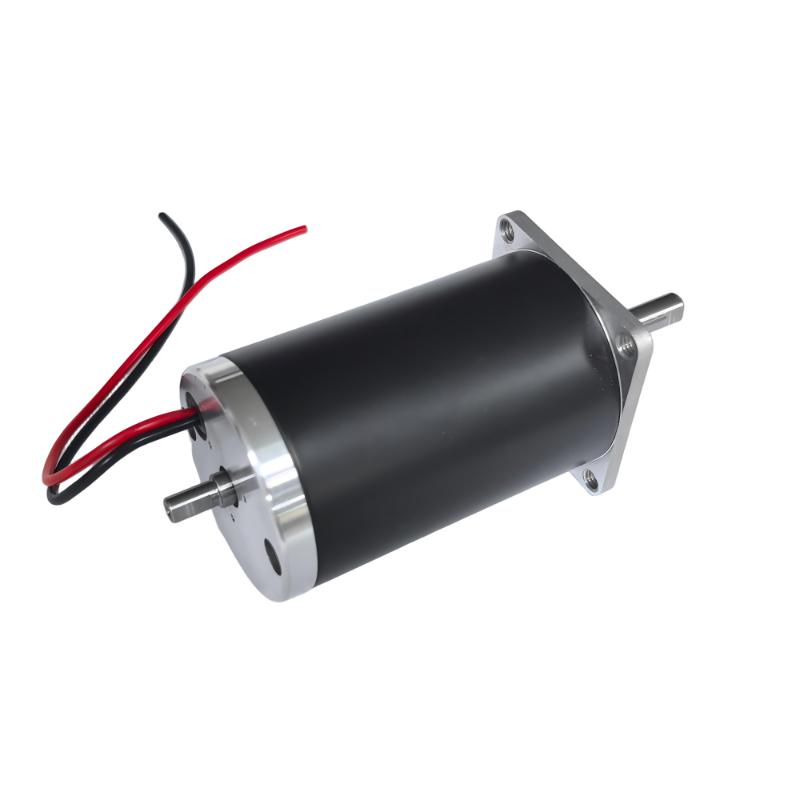

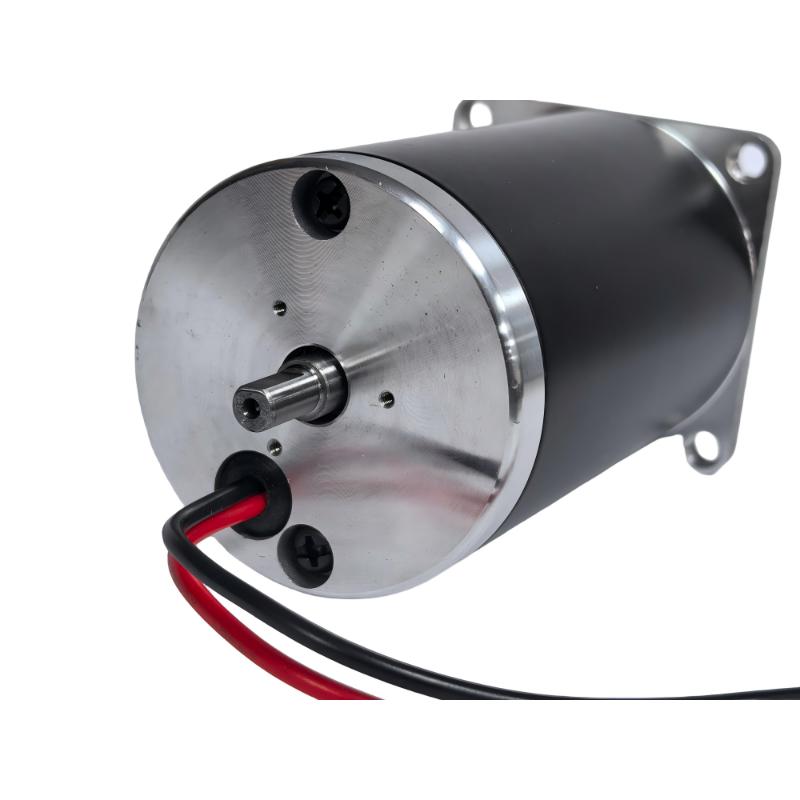

The Series 57 Brushed DC Motor is a compact, high-precision industrial drive solution purpose-built for precision equipment manufacturers, automation system integrators, and industrial solution providers requiring space-saving, stable performance in confined installations. Featuring a 57×57 mm flange and a compact body length of 97–122 mm, this motor maximizes space utilization without compromising power output. Optimized for 24V DC operation, it delivers 56–115 W of stable power, a rated speed range of 2500–3600 rpm, and rated torque from 0.15 to 0.4 N·m. With a robust brushed structure, premium magnetic materials, and flexible configuration options, it strikes an optimal balance between precision, reliability, and cost-effectiveness for modern industrial automation systems.

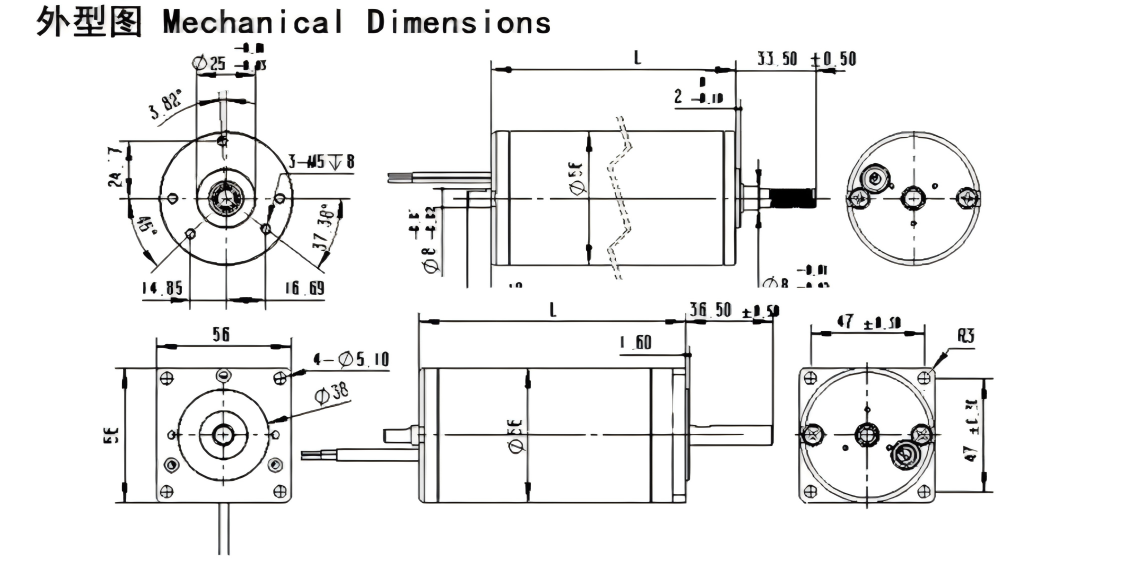

The 57×57mm compact brushed DC motor adopts a standardized IMB14 flange mounting design, with a minimal footprint that fits seamlessly into space-limited equipment enclosures. Its optimized body structure maintains high structural rigidity while reducing overall volume, making it ideal for equipment with tight installation boundaries.
Engineered for precision motion, this motor delivers 1.8° step resolution with advanced microstepping capability, achieving ±0.05° positioning accuracy through high-precision machining and optimized magnetic circuit design. It minimizes vibration and noise during operation, ensuring exceptional repeatability for high-precision industrial applications.

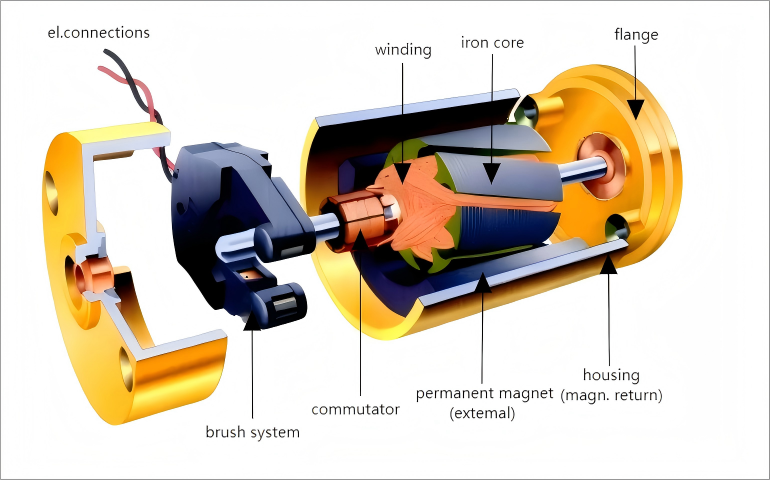

Equipped with high-performance Nd-Fe-B or ferrite magnets, the 24V industrial brushed DC motor features an optimized magnetic flux layout that delivers consistent holding torque and smooth power delivery even under continuous load. With an insulation class of B (130 °C) / F (155 °C) and temperature rise ≤ 75 K, it maintains stable performance in long-term industrial operation.
This motor supports customizable DI/DO configuration, with 3 digital input channels and 1 dedicated digital output channel for seamless integration with intelligent automation systems. It is compatible with optional accessories including encoders, toothed pulleys, and brakes, enabling tailored functionality for complex industrial control requirements.
With full CE and RoHS compliance, it meets global industrial safety and environmental standards. Mature manufacturing processes and a simplified brushed structure reduce production costs, delivering a high-value drive solution that lowers upfront investment and long-term operational costs for industrial users.
The Series 57 precision brushed DC motor is widely used in medical devices, optical systems, textile machinery, intelligent automation equipment, small pump and valve drives, precision transmission systems, and smart manufacturing machinery, catering to industrial users requiring high-precision, compact drive solutions.
We provide comprehensive customization for the customizable brushed DC motor, including tailored operating voltage (12–90 V DC), rated speed (1000–4000 rpm), output power (10–120 W), shaft dimensions, winding parameters, and insulation class. We also support custom integration of encoders, brakes, toothed pulleys, and other accessories to match your specific system requirements.
Install the motor using the standardized IMB14 flange mounting, ensuring secure fixation with matching fasteners, and avoid exceeding the rated radial and axial load limits of the shaft.
Connect the motor leads to a 24V DC power supply (or custom rated voltage), with polarity reversal to adjust rotation direction, and compatible PWM drive for speed control.
Ensure reliable grounding of the motor housing to reduce electrical interference, and install the motor in a well-ventilated environment to maintain optimal heat dissipation.
Use a flexible coupling to align the motor shaft with the load, avoiding misalignment that may cause bearing wear and premature failure.
We are a professional motor manufacturer with our own production facility in Changzhou, Jiangsu Province, and we sincerely welcome you to visit our factory for on-site inspection.
The standard MOQ is 3 units, supporting small-batch orders for prototype and testing purposes.
For non-customized orders: in-stock units ship within 1–2 working days, sample orders take 10–14 working days, and bulk production orders are delivered within 20–25 working days.
Yes, all our Series 57 brushed DC motors are fully CE and RoHS certified, complying with international industrial standards.
Absolutely, we offer full customization of voltage, speed, torque, shaft dimensions, and compatible accessories to meet your unique application requirements.
As a trusted motor supplier for precision equipment manufacturers and automation system integrators, we provide tailored Series 57 Brushed DC Motor solutions to match your exact application needs. Contact us today to request a custom quote, order samples, and collaborate with our engineering team on your specialized motor requirements.
