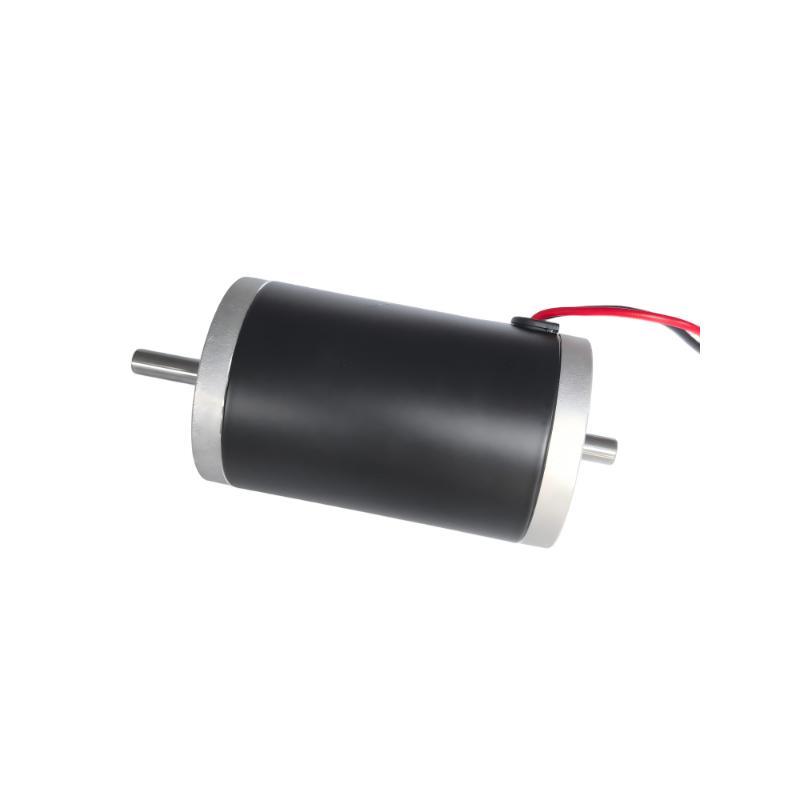

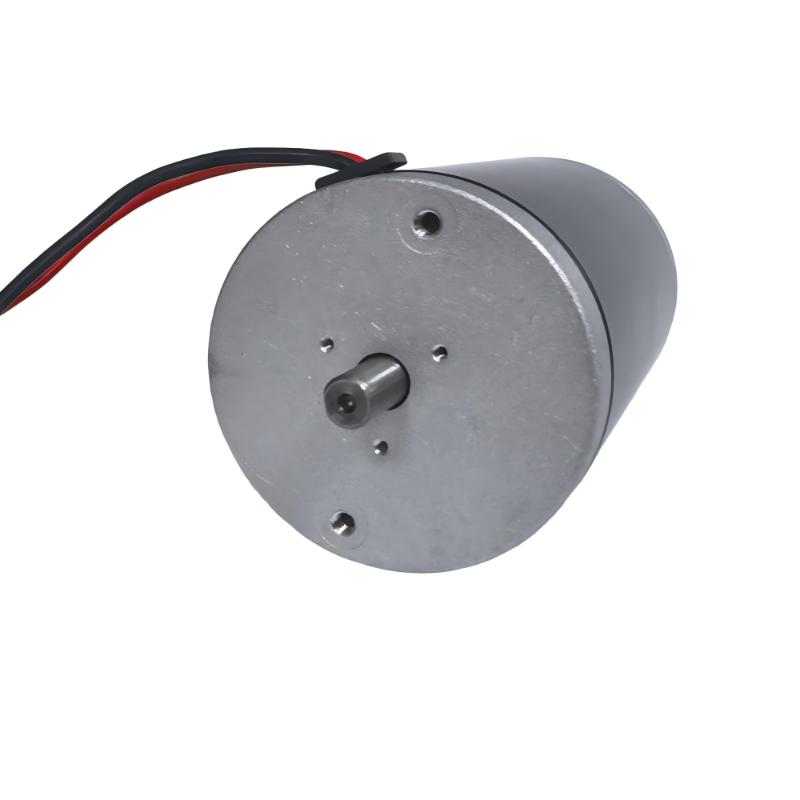

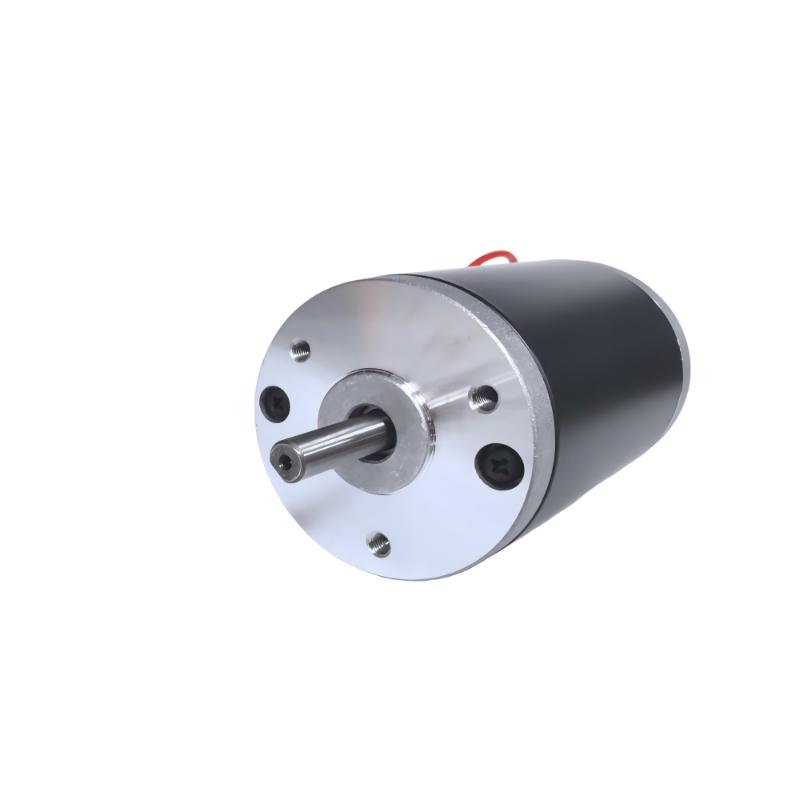

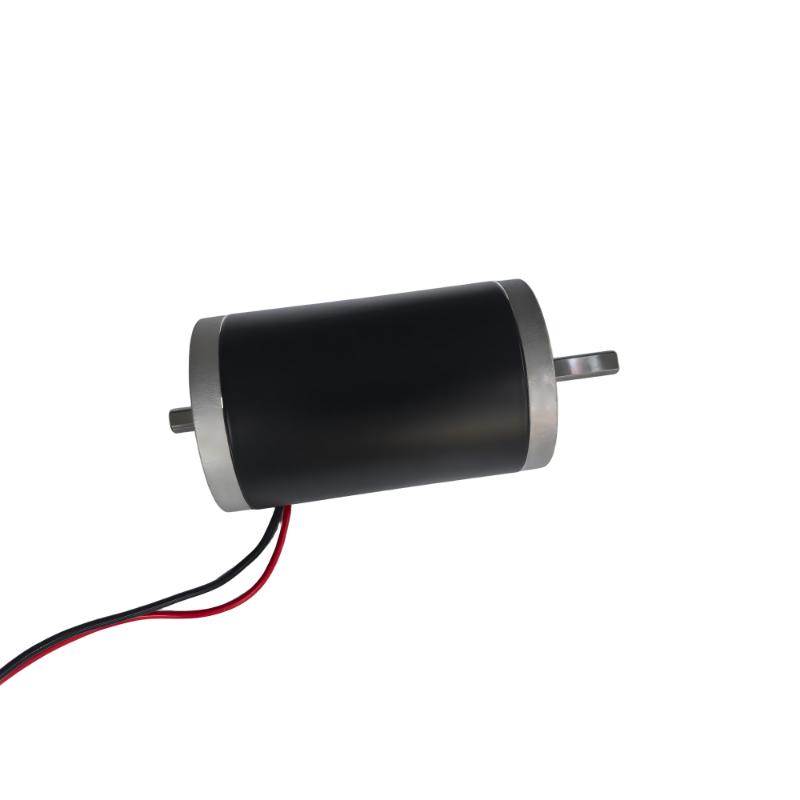

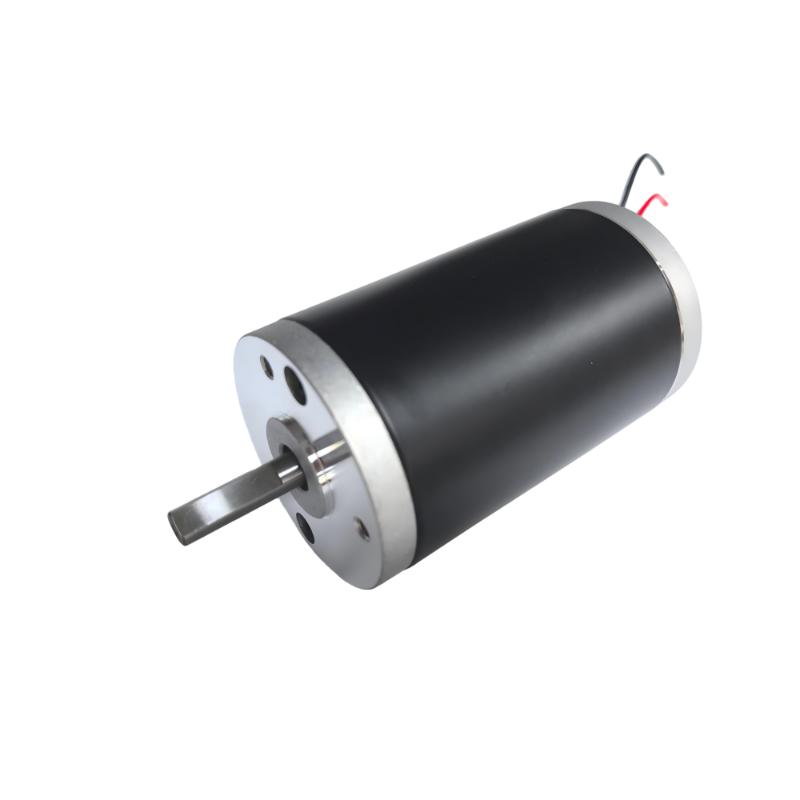

Built on a 63×63 mm flange brushed DC motor platform, this model delivers high starting torque, rapid dynamic response, and excellent running stability. The classic mechanical commutation DC motor structure ensures dependable torque output with a simple control circuit. Easy to install and widely accepted in the market, it is a reliable high-torque DC motor solution for industrial drive applications.
| Quantity: | |
|---|---|
(Model) | (V) | (RPM) | (A) | (RPM) | (A) | (N·m) | (W) | (mm) |
60ZY12-008 | 12 | 6200 | 2.5 | 4300 | 28 | 0.4 | 180 | 115 |
60ZY24-001 | 24 | 3000 | 0.3 | 2300 | 5.1 | 0.3 | 70 | 110 |
60ZY24-016D | 24 | 4200 | 0.8 | 3150 | 5.5 | 0.25 | 100 | 90.5 |
60ZYT124-1843 | 18 | 4300 | 1.1 | 3550 | 9.5 | 0.3 | 112 | 124 |
Item | Core Specification |
Flange Size | 63×63 mm |
Magnet Material | Ferrite |
Insulation Class | Class B 130℃ / Class F 155℃ |
Protection & Cooling | IP50 & below, IC00 |
Voltage Range | 12~90 V DC |
Rated Power Range | 30~180 W |
Rated Speed Range | 900~5000 rpm |
Rated Torque Range | 0.25~0.4 N·m |
Mounting Method | IMB5 / IMB14 |
Max Shaft OD | Φ8.0 mm |
Optional Accessories | Encoder, Toothed Pulley, Brake |

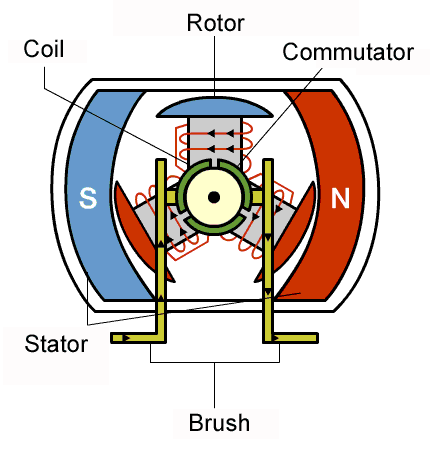

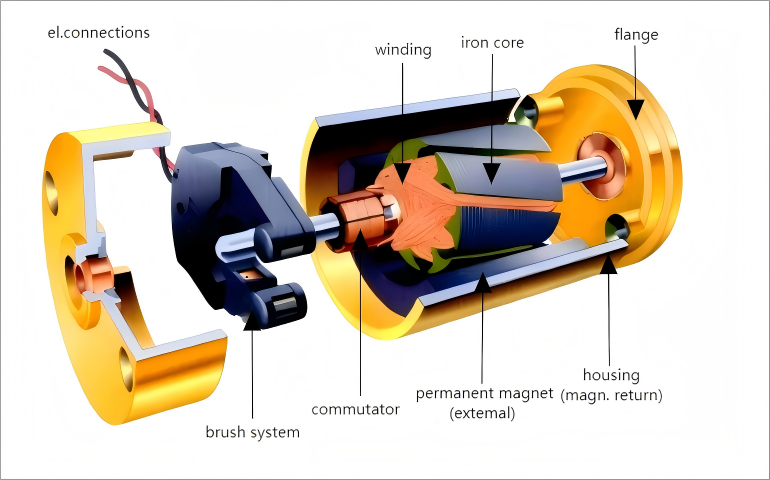

The Series 63 Brushed DC Motor is a compact, cost-effective industrial drive solution built on a 63×63 mm flange platform, engineered for flexible installation and reliable torque output across diverse motion control scenarios. Supporting a wide 12V to 90V DC operating voltage range, this motor delivers 30W to 180W rated power with 900 to 5000 rpm rated speed, making it adaptable to varying industrial load requirements. Its classic mechanical commutation structure, paired with a precision-balanced carbon brush and commutator system, minimizes operating noise and wear, ensuring long service life and consistent performance for industrial automation and cost-sensitive drive applications.
This 63×63 mm compact brushed DC motor features an adjustable body length ranging from 90.5 mm to 124 mm, with support for IMB5 and IMB14 mounting methods to fit space-constrained industrial installations. Equipped with high-precision ball bearings and a maximum 8.0 mm shaft outer diameter, it delivers stable running with minimal vibration, even during continuous operation.
As a high starting torque brushed DC motor, it delivers 2-3× the rated torque at startup, easily overcoming static friction in heavy-load equipment. With 0.25 to 0.4 N·m rated torque, it offers rapid dynamic response and consistent torque output across variable loads. It features Class B (130℃) / Class F (155℃) insulation, ≤75 K temperature rise, and adapts to -15℃ to +35℃ operating environments.
Compared with brushless motors, this industrial brushed DC motor has a simpler structure with an intuitive control circuit, enabling quick commissioning and setup without complex drive systems. Its ferrite magnet design reduces manufacturing costs while maintaining stable performance, delivering exceptional value for high-volume Industrial Applications.
This Series 63 Brushed DC Motor is widely used in mechanical valves, automotive wiper systems, small conveyor drives, household appliances, industrial automation equipment, and economical motion control devices. It is the ideal choice for equipment manufacturers and system integrators seeking a balance of performance, cost, and ease of use.
We offer full customization for the Series 63 Brushed DC Motor to meet your unique application needs. Our engineering team can adjust winding parameters to customize voltage, speed, and power ratings, modify insulation class and mounting configurations, and integrate optional accessories including encoders, toothed pulleys, and brakes. All custom solutions are rigorously tested to ensure compliance with industrial standards.
Before wiring, confirm the power supply matches the motor’s rated voltage to avoid overload damage. Connect the positive and negative poles according to the wiring diagram, ensuring secure contact between the carbon brush and commutator with no loose connections. For IMB5/IMB14 mounting, tighten flange bolts with uniform torque to prevent body deformation and ensure coaxial alignment with the load. Perform a no-load test run after installation to check operating noise and temperature rise, and connect the load only after confirming no abnormalities.
All motors in this series are CE and RoHS certified, fully compliant with global industrial safety and environmental standards.
The minimum order quantity is 3 units, with flexible terms available for sample testing and bulk procurement.
In-stock models ship within 1-2 working days; sample orders take 10-14 working days; bulk production orders take 20-25 working days (customized orders excluded).
It is designed for 45%~75% RH operating conditions with an IP50 protection rating, and customized protection solutions are available for special high-humidity industrial scenarios.
As a professional motor manufacturer based in Changzhou, Jiangsu, we provide reliable, customized motor solutions for industrial equipment manufacturers, system integrators, and motion control solution providers. Whether you need standard Series 63 Brushed DC Motor units or fully customized drive solutions, our engineering team offers one-on-one technical support and rapid response to your requirements. Contact us today to get your exclusive quote and tailored technical solution.
