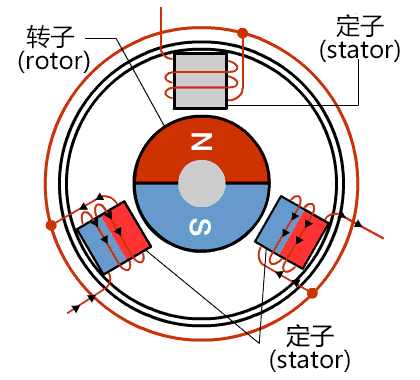

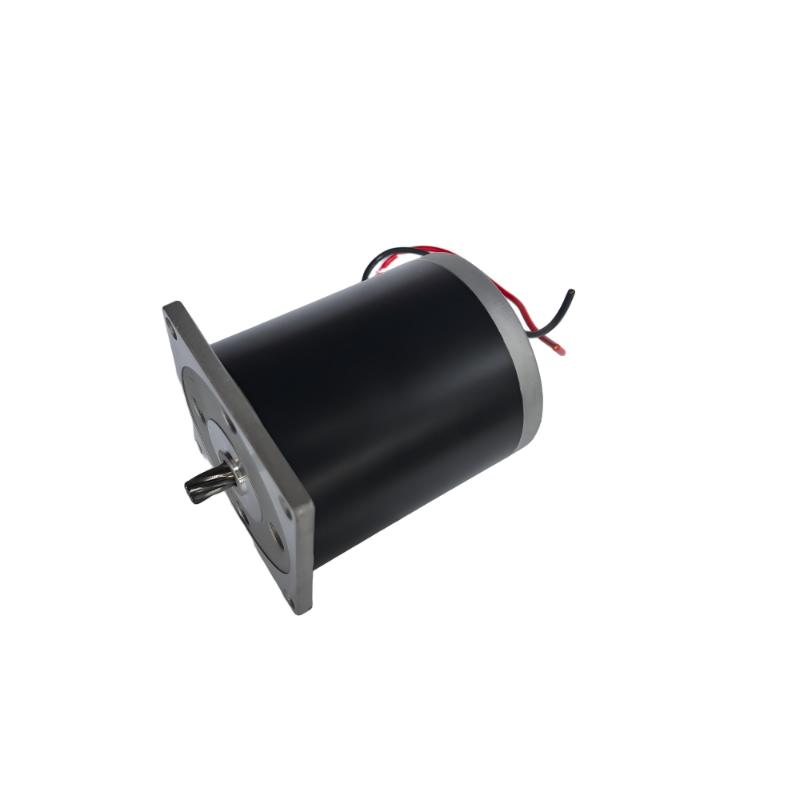

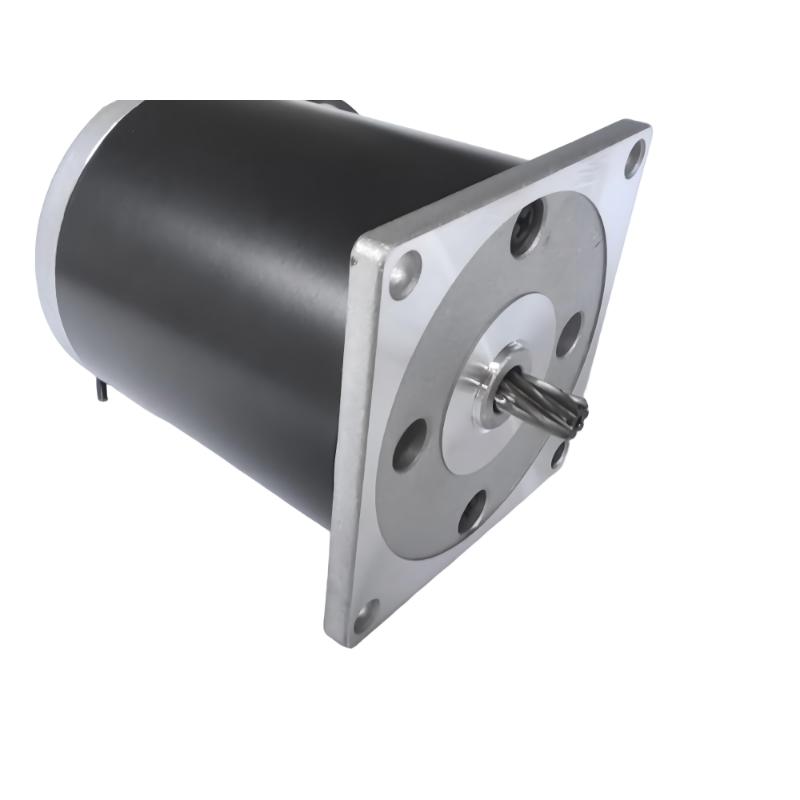

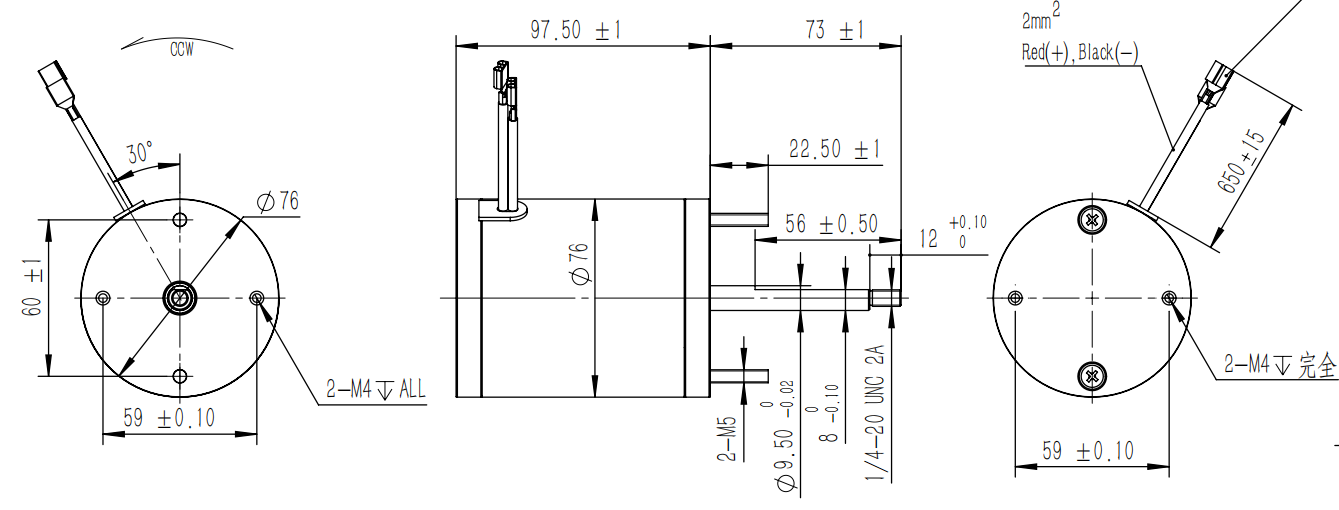

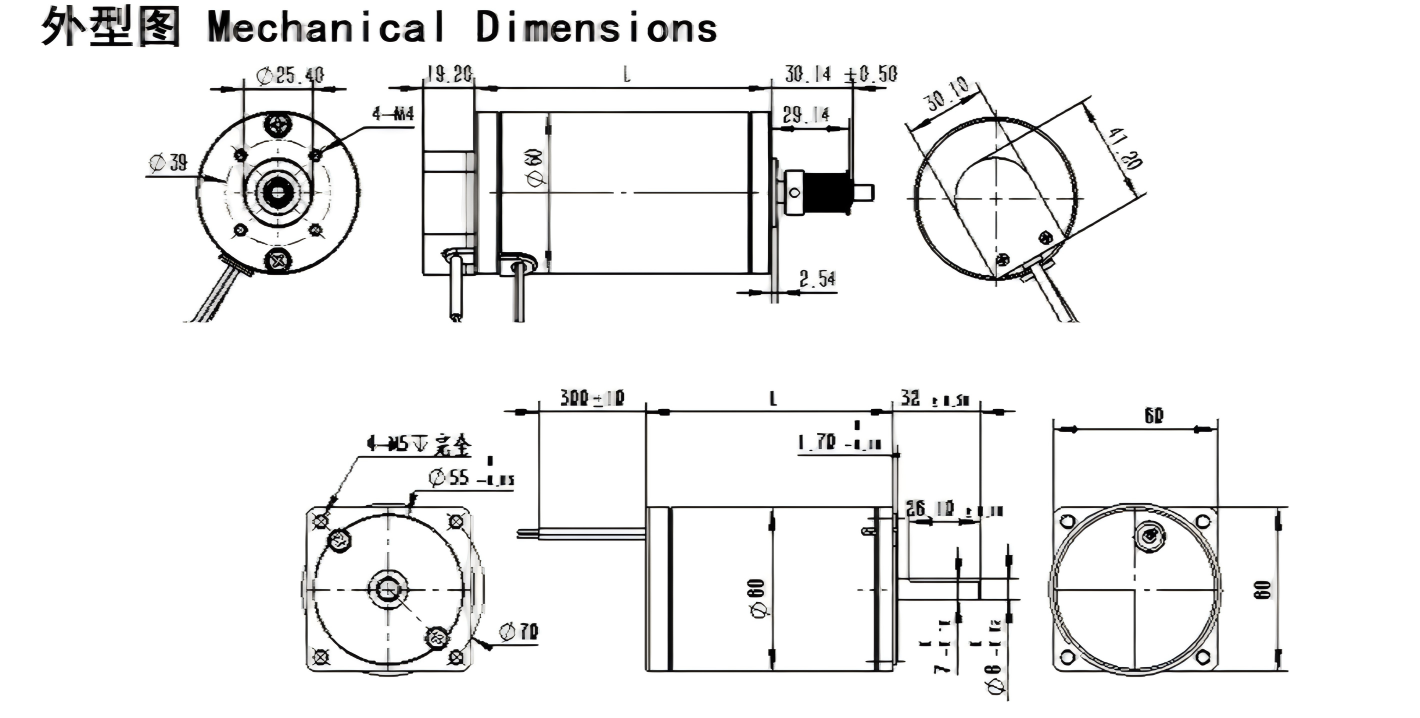

A standard 76 × 76 mm end-cover flange and robust mounting pattern simplify mechanical integration and alignment. The 90.5–124 mm body length supports multiple shaft and coupling configurations for pumps, conveyors, and actuators. The rigid flange and bearings improve radial/axial stability under load, reducing vibration and extending service life while shortening assembly time for OEM production.
| Quantity: | |
|---|---|
Electrical Specifications | ||||||||
Model | Rated Voltage (V) | No-load speed (rpm) | No-load current (A) | Rated speed (rpm) | Rated current (A) | Rated torque (N·m) | Rated Power (W) | Length (mm) |
SLT76ZY12-001 | 12 | 4800 | 1.5 | 3800 | 13.2 | 0.25 | 99 | 97 |
SLT76ZY24-001 | 24 | 3200 | 0.7 | 2600 | 4 | 0.23 | 62 | 97 |
SLT76ZY24-002 | 24 | 3600 | 0.8 | 2800 | 7 | 0.4 | 115 | 112 |
SLT76ZY100-001 | 100 | 2400 | 0.15 | 1900 | 1.3 | 0.4 | 79 | 112 |
SLT76ZY24-003 | 24 | 3000 | 0.5 | 2500 | 9.7 | 0.6 | 155 | 137 |
SLT76ZY220-001 | 220 | 3700 | 0.08 | 3000 | 1 | 0.45 | 140 | 137 |
Item | Core Specification |
Motor Type | Series 76 Industrial Brushed DC Motor |
Standard Voltage Options | 12V / 18V / 24V DC |
Rated Power Range | 70–180 W |
Rated Speed Range | 2300–4300 rpm |
Insulation Class | B Class (130℃) / F Class (155℃) |
Ambient Operating Temperature | -15℃ ~ +35℃ |
Max Shaft Diameter | Φ8.0 mm |

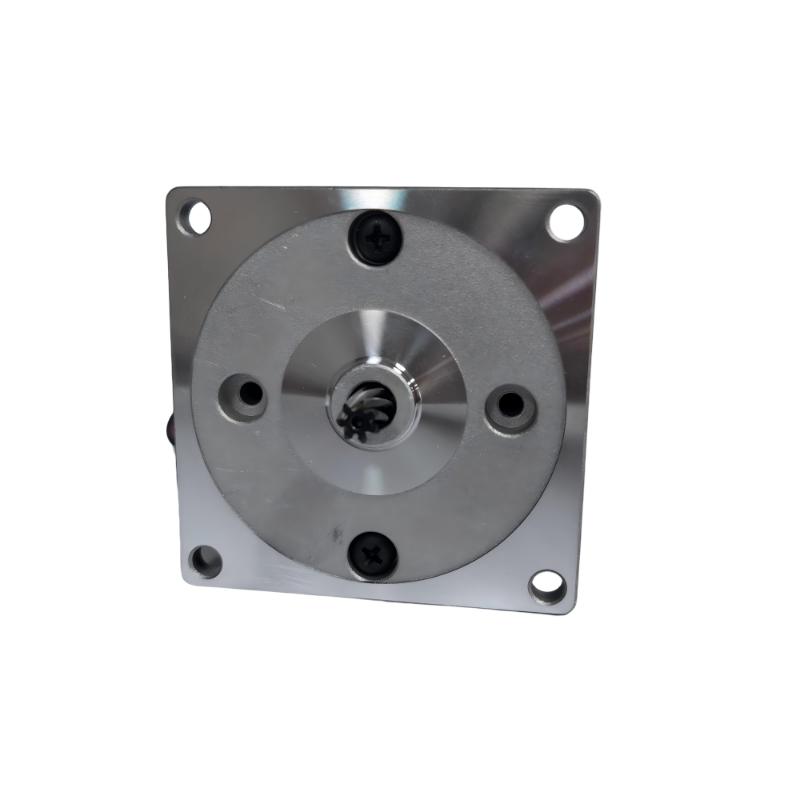

Mounting Options | IMB5 / IMB14 |
Our Series 76 Brushed DC Motor is a rugged, industrial-grade brushed DC motor, purpose-built for industrial equipment OEMs, fluid system manufacturers, and automation transmission system integrators requiring reliable, high-torque, cost-effective drive solutions. Featuring a standard 76×76 mm end cap flange, 90.5–124 mm adjustable body length, and broad 12V/18V/24V voltage compatibility, this motor delivers 70–180 W of power with exceptional starting torque and overload tolerance. Its mature brushed architecture offers simpler control and lower integration costs than brushless alternatives, making it the ideal choice for continuous-duty industrial and automotive auxiliary applications.

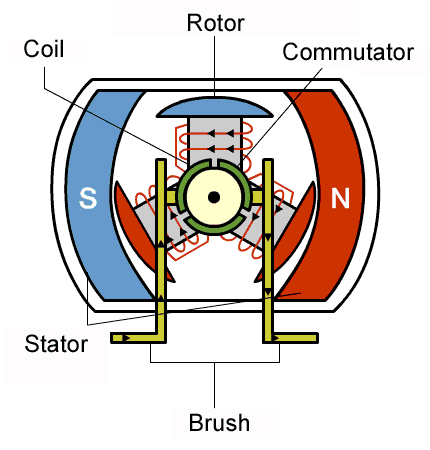

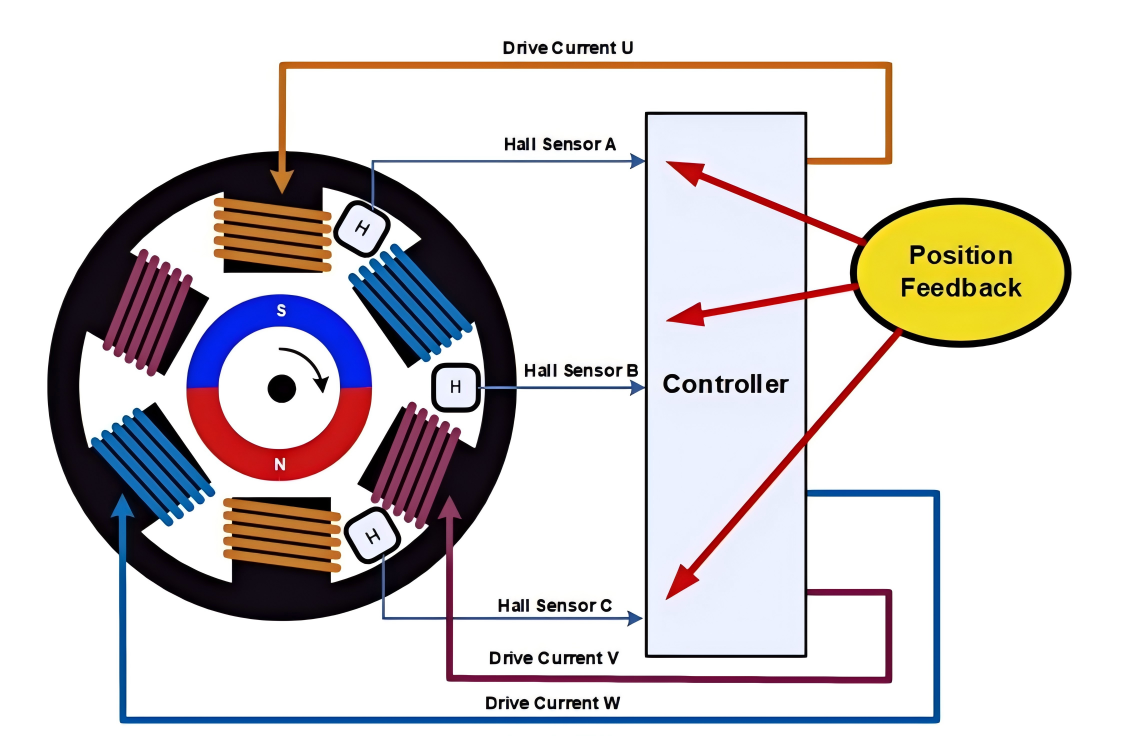

Unlike brushless motors that require complex drive electronics, our 76mm industrial brushed DC motor features a straightforward brushed architecture, enabling simple speed and torque control with basic DC power supplies. The standardized 76×76 mm flange supports IMB5/IMB14 mounting configurations, ensuring drop-in integration into existing industrial systems with minimal redesign.
Engineered with a high-performance ferrite magnet system and optimized winding design, this motor delivers 2–3 times its rated torque at startup, enabling direct heavy-load starting to overcome static friction in high-inertia systems. This eliminates the need for complex soft-start electronics, reducing system cost and complexity for industrial drive applications.
This heavy-load brushed DC motor withstands short-term severe overloads and full stall conditions without immediate shutdown, a critical advantage over sensitive brushless drive systems. Rated for a maximum temperature rise of 75K, with B/F class insulation options, it delivers reliable performance in harsh industrial operating environments with minimal unplanned downtime.
Offered in 12V/18V/24V variants with a 70–180 W power range and 900–5000 rpm adjustable rated speed, this motor adapts to a wide range of industrial and automotive DC systems. Its flexible winding configuration allows for custom speed and torque tuning to match exact application requirements, minimizing the need for full custom designs.
This Series 76 high torque brushed DC motor is optimized for industrial pumps, conveyor systems, valve actuators, automotive auxiliary systems, industrial automation equipment, household appliances, heavy-duty electrical equipment, fluid handling systems, and material handling machinery.
We offer full customization for industrial OEMs and system integrators, including custom winding configurations for voltage/speed/torque tuning, encoder/synchronous pulley/brake integration, custom shaft and flange modifications, and adjustable mounting configurations. Minimum order quantity for samples is 3 units, with a 10–14 working day standard lead time for samples, 20–25 days for bulk orders, and 1–2 day delivery for in-stock models. All motors are CE and RoHS certified, with volume discounts available for large orders.

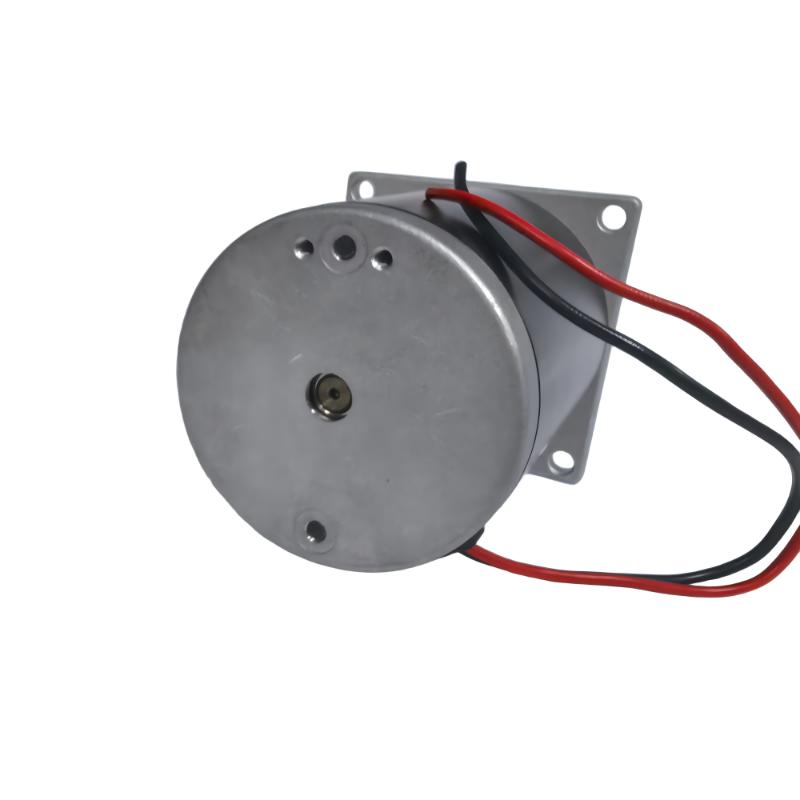

This motor features simple two-wire DC power connection, with reversible rotation by swapping positive and negative leads. It supports standard IMB5/IMB14 flange mounting, with a Φ8.0 mm output shaft for flexible coupling configuration. For optimal performance and service life, install the motor in a dry, well-ventilated environment (IP50 rated), ensure shaft alignment with the driven load, and avoid exceeding the rated torque and speed limits.
We are an ISO-certified manufacturing factory based in Changzhou, Jiangsu Province, with full in-house production, engineering, and quality control capabilities. We welcome factory visits at your convenience.
The minimum order quantity for both standard and custom samples is 3 units, with volume discounts available for bulk production orders.
All our Series 76 brushed DC motors have passed CE and RoHS certification, ensuring compliance with global industrial quality and safety standards.
Whether you are an industrial OEM designing pump or conveyor systems, a fluid system manufacturer requiring reliable drive solutions, or a transmission system integrator upgrading industrial equipment, our team delivers tailored Series 76 Brushed DC Motor configurations to match your exact performance and integration requirements. Contact us today to request a quote, order samples, or consult our in-house engineering experts.
